Motor Overview:

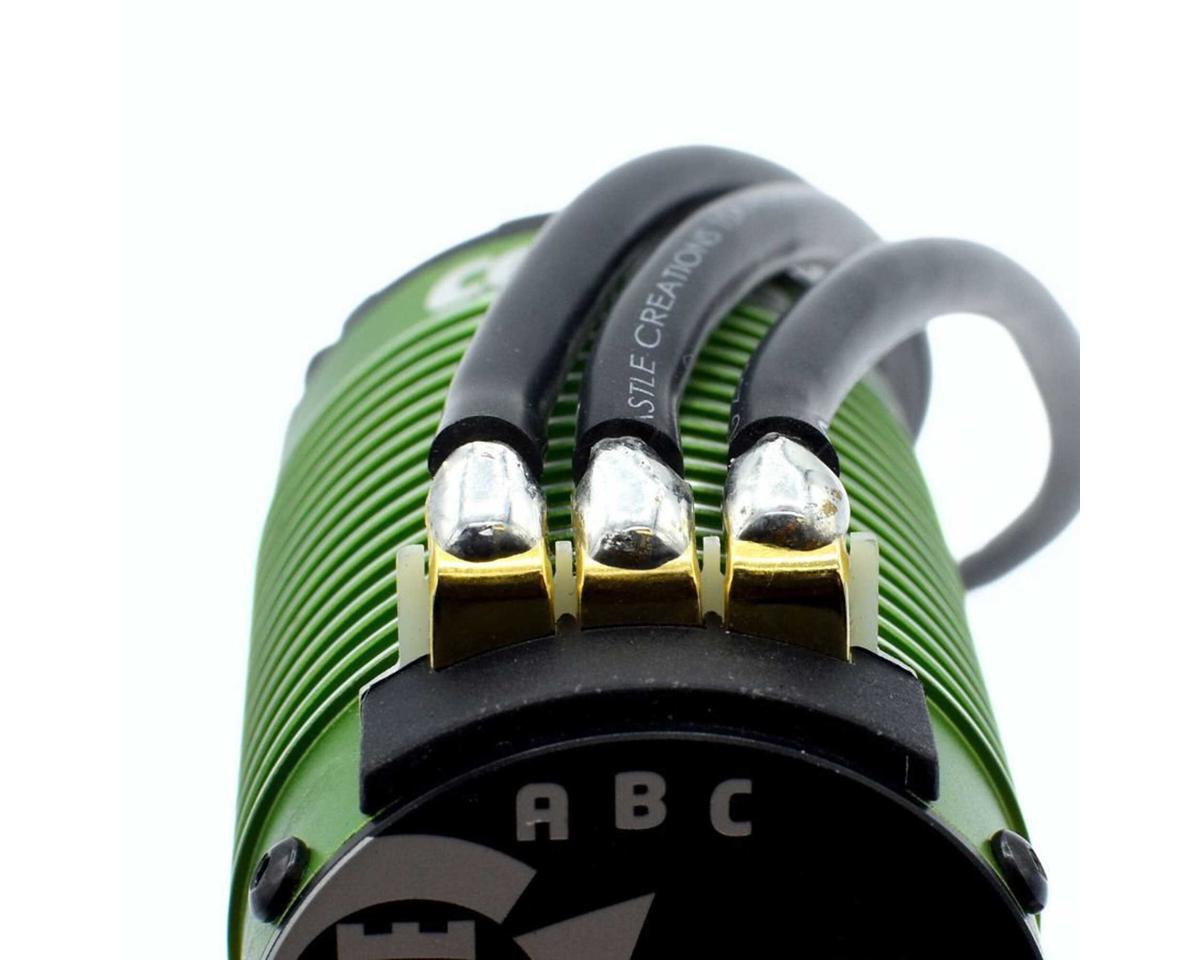

This is the 1520 V2 Sensored 4-Pole Brushless Sensored Motor from Castle Creations. Designed for powerful performance and superior efficiency, this motor features a redesigned rotor and stator for smoother startups, reduced temperatures, and extended run times. Ideal for one-sixth, one-seventh, and one-eighth scale vehicles, it is built to meet the demands of high-performance RC enthusiasts.

Features:

• Redesigned rotor and stator assemblies for enhanced magnetic flux
• Reduced magnetic cogging for smoother startups and less drag
• Kevlar-wrapped rotor and high-purity copper windings for durability
• High-temperature neodymium sintered magnets
• Backed by Castle Creations' one-year warranty

Specifications:

• Suggested Application: 1/6-1/8 (Up to 18lbs)
• Size: 1520 (1650Kv)
• Type: Brushless
• Voltage: 3-8S LiPo
• Adjustable Timing:-
• Watts:-
• Connector: 6.5mm Male Bullet
• Dimensions: 3.50x1.64in (88.8x41.6mm)
• Shaft Diameter: 0.20in (5mm)
• Weight: 17.92oz (508g)

Includes:

• (1) 1520 V2 Sensored Brushless Motor

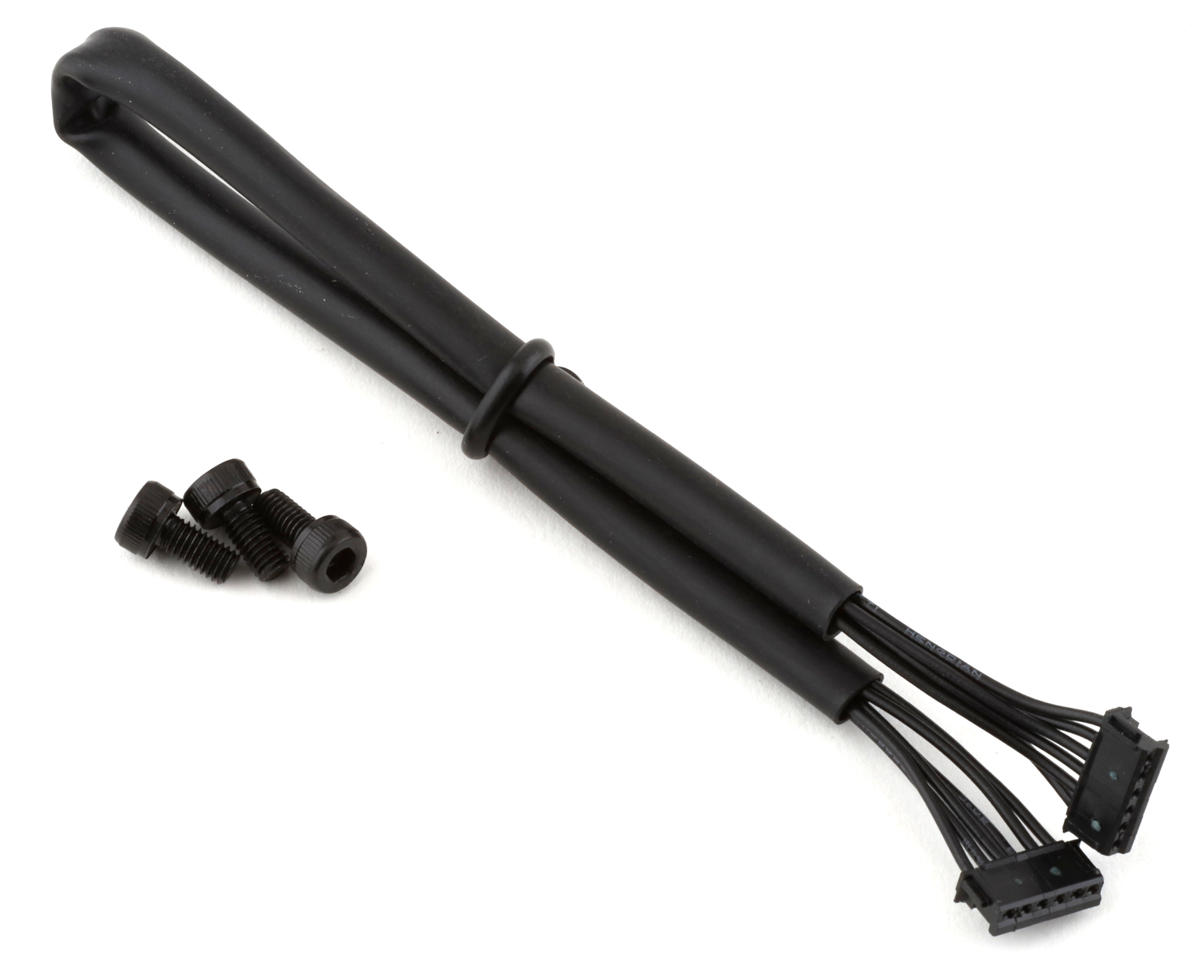

• (1) Sensor Cable
• (3) Mounting Hardware
