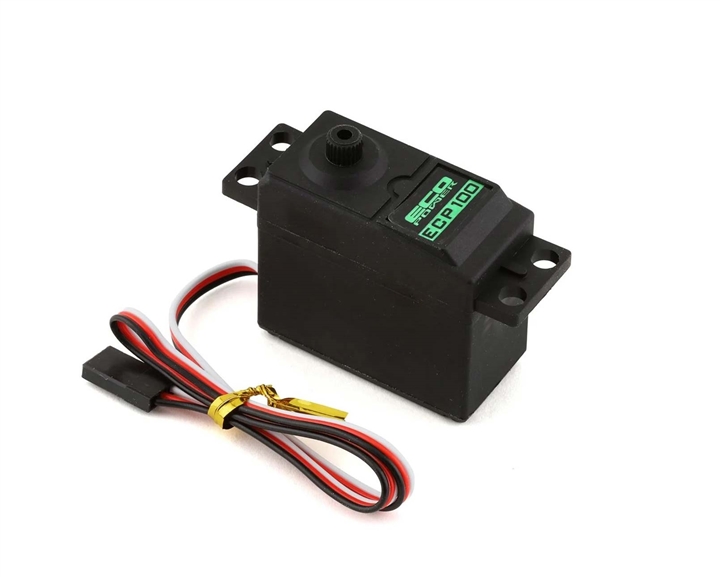

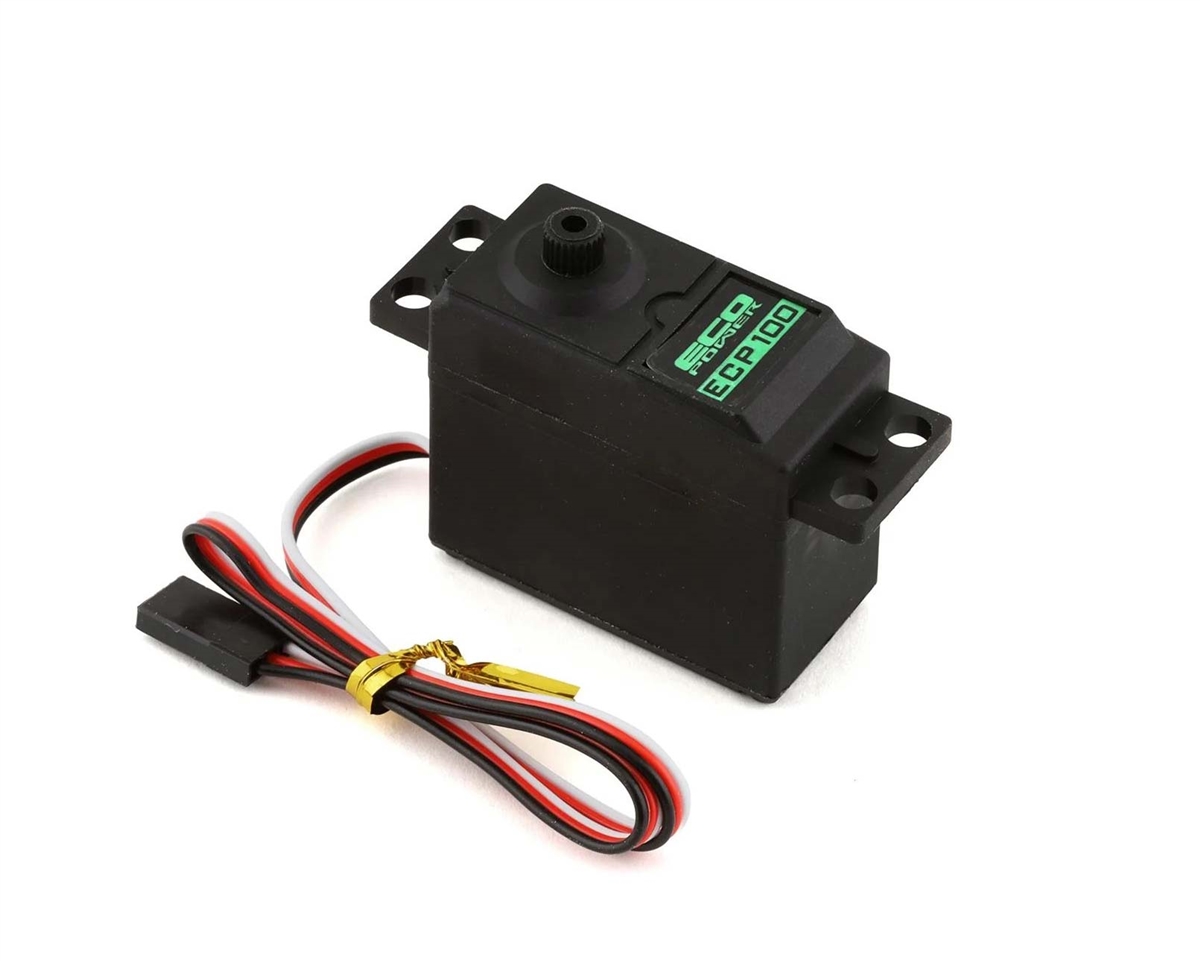

EcoPower 100 Surface & Air Standard Ball Bearing Servo 89 oz-in (6.4 kg-cm) 6V- ECP100
EcoPower 100 Surface & Air Standard Ball Bearing Servo 89 oz-in (6.4 kg-cm) 6V- ECP100

Alternative Views:
List Price: CAD$24.99
Price: CAD$19.99
Savings: CAD$5.00

Stock Status:Pre-Order

Item Number: ECP-100
Qty:

Description

The EcoPower 100 Standard Ball Bearing Servo is an excellent option when you need an affordable, light duty replacement servo. The EcoPower 100 servo has been designed specifically for light duty 1/10 vehicles or RC airplanes equipped with standard size servos. The servo features smooth ball bearing control, durable nylon gears and a long 265mm servo lead. Package includes one servo, one servo mount set, five molded servo horns and hardware.

NOTE: This servo is not designed for use with fuel-powered surface or air use.

Features:
  • Affordable option for light duty surface and air applications
  • 89 oz-in of torque @ 6.0V, and .18 transit speed
  • Digital circuitry
  • Cored motor
  • Durable nylon gears
  • 265mm servo lead

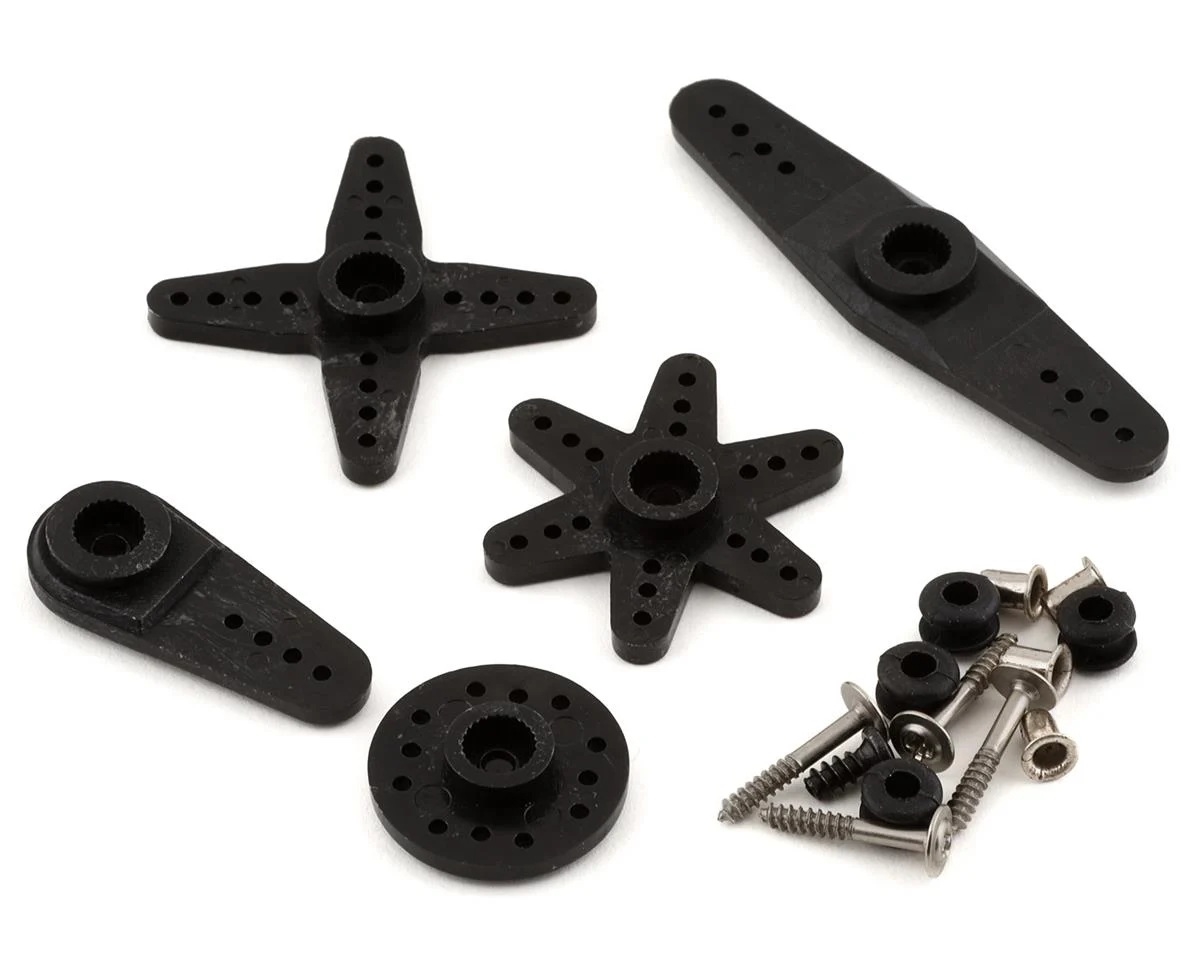

  • Includes molded star, 4 way, dual, single and round arm type servo horns and mounting hardware
  • 1 Year warranty against manufacturer defects*
*NOTE: Warranty does not cover stripped gears or damage caused by abuse.

Servo Model
100
Recommended ApplicationLight Duty Surface & Air
Waterproof
No
Operating Voltage4.8V - 6.0V
Operating Speed @ 4.8V0.2/60° sec
Operating Speed @ 6.0V0.18/60° sec
Dynamic Torque @ 4.8V62 oz-in (4.4 kg-cm)
Dynamic Torque @ 6.0V89 oz-in (6.4 kg-cm)
Motor TypeCored DC
Output Shaft25 Tooth
GearsNylon
Weight36g
Dimensions40.5x20x42.25mm (LxWxH)
