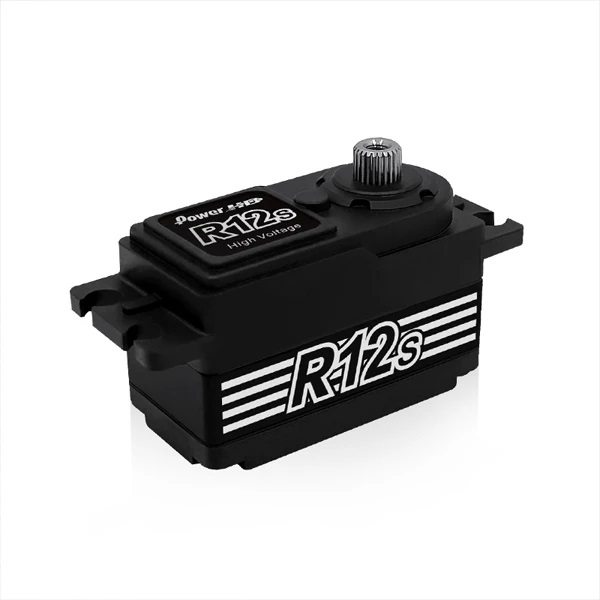

Power HD R12-S Low Profile HV Digital Servo 12.0KG [email protected], PHDR12S
Power HD R12-S Low Profile HV Digital Servo 12.0KG 0.06sec@7.4V, PHDR12S

Alternative Views:
List Price: CAD$109.99
Price: CAD$99.99
Savings: CAD$10.00

Stock Status:1

Item Number: PHDR12S
Qty:

Description

Specifications
Torque(6.0V):9.0 kg-cm (125.0 oz/in)
Torque(7.4V):12.0 kg-cm (166.6 oz/in)
Speed:0.07 sec (6.0V)
0.06 sec (7.4V)
Operating Voltage:6.0 ~ 8.4 DC Volts
Spline:25T
Case Colour:Black
Weight:48.0g (1.69 oz)
Bearing Type:Ball Bearing x 2
Motor Type:Coreless Motor

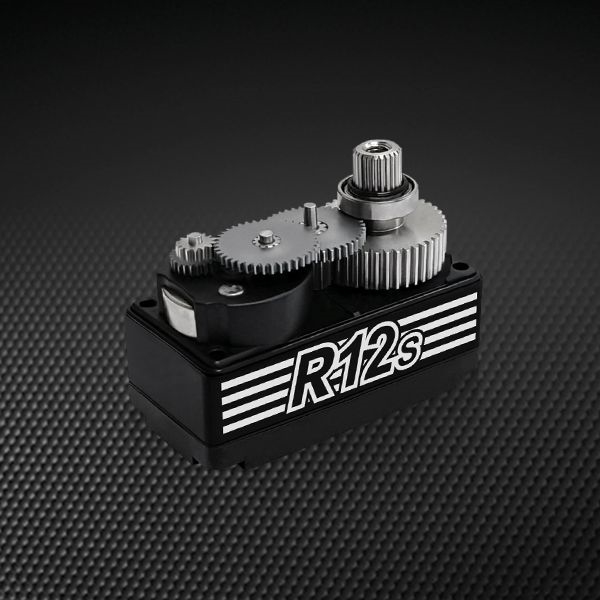

Gear Type:Titanium & Aluminum
Operating Temperature:-20°C ~ 60°C
Working frequency:1520 micro seconds / 333hz
Size:41.0x20.0x26.4mm (1.61x0.79x1.04") Low Profile
