1/14 Scale Earth Mover ZW370 Hydraulic Wheel Loader, VV-JD00069
1/14 Scale Earth Mover ZW370 Hydraulic Wheel Loader, VV-JD00069

List Price: CAD$3,499.99
Price: CAD$3,399.99
Savings: CAD$100.00

Stock Status:Pre-Order

Availability: Contact for ETA
Item Number: RC4VV-JD00069
Qty:

Description

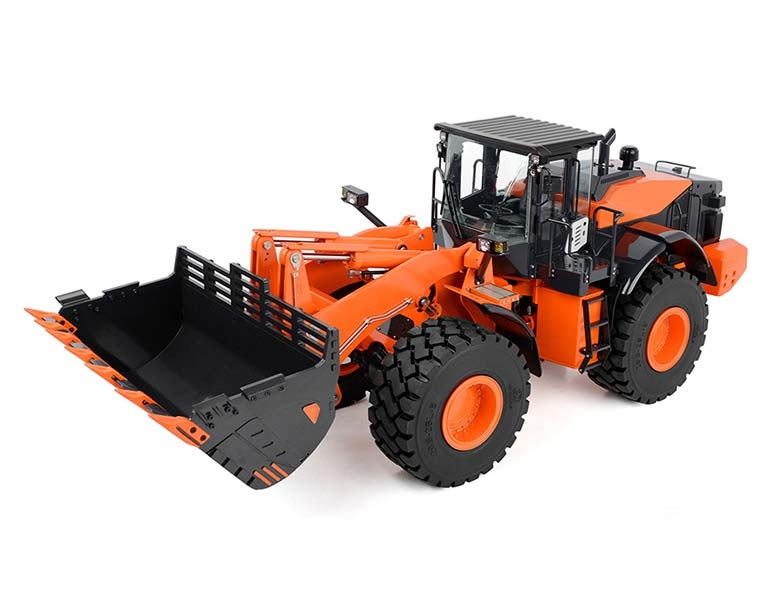

1/14 Scale Earth Mover ZW370 Hydraulic Wheel Loader

Payment Information: Due to the value of this product, the only forms of payment that will be accepted are Affirm and Bank Transfer. Please do not choose Credit Card or PayPal when checking out as we will cancel the order. Feel free to email us at [email protected] if you have any questions.

Important Note: Due to the size and weight of this product, this product has to be shipped in its own container. It will be shipped only by Expedited Shipping Service (5-8 days), this requires an extra shipping surcharge of $300 to ship anywhere in the US and all international countries due to the size and weight. While this surcharge should cover shipping fees to most international countries, there may be some situations where the shipping fee may be higher. In the event that this happens, we will reach out to you and provide you with additional details. You may also email [email protected] before you place your order to request a shipping estimate to your shipping address.

Please note that the customer is responsible for any additional fees and charges that may be incurred based on their country's clearance and tax policies. Also, the product is subject to delays while going through customs.

Notice: This product is for experienced RC hobbyists. This is not recommended for anyone under the age of 16.




Specifications:
  • CNC Machined Metal Parts
  • Molded Steel Bucket
  • 10 Channel 2.4Ghz Radio
  • Optimized Steel Hydraulic System
  • Scale Operator Station (can fit a driving figure)
  • 137MM Model Special Tires
  • Reliable Hydraulic Valve and Adjustable Pump
  • High Pressure Nylon Hoses (OD 4.5mm , ID 2.5mm)
  • Powder Coated in Orange
  • Brushless System (hydraulic)
  • 40A Brushless ESC with BEC
  • 270KV Brushless Monster Torque Motor
  • Realistic Non Functional Disk Break
  • Wheel with Planetary Gearbox Built-in
  • 2 Speed Full Metal Transmission (1:64 and 1:16 gear ratio)
  • Realistic Full Metal Axles
  • Run Time is: 30 minutes (5000 mAh Battery)
  • LiPo Cutoff
  • Scale: 1:14
  • Length: 27.9in / 710mm
  • Width: 9.84in / 250mm
  • Height: 10.5in / 268mm
  • Wheel Base: 9.92in / 252mm
  • Maximum Bucket Height: 18.1in / 461mm
  • Operating Oil Pressure: 3.50 Bar, 50.75 psi
  • Maximum Bucket Up and Down Angle: 46 to 64 degrees
  • Maximum Bucket Left and Right Angle: 38 degrees
  • Maximum Bucket Force: 40kg / 88lbs
  • Dead Weight: 16.5kg / 36.3lbs
  • Total Mass Load: 32kg / 70lbs
  • Theoretical Rise: 15kg (Boom Lift).Theoretical Traction: 30kg
  • Hydraulic Pump: Flow 0.8 L / MIN, Rated Pressure 2.5 MPA Ultimate Pressure 5 MPA


























Note: The valve of the new driveshaft has improved and compared to the old one (VV-JD00031), it's more dynamic and twice as fast on front and rear movements. In addition, an oversized joint to the current joint strengthens and extends service life.



What's Included:
  • 1x 1/14 Scale Earth Mover ZW370 Hydraulic Wheel Loader

Required Parts:
  • 5000mAh 11.1V 50C 3S1P LiPo Battery Pack with XT60 Plug (Battery size must be no bigger than 140mm in length, 45mm in width, and 25mm in height)
  • Compatible Battery Charger
  • 4x AA Batteries for Radio
  • (Z-X0042) AW ISO 32 Hydraulic Oil 14oz

Instruction Manual:

Notes:
  • While some components may come assembled, we recommend checking the hardware and screws are all properly secure, especially after shipping. As an option, you may want to apply thread lock to some of the installed hardware.
  • ESC Supports bullet Connector
  • Use good quality hex drivers to avoid stripping screw heads.
  • Use thread lock when putting metal screws into metal parts.
  • Battery Size should be within 140x45x25MM (LxWxH)
  • This JDM Product ships in carton packaging
  • The transmission shaft adopts the latest constant angular speed double transmission shaft, which makes the power transmission smoother (Our website videos will complement this content).
  • The valve is an upgraded version, which is more than double the response and controllability of the old model.
  • This Product Is Professionally Pre-Assembled.
  • Manufactured by JDCustoms 30 Days Limited Warranty
