Skywing RC 73" LASER 260 Plus-A (Red) ARF
Skywing RC 73" LASER 260 Plus-A (Red) ARF

Price: CAD$899.99

Stock Status:Pre-Order

Availability: Contact for ETA
Item Number: SKW73LASER260AR
Qty:

Description



ProductInformation

1. Advancedconstruction for today's demanding pilots

2. Fastassembly time with pre-hinged and pre-sealed ailerons and elevators

3. Factoryassembled detailed canopy interior

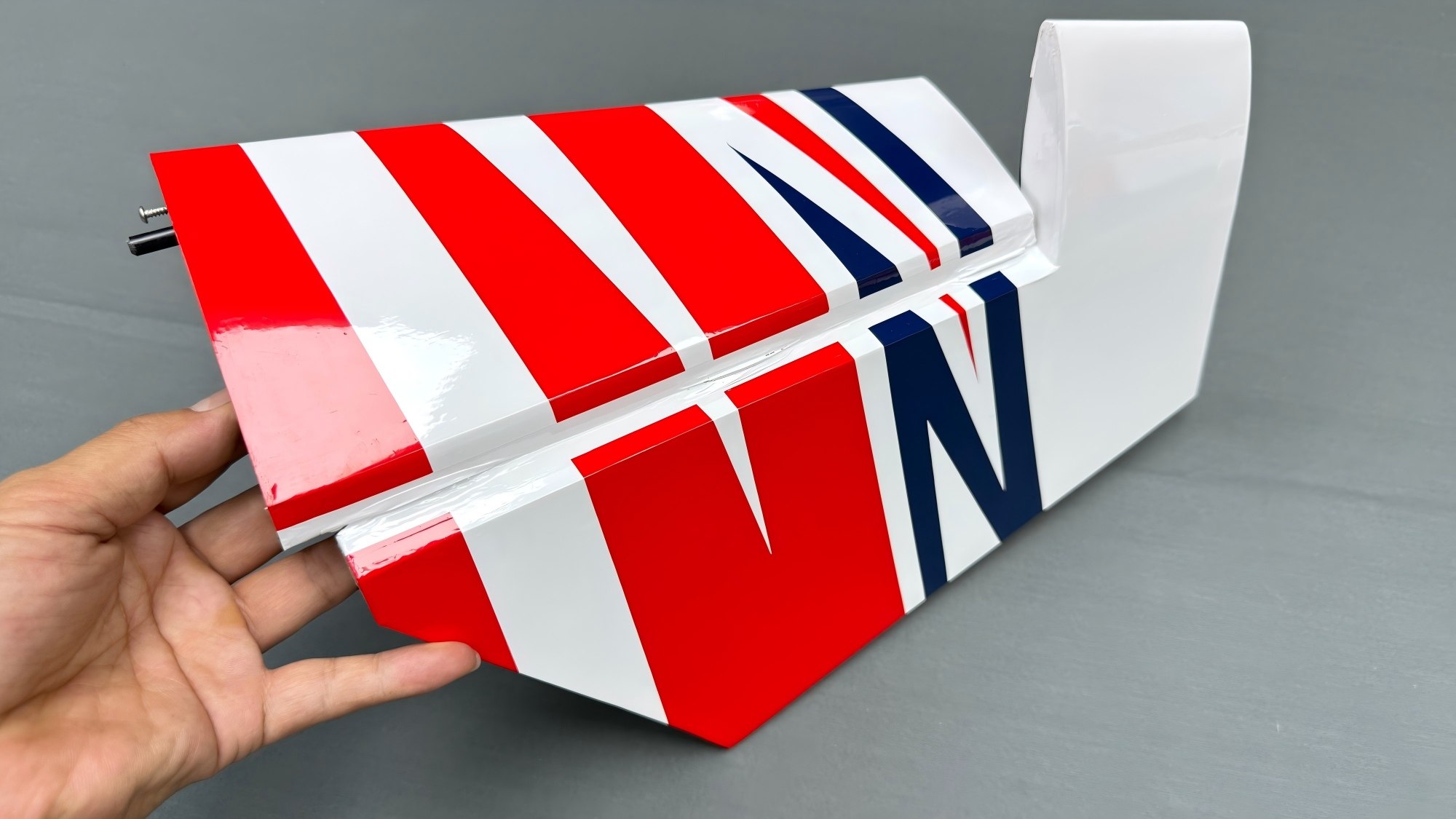

4. Removablerudder with single pin assembly

5. Incrediblevalue NOW WITH MATCHING SPINNER, pilot doll，fuel tank, fuel line, fuel and vent dot, wingand stab bags, as well as preinstalled high quality extensions.

6. cowl prefabricated cooling baffl

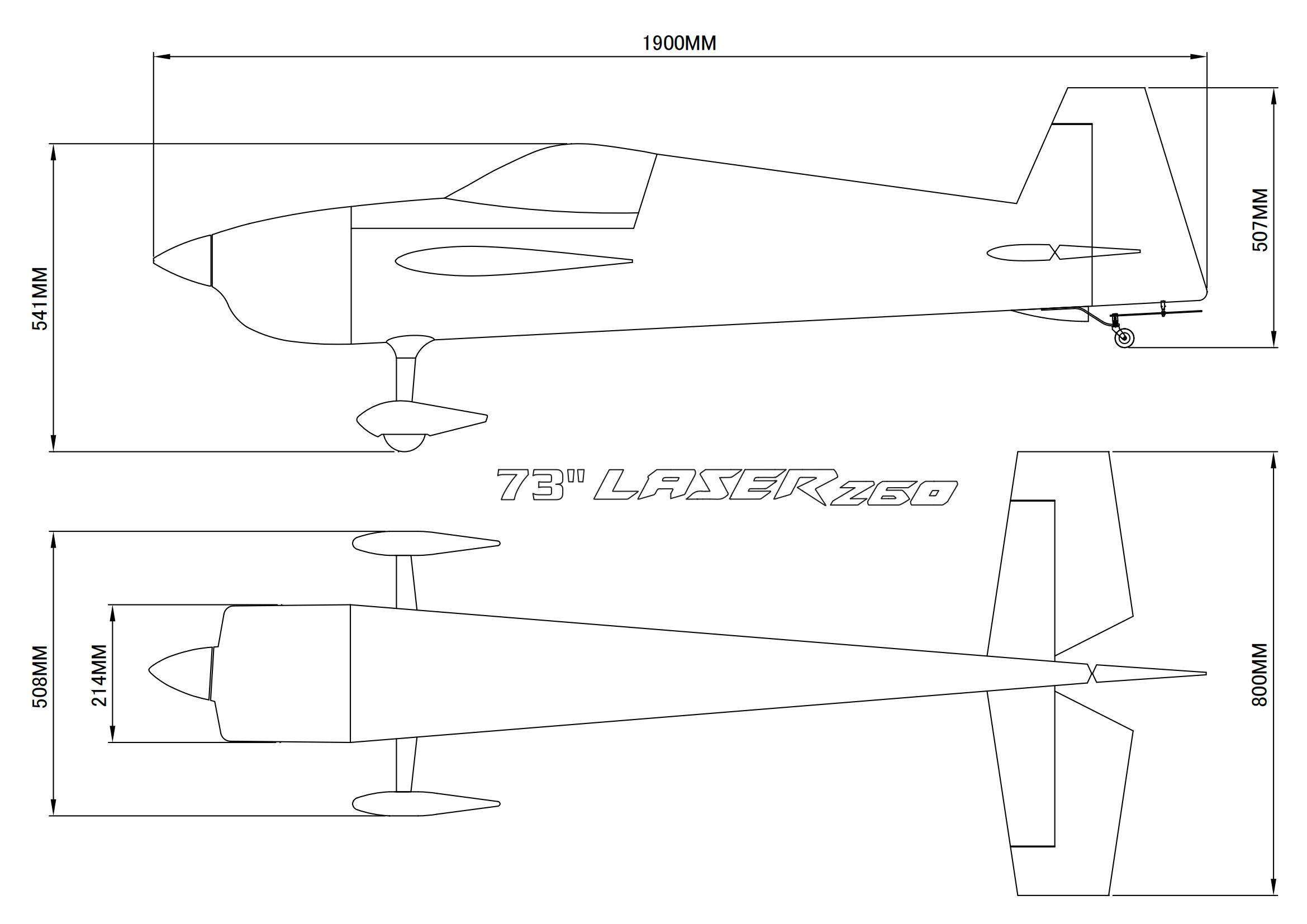

PRODUCT DATA(产品数据)

Wingspan（翼展）; 73in./1850mm
Lenqth（机身长）; 74.8in./1900mm
Wing Area（翼面积） ; 1046.25sq in/67.5dm²
Weight（飞行重量）; 油Gasoline settings; 11.4 lbs/5.2kg 电Electric setting:11.02 lbs/5.1kg（6S/3700mah*2pcs)


Packaging Size（包装尺寸）;148*57*31cm

Weight（包装重量）;11kg


Test device（工厂测试设备）：

【engine 发动机】：GP38

【Servos 伺服】：Elevator 升降(sw989hv*2） Aileron 副翼 Rudder 方向（THETA/THL398hv*3)

【Propellor 桨】：19 *8

【power supply 电源】：2S-2200mah *1

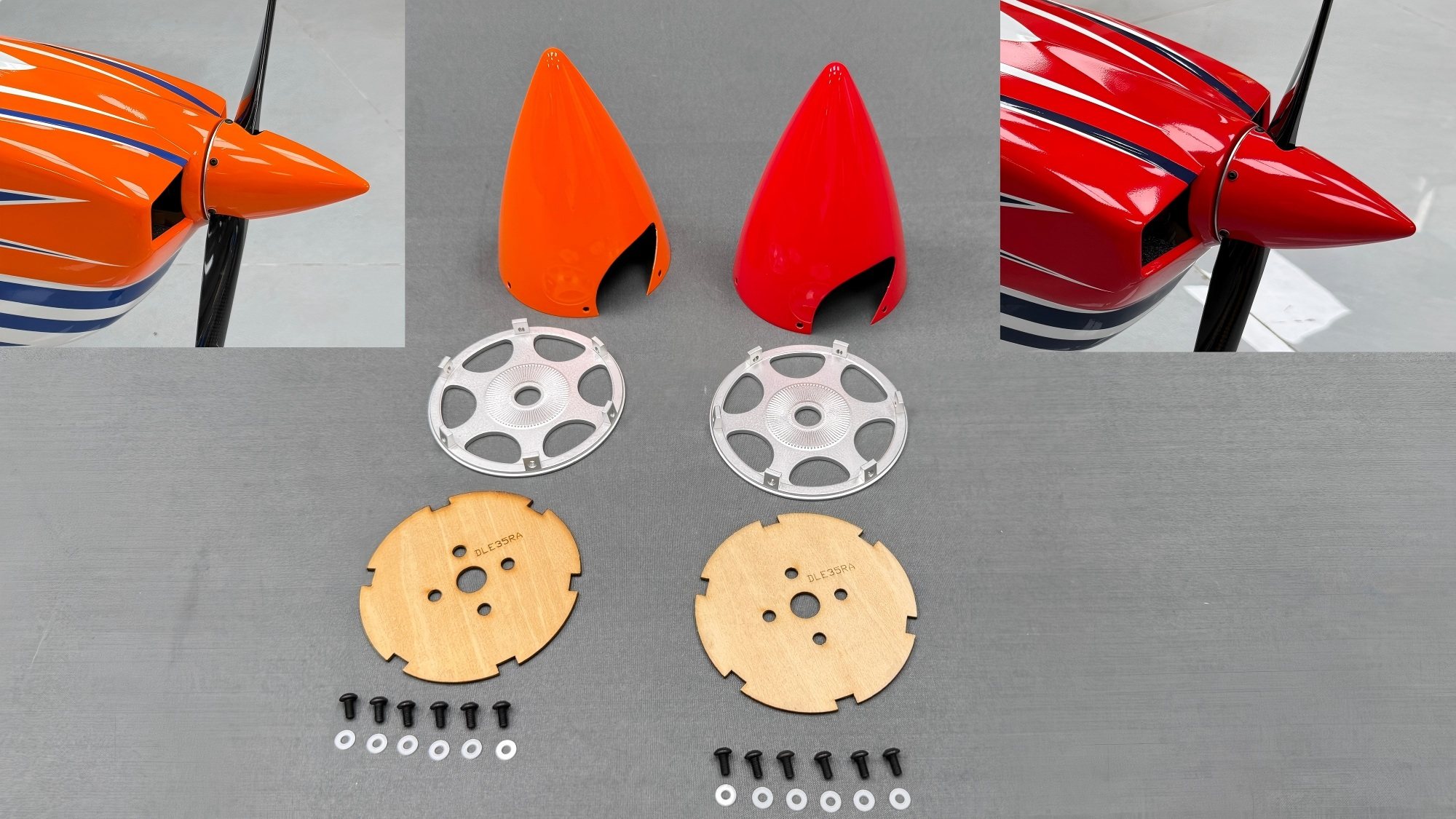

【spinner 整流罩】：3”（76mm)

【servo arm 摇臂】：Elevator 升降=1.5" *2 Aileron 副翼=1.5" *2 Rudder 方向=3.0" *1 dual servo arm 中置双向


Test device（工厂测试设备）：

【Motor 电机】：dualsky GA3500R-KV200

【ESC 电调】：Hobbywing Flyfun-110A-HV-SBEC-V5

【Servos 伺服】：Elevator 升降(sw989hv*2 ） Aileron 副翼 Rudder 方向（THETA/THL398hv*3 )

【Propellor 桨】：20*10

【power supply 电源】：6S-3700mah *2

【spinner 整流罩】：3”（76mm)

【servo arm 摇臂】：Elevator 升降=1.5" *2 Aileron 副翼=1.5" *2 Rudder 方向=3.0"(dual servo arm 中置双向 *1）


REQUIRED:

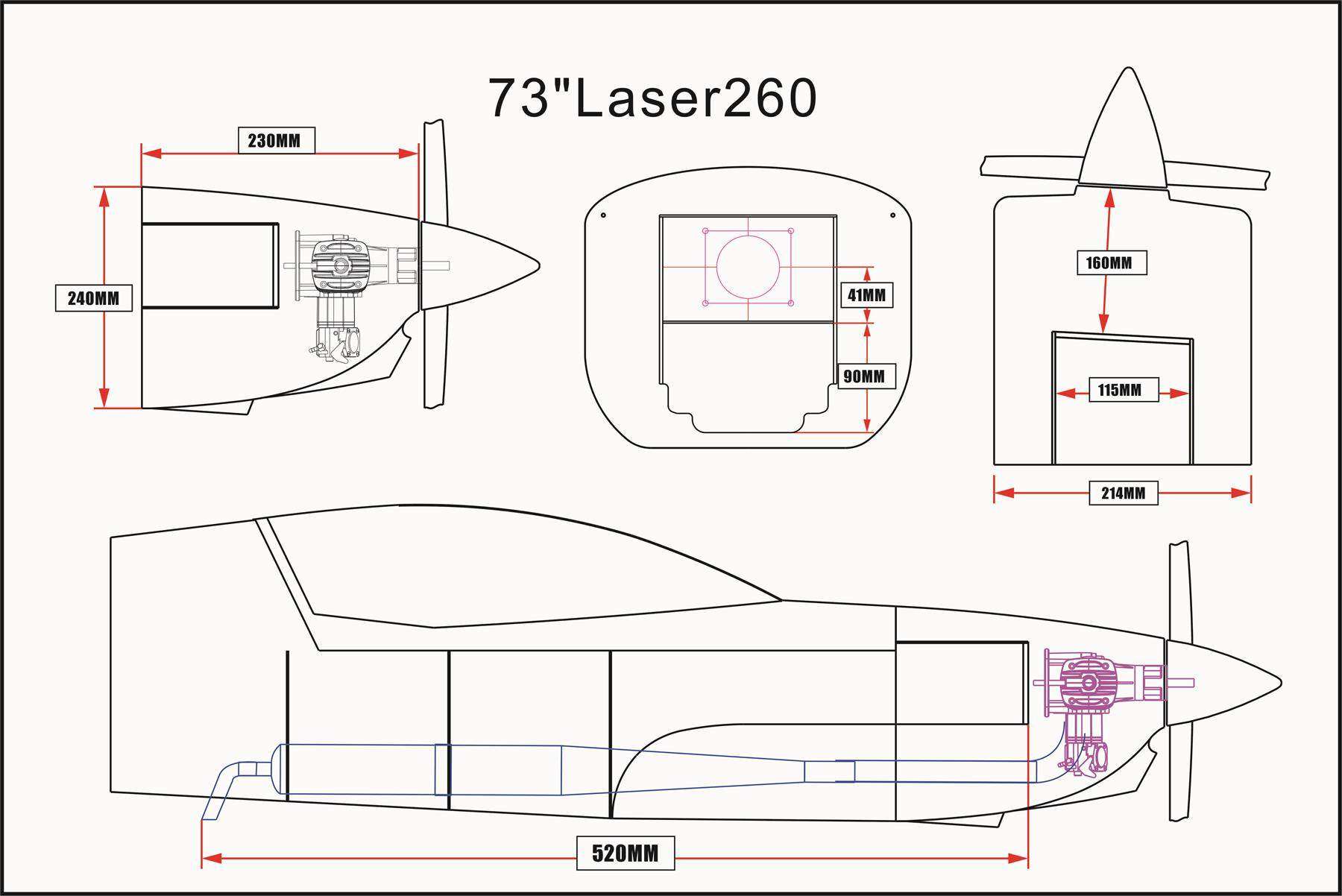

1) 30-40cc Gas Engine*1pcs
2) Carbon Propeller (20x8, 20x9, 20x10)*1pcs
3) Digital High Speed Throttle Servo*1pcs
4) Digital High Torque Metal Gear Servos 40*20mm/25kg*3pcs 35*15mm/10kg*2pcs
5) 6" Extensions - aileron Throttle servos*3pcs
6) 1.5" Arms - tapped for 3mm hardware (ailerons x 2, elevator x 2)
7) 3" Double sided arm - tapped for 3mm hardware (rudder in push/pull config.)

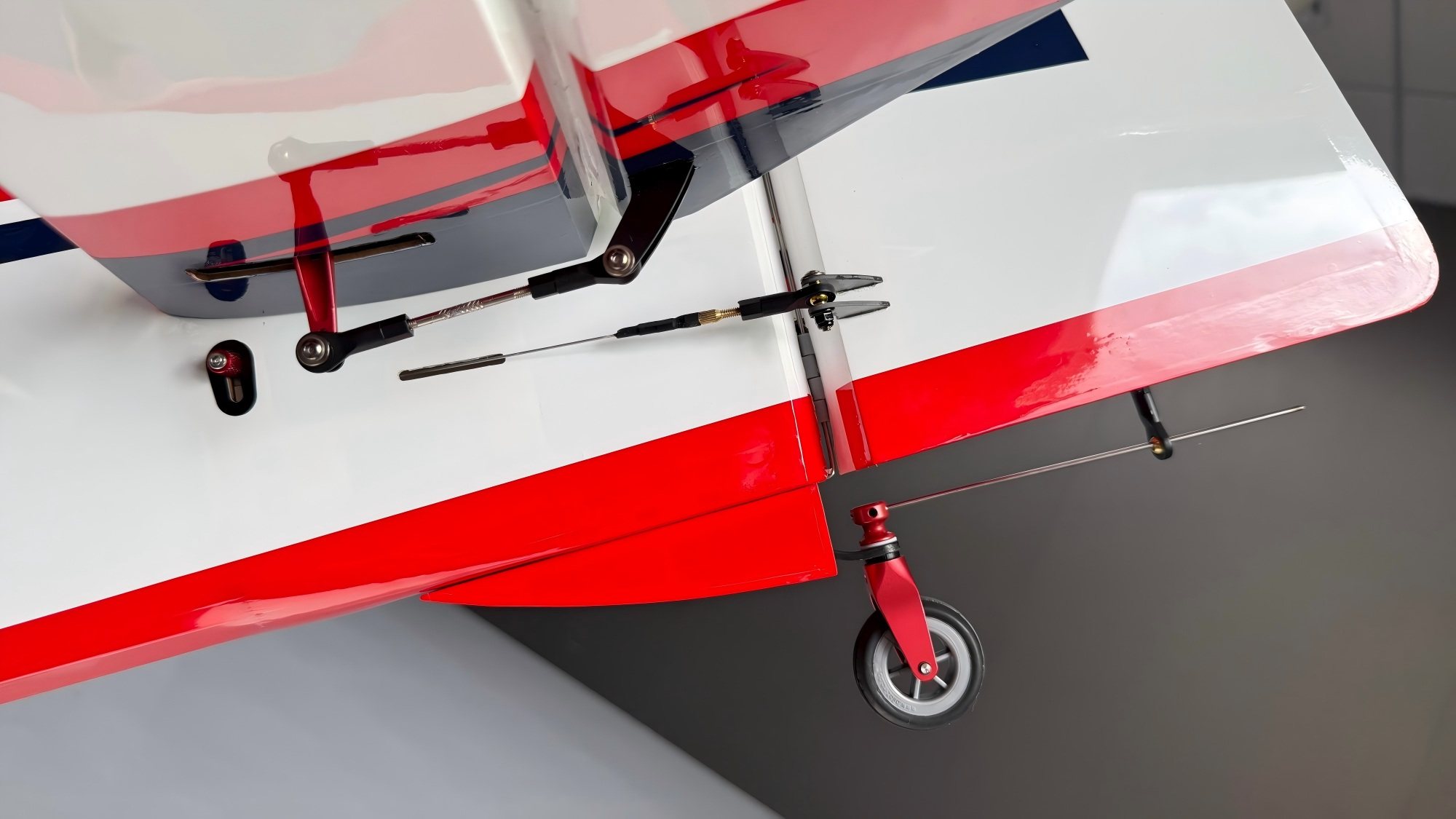

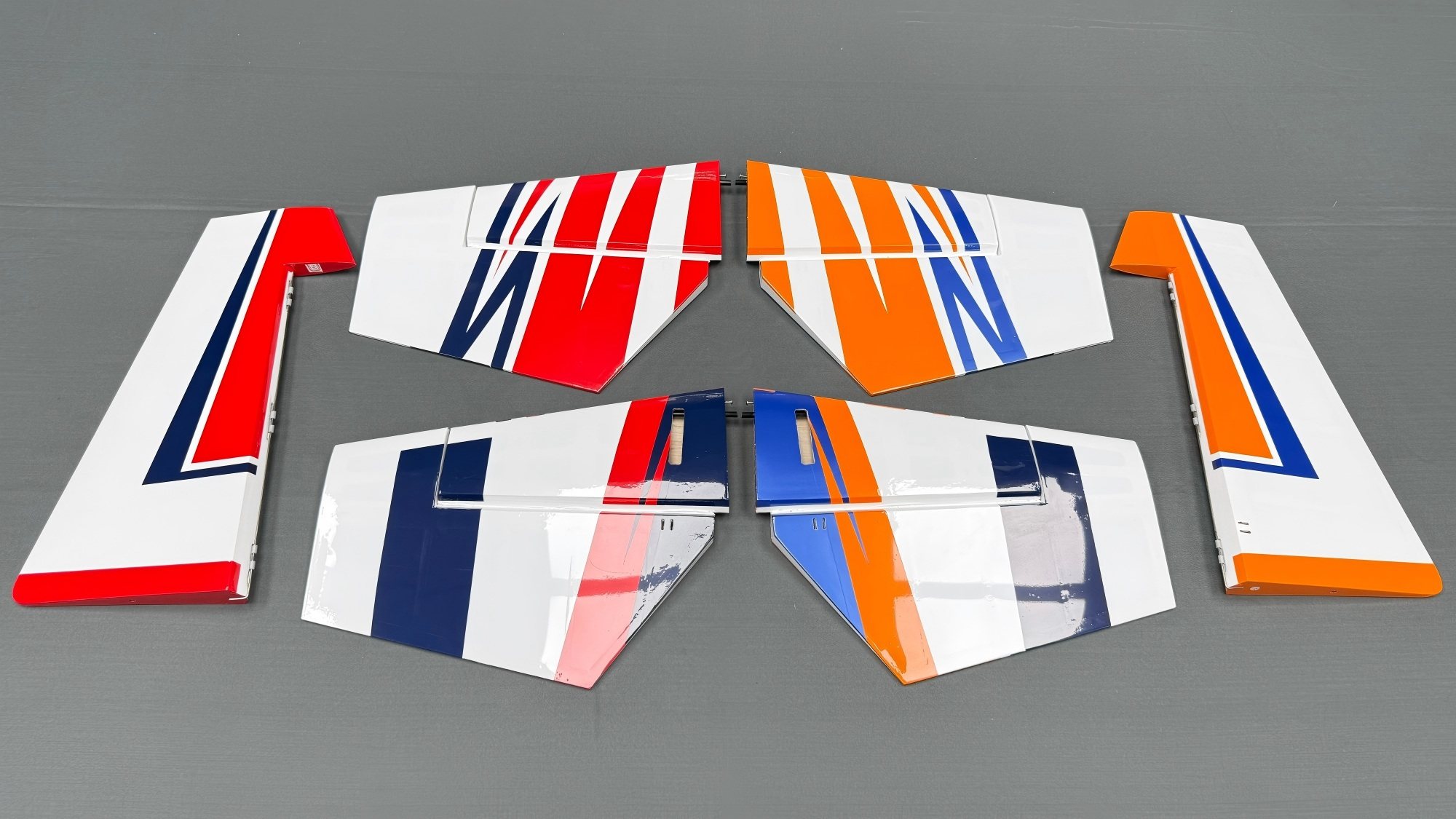

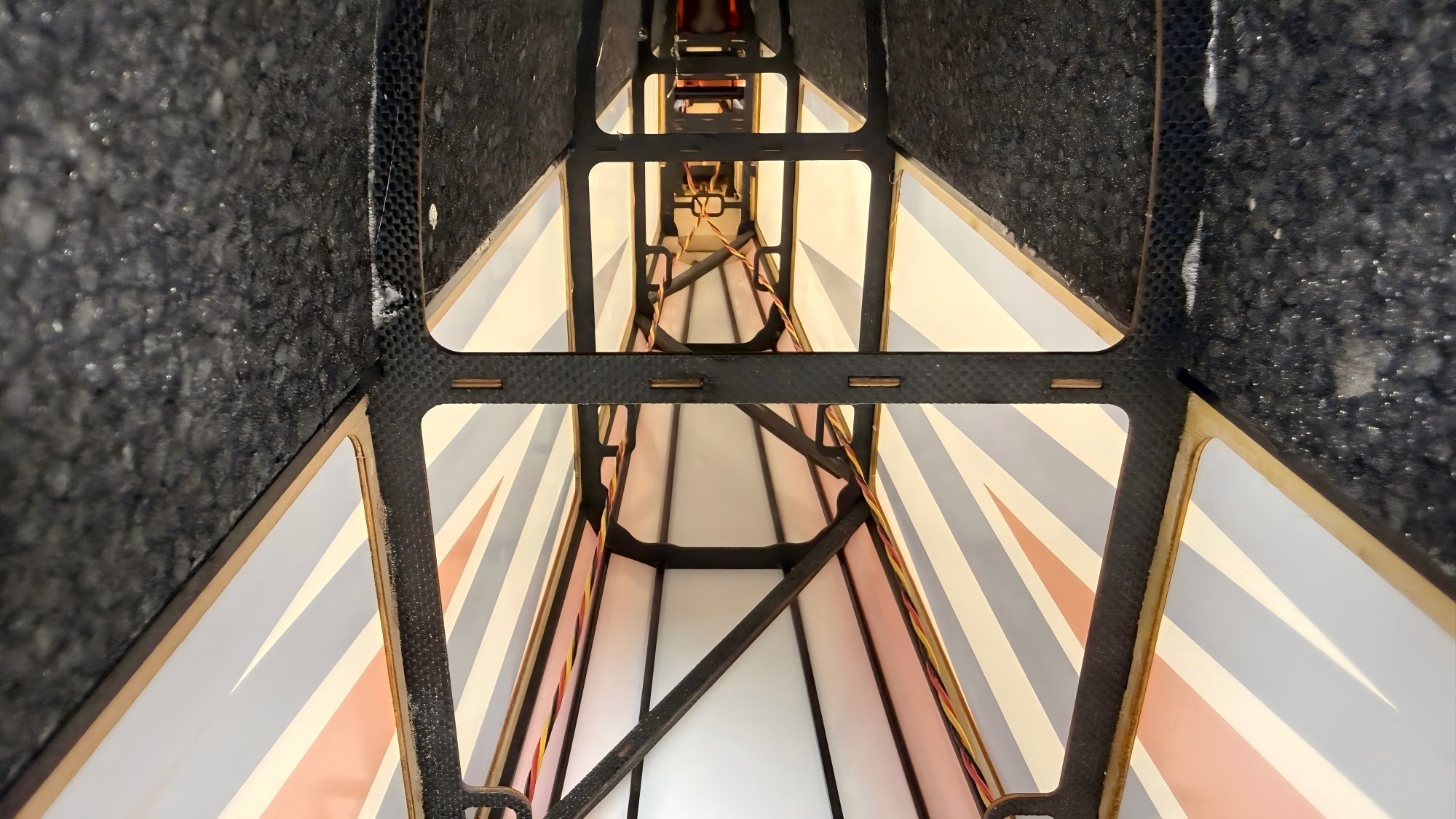

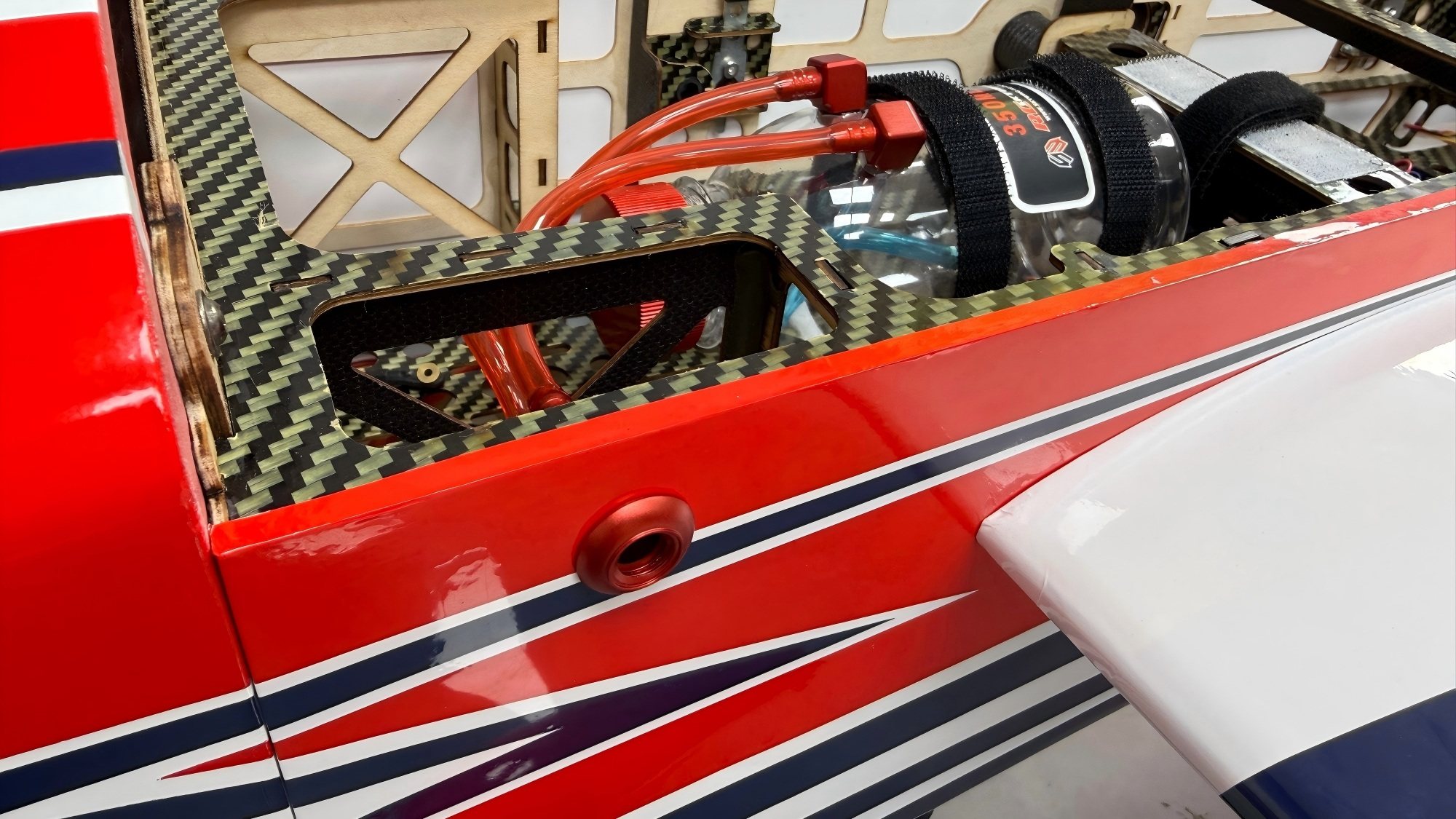

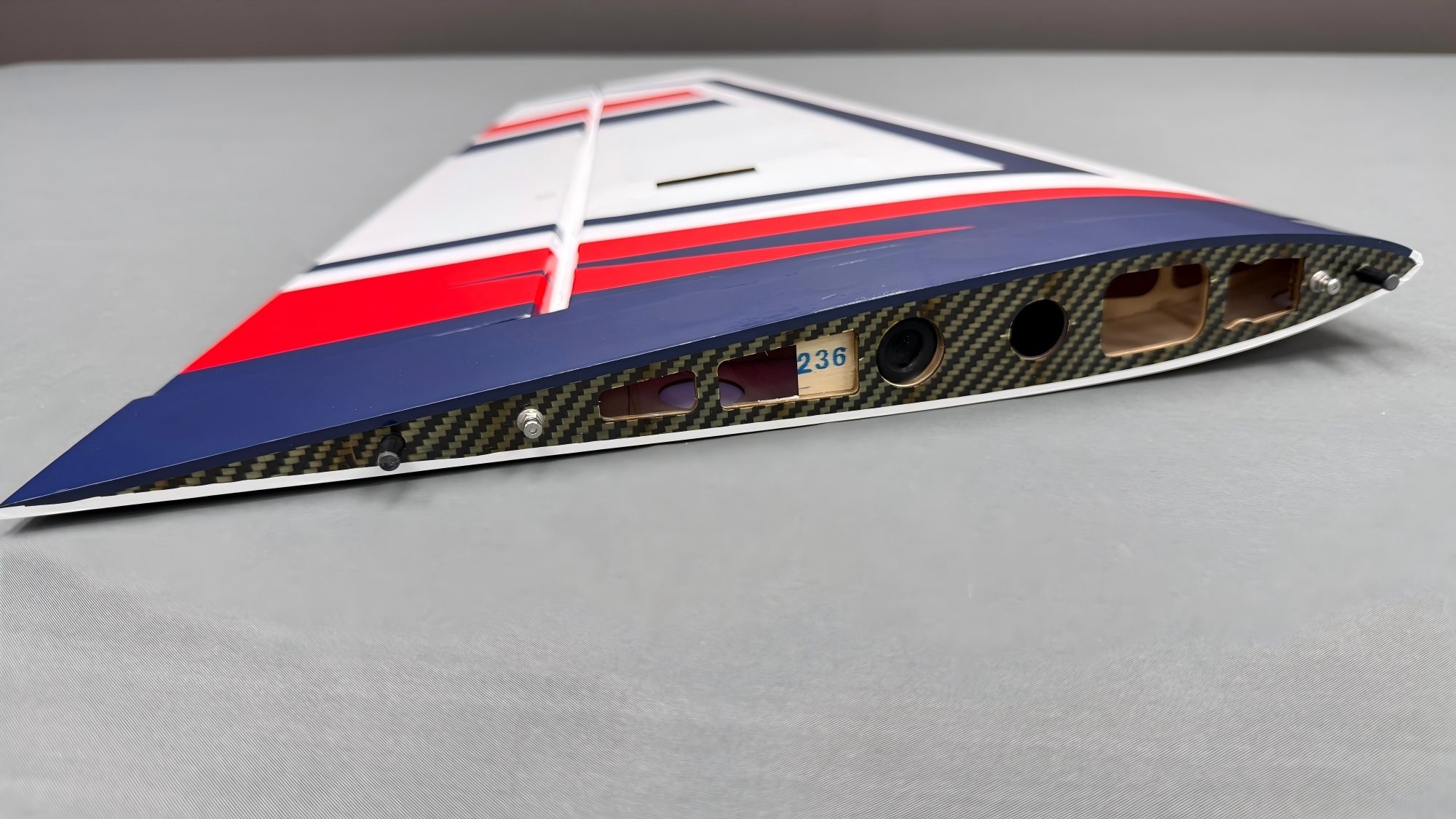

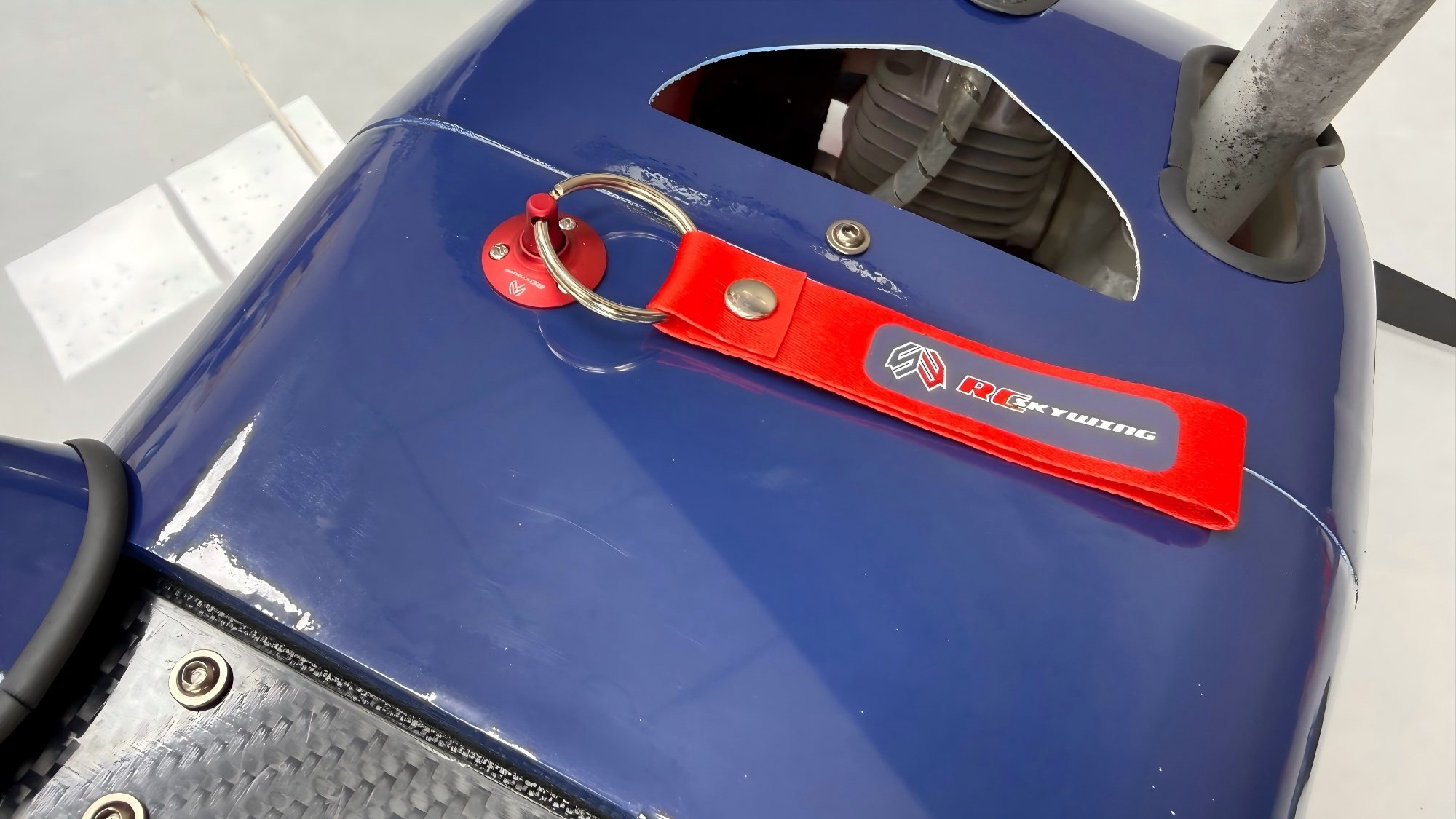

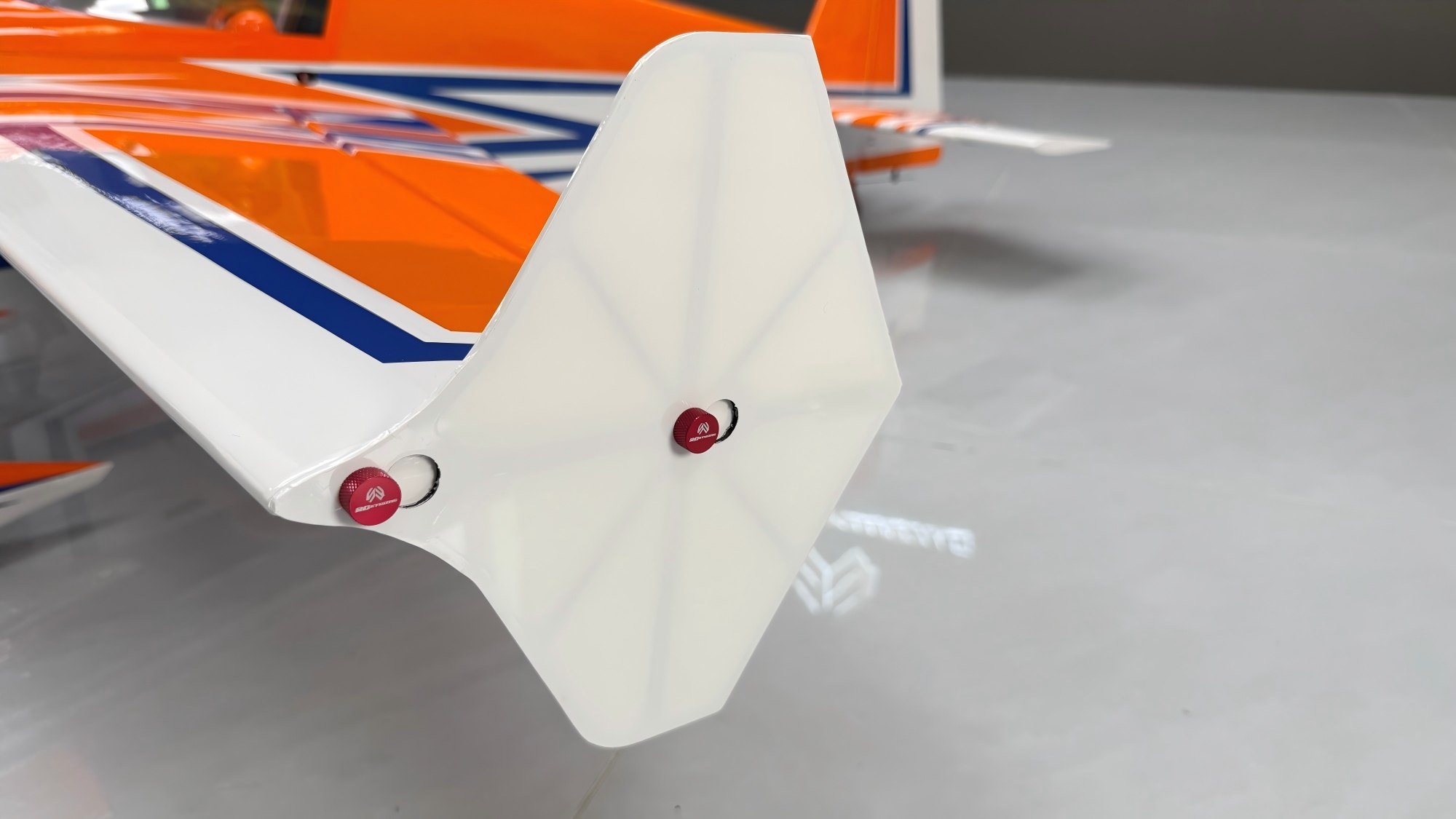

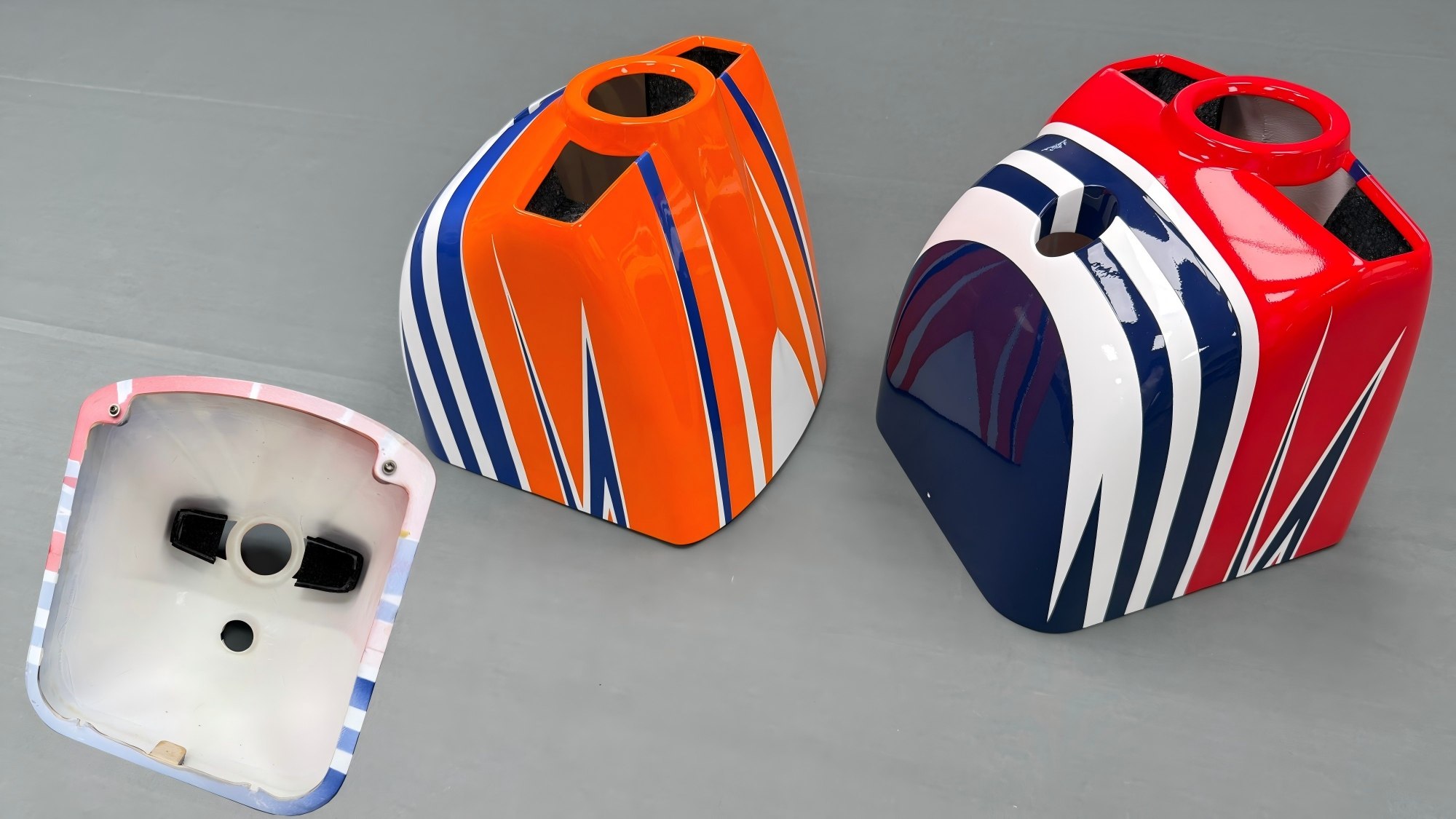

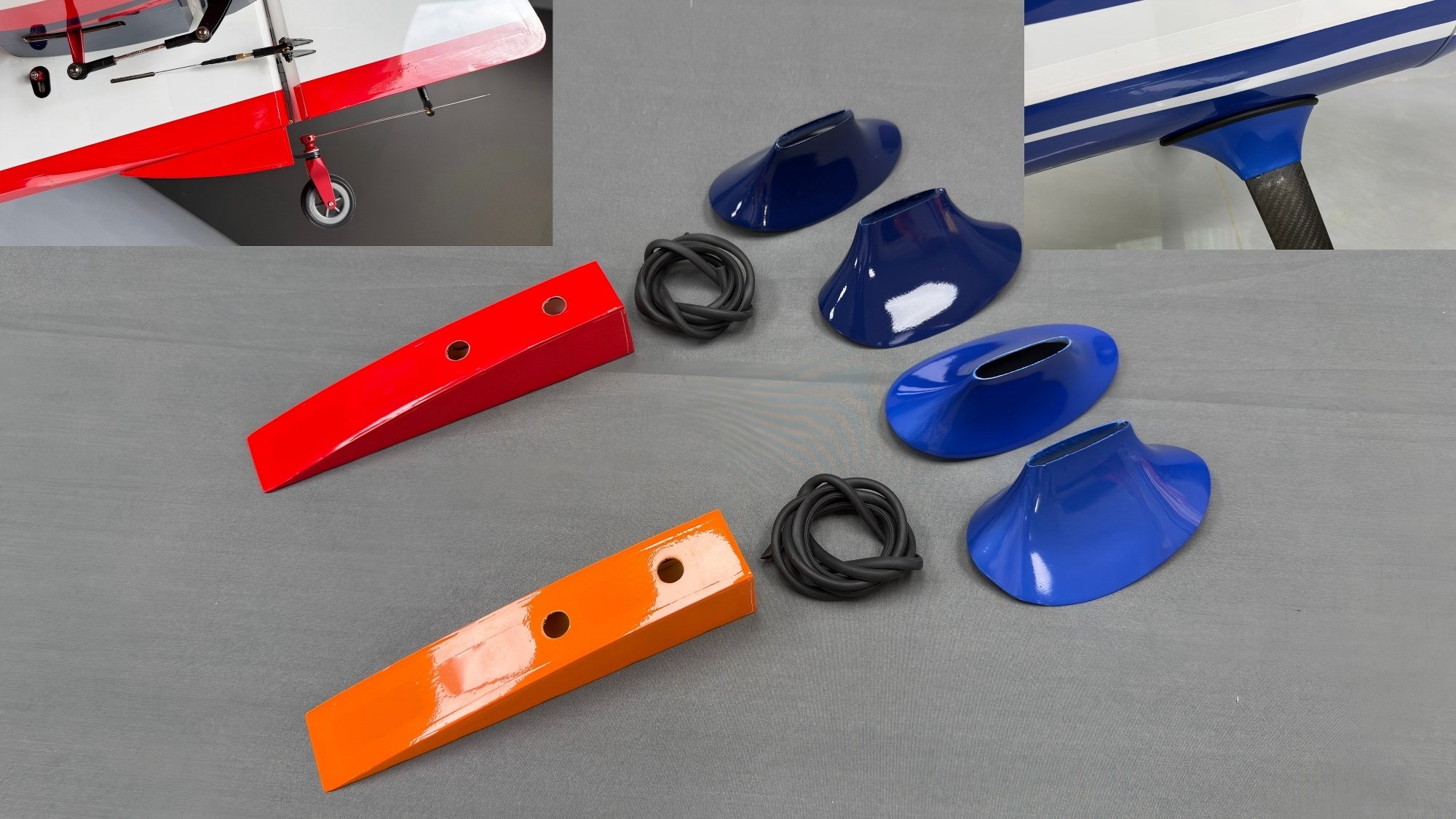

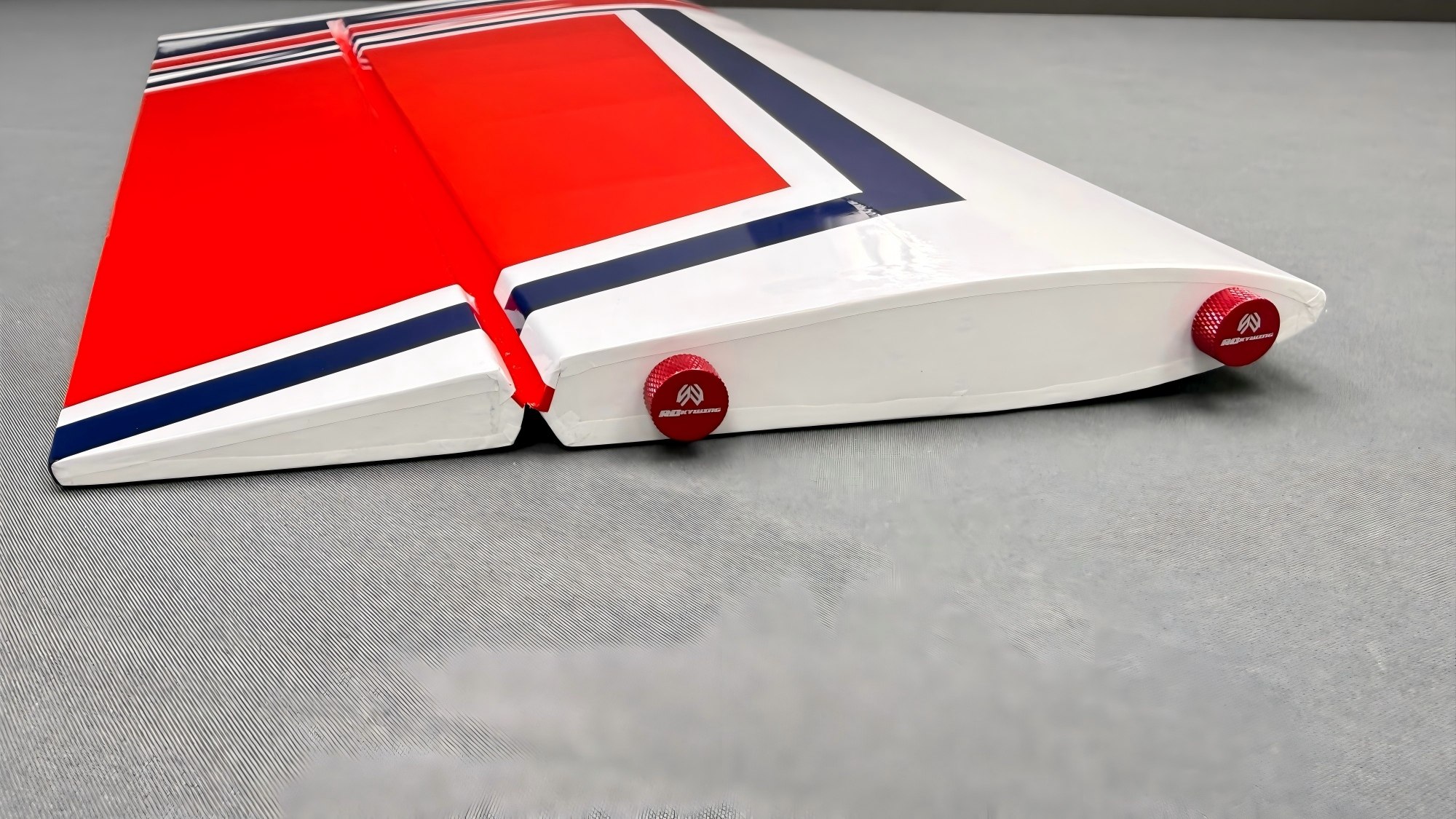

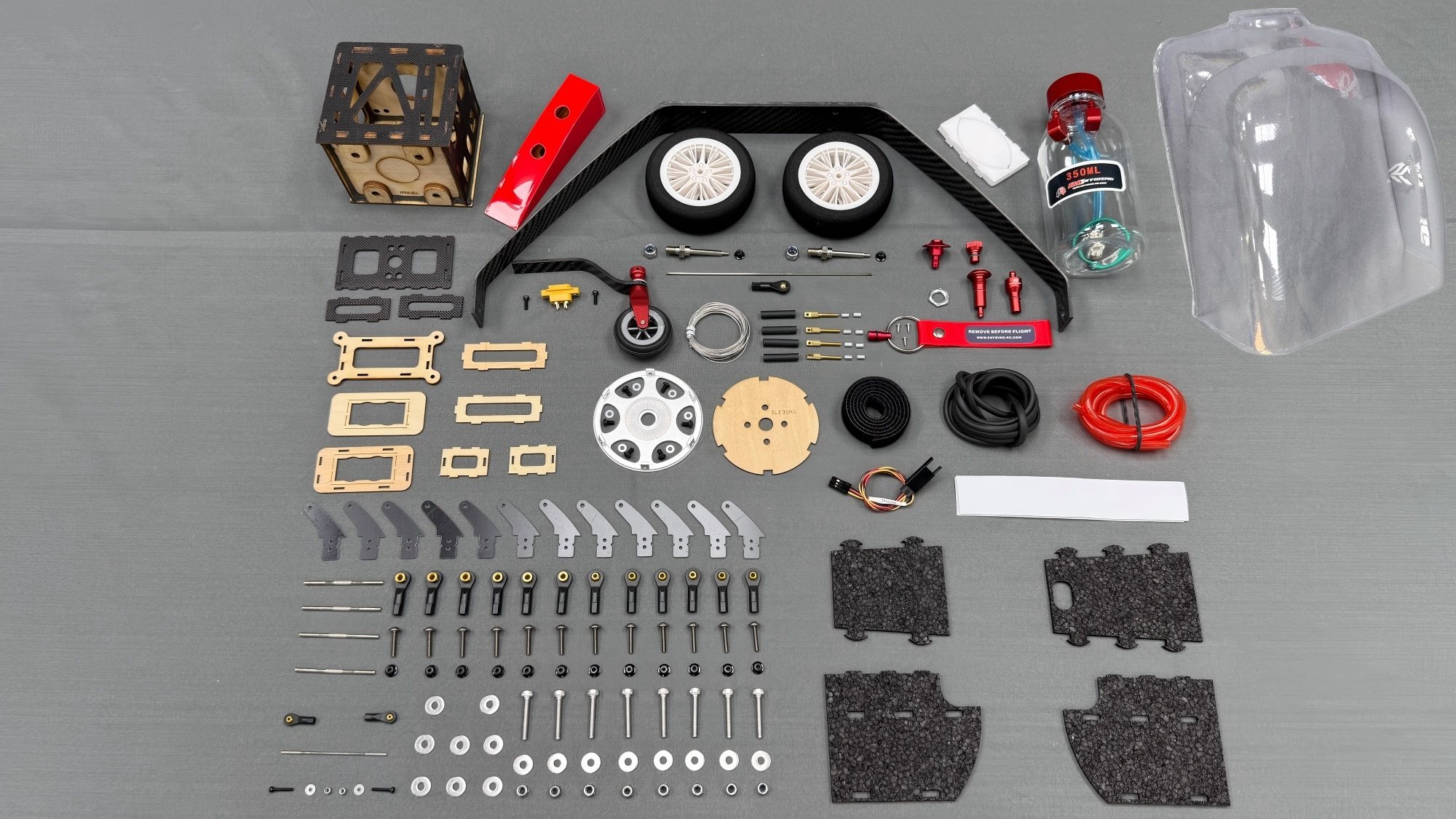

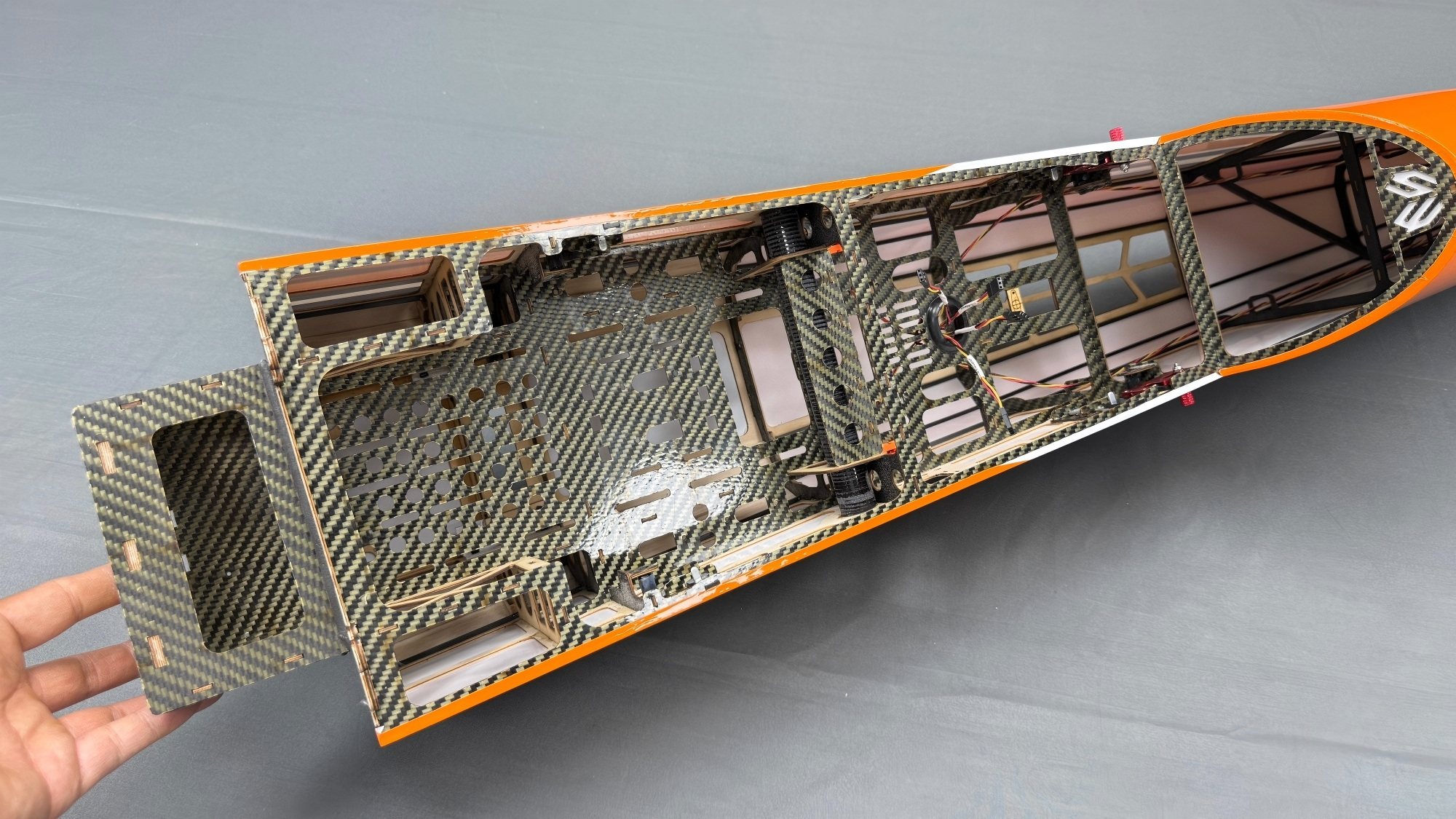

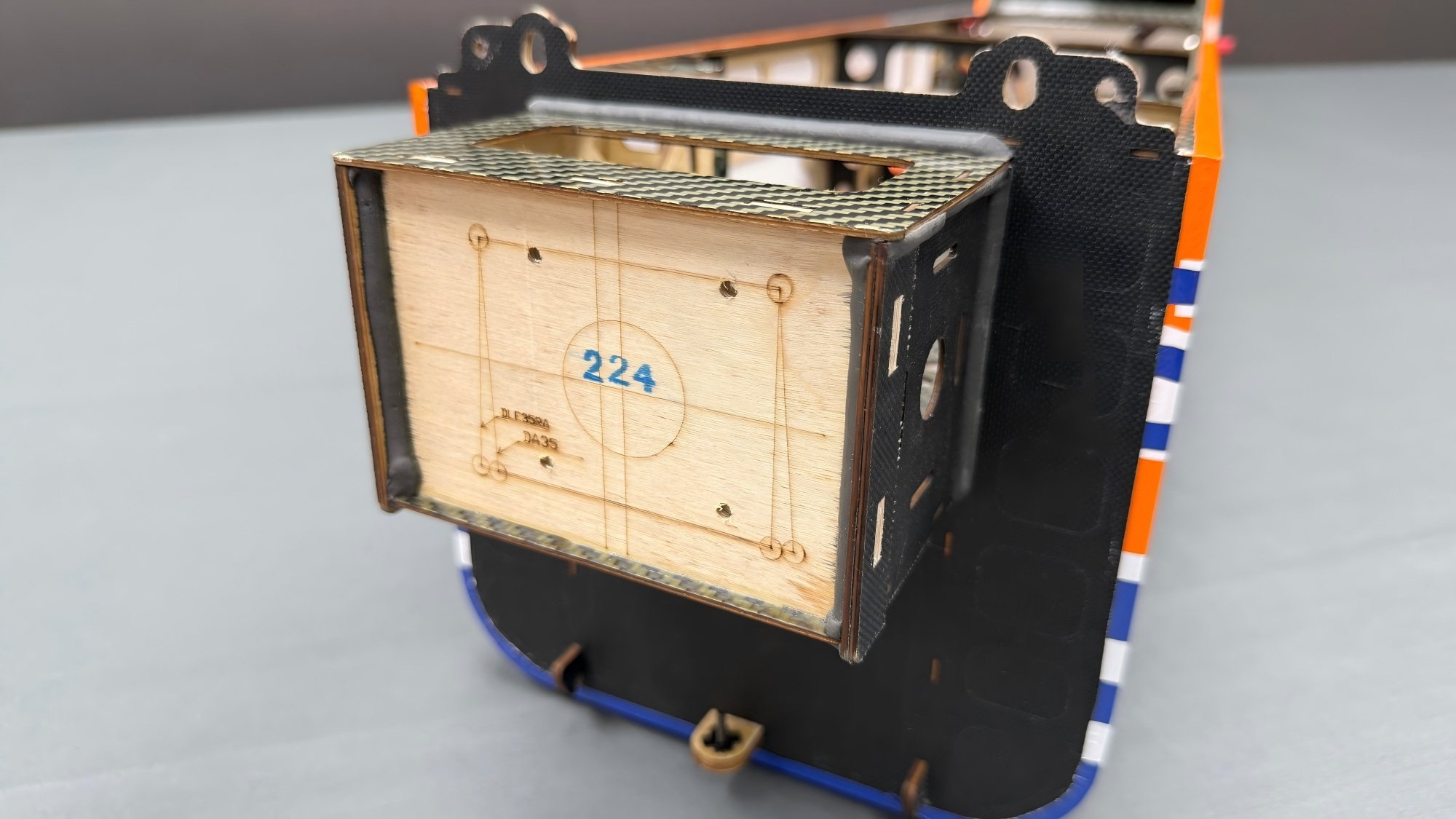

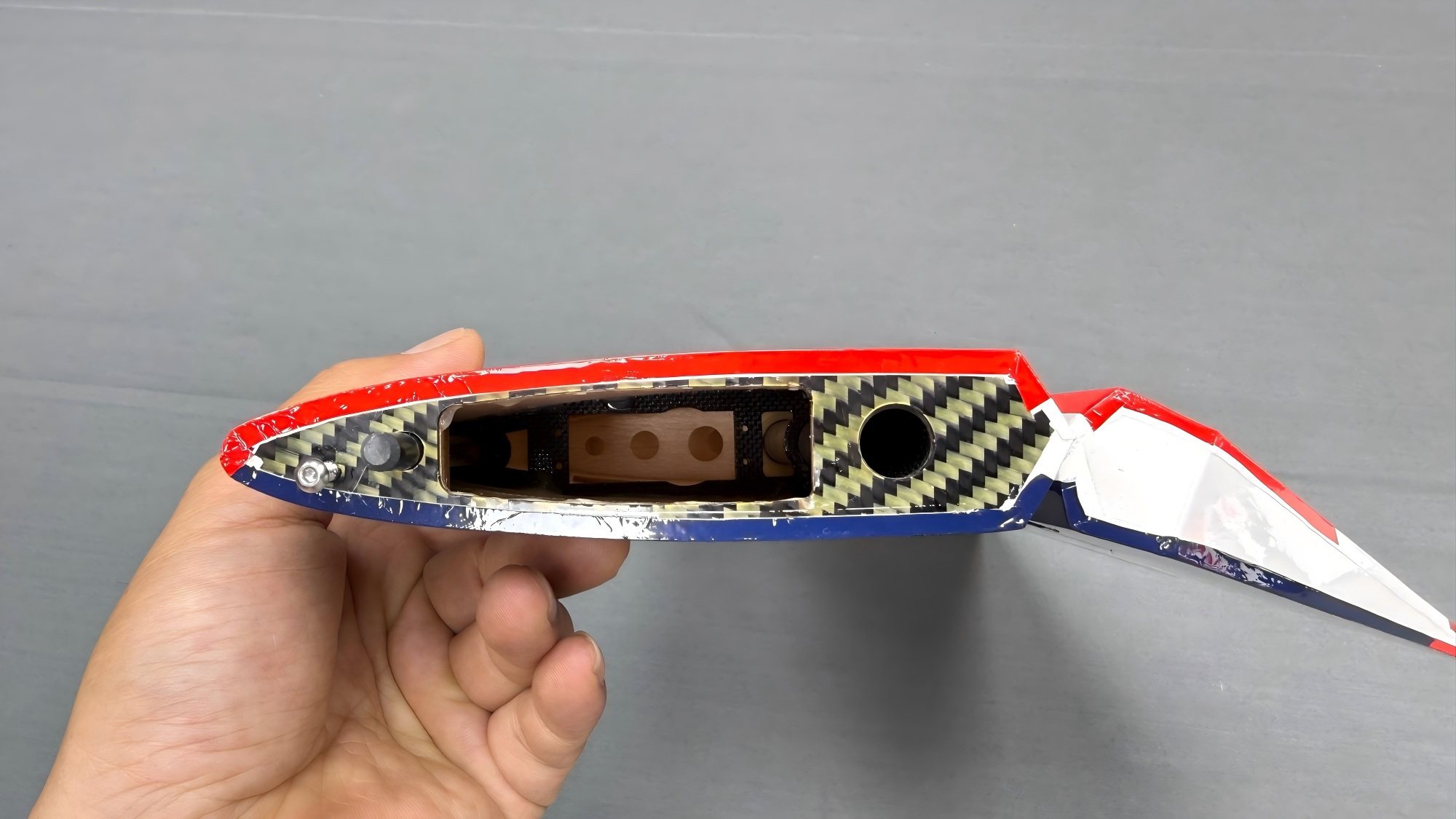

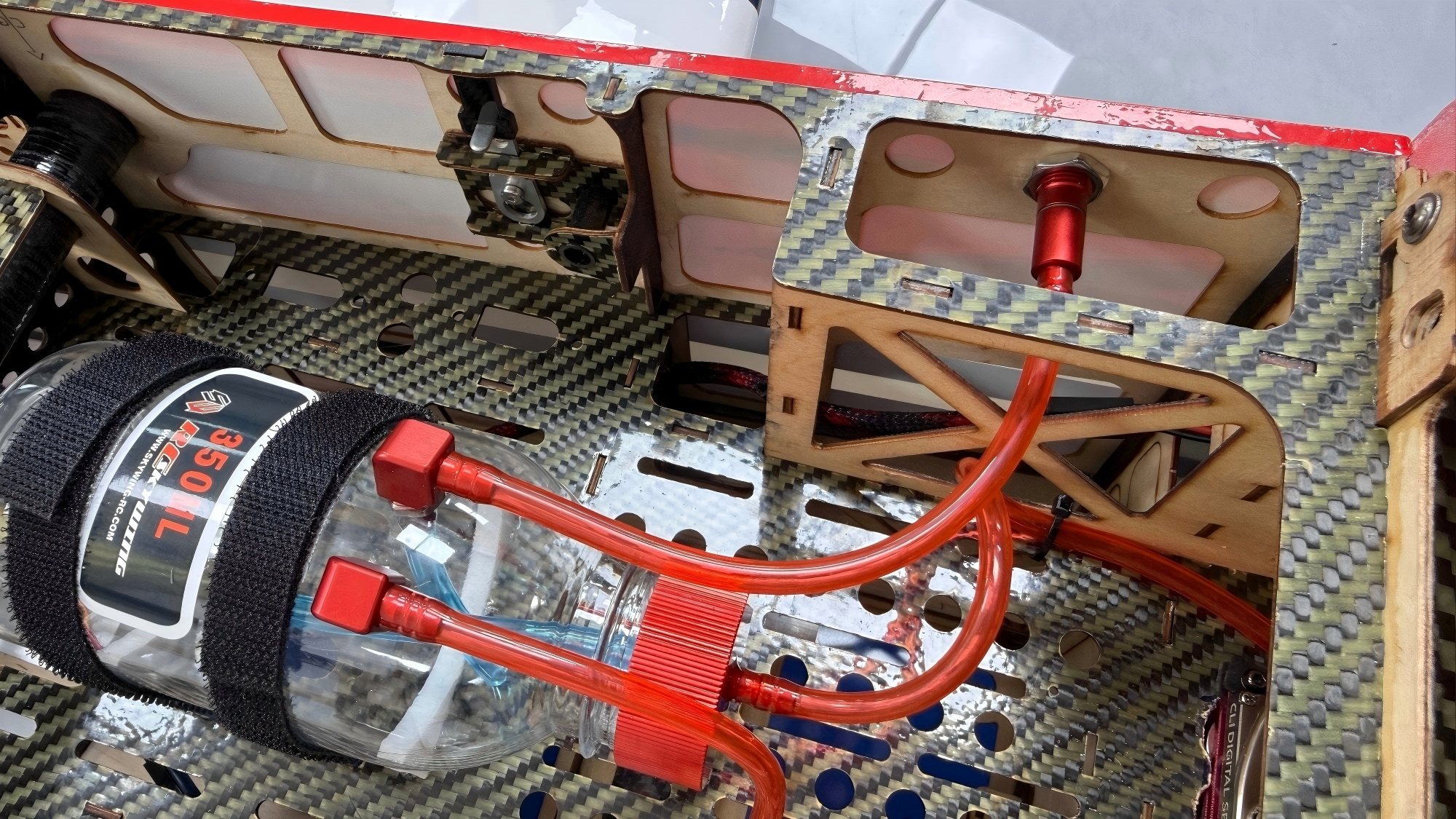

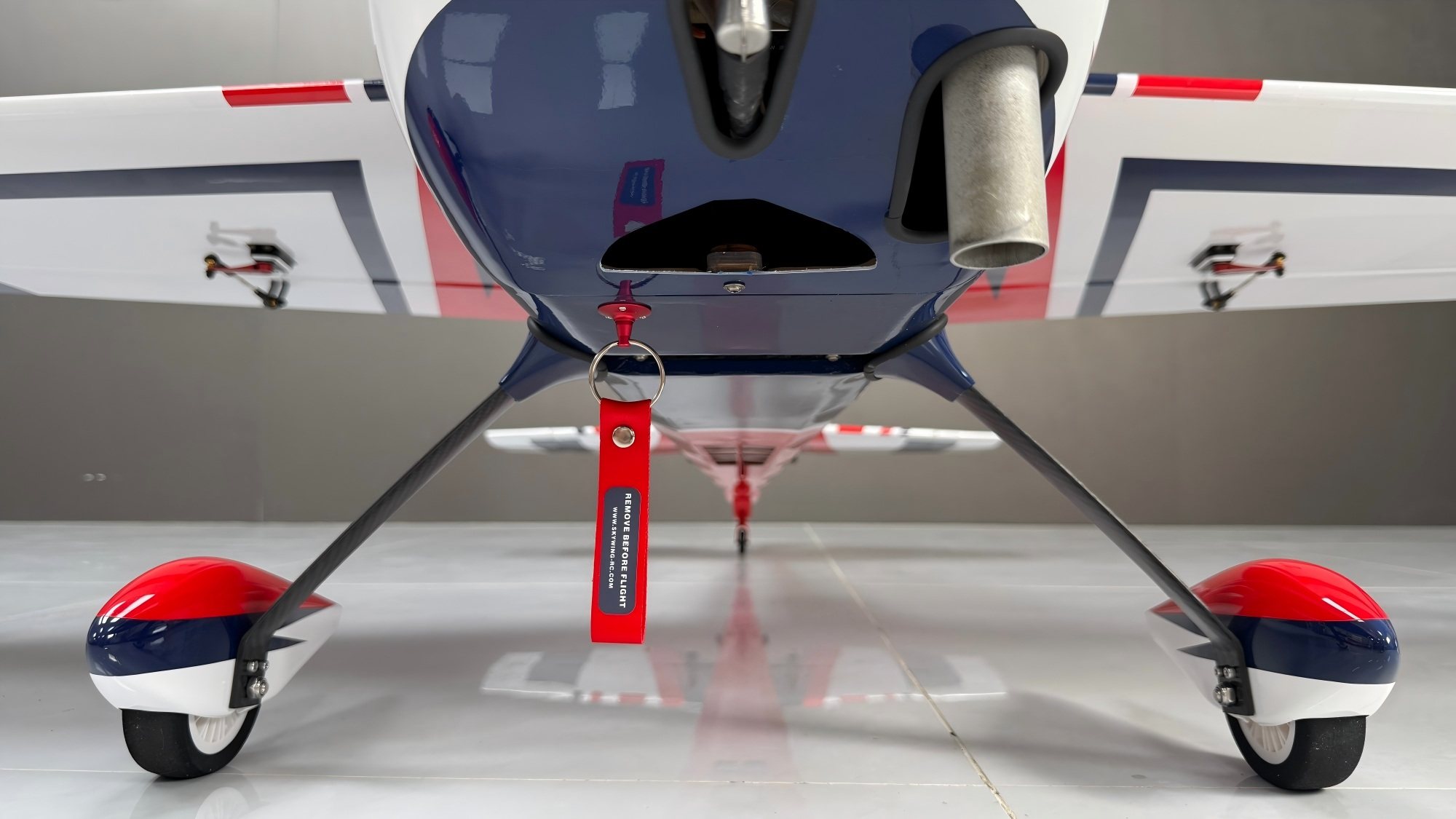

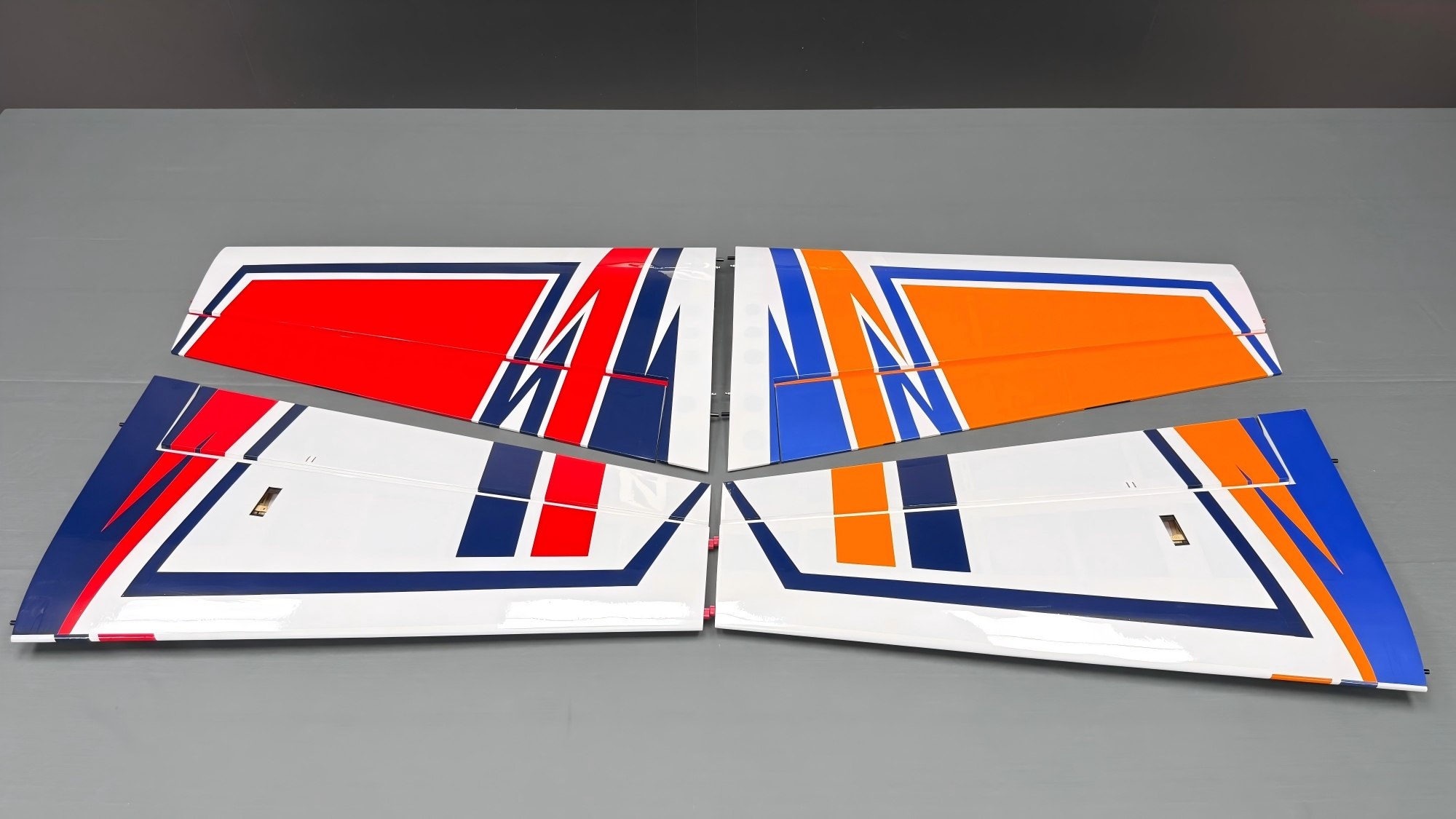

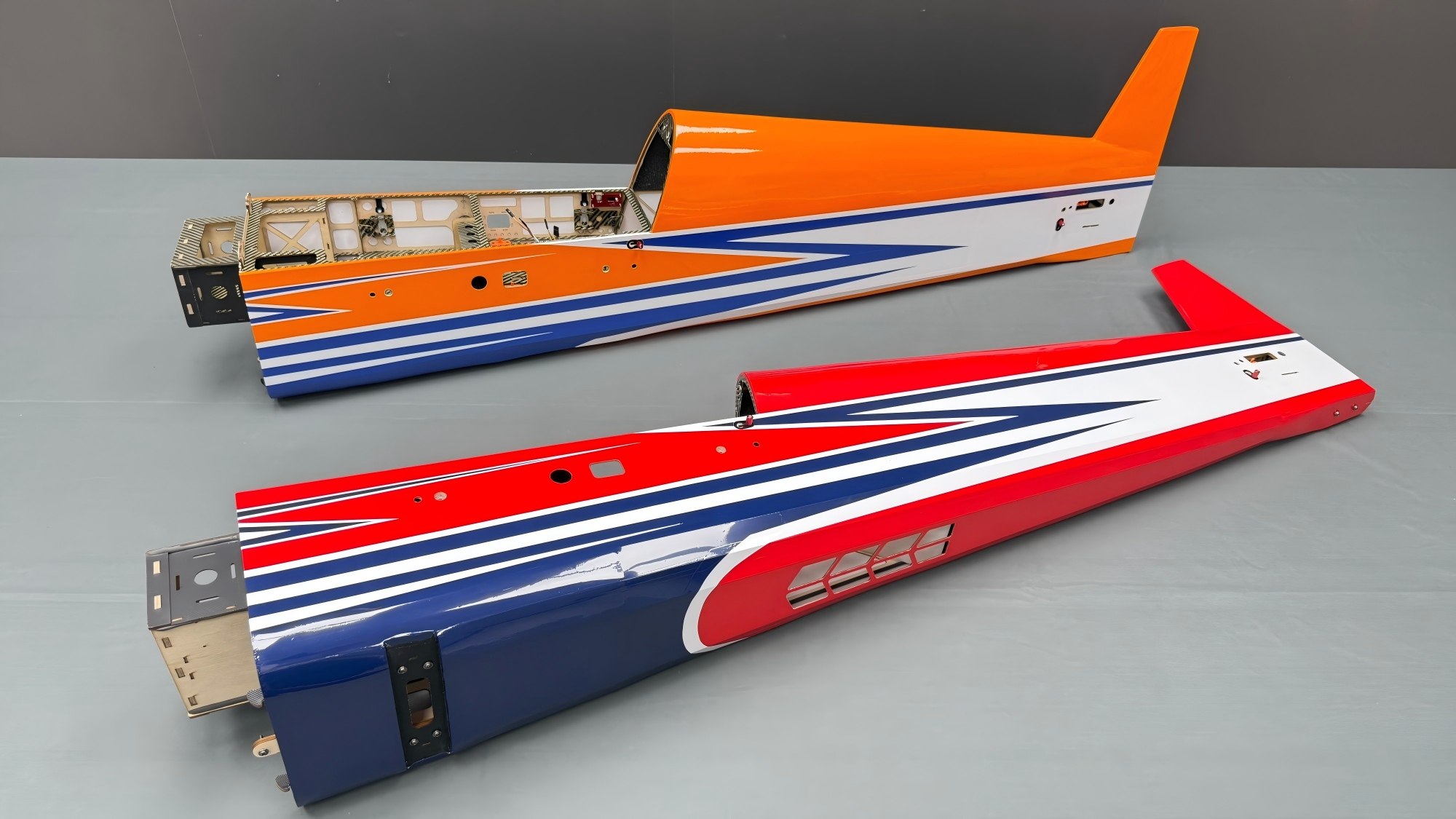

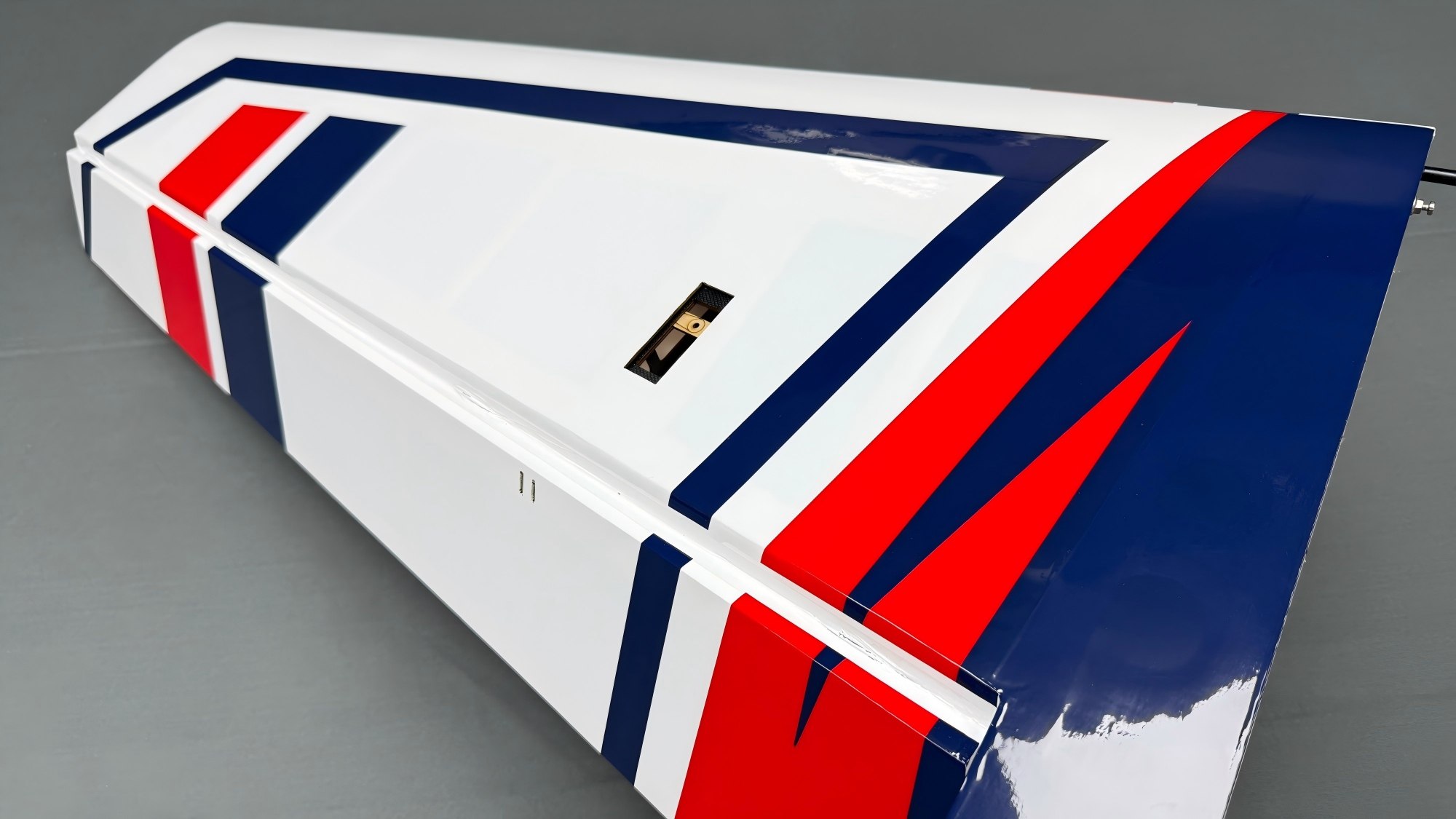

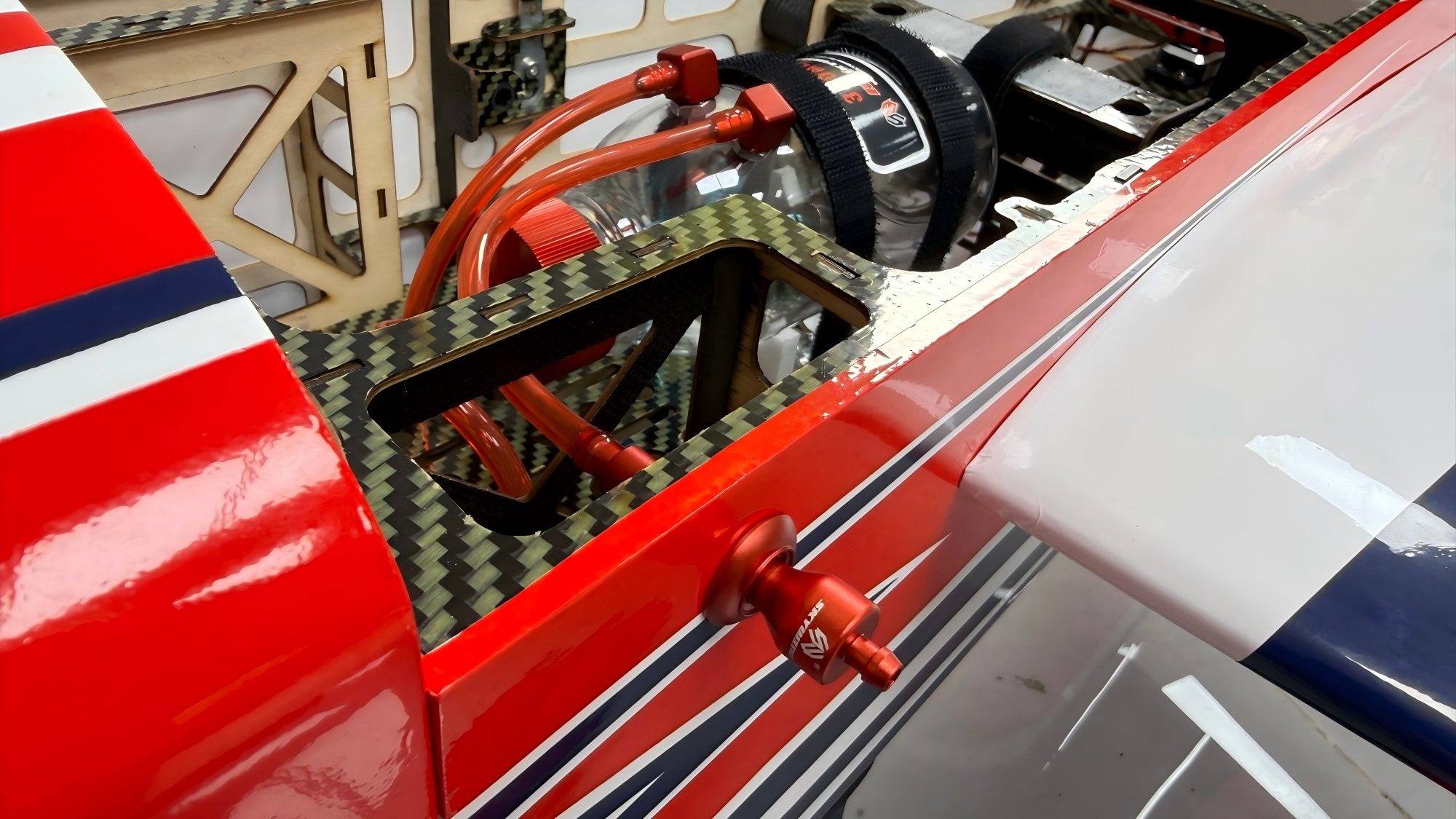

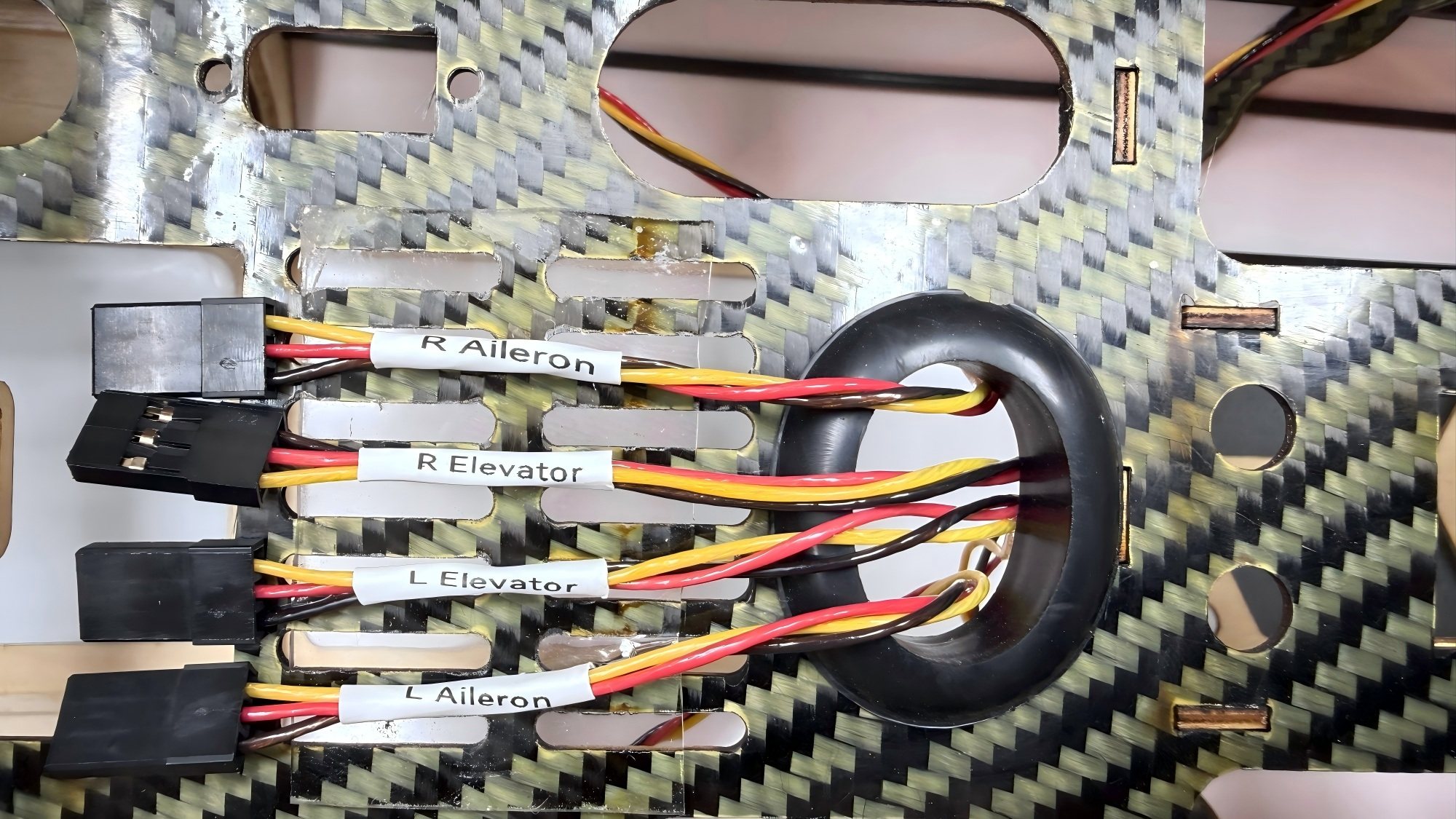

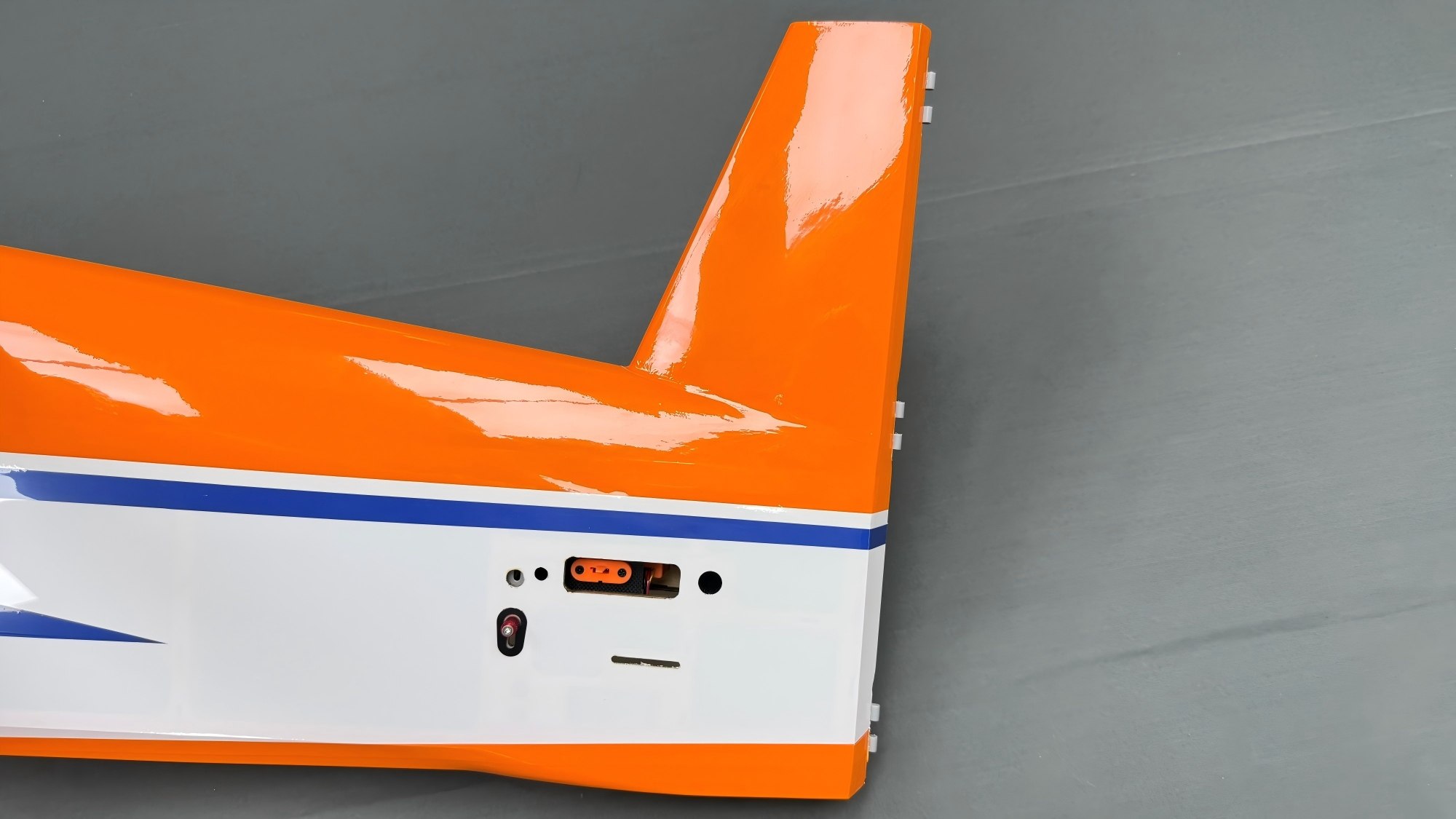

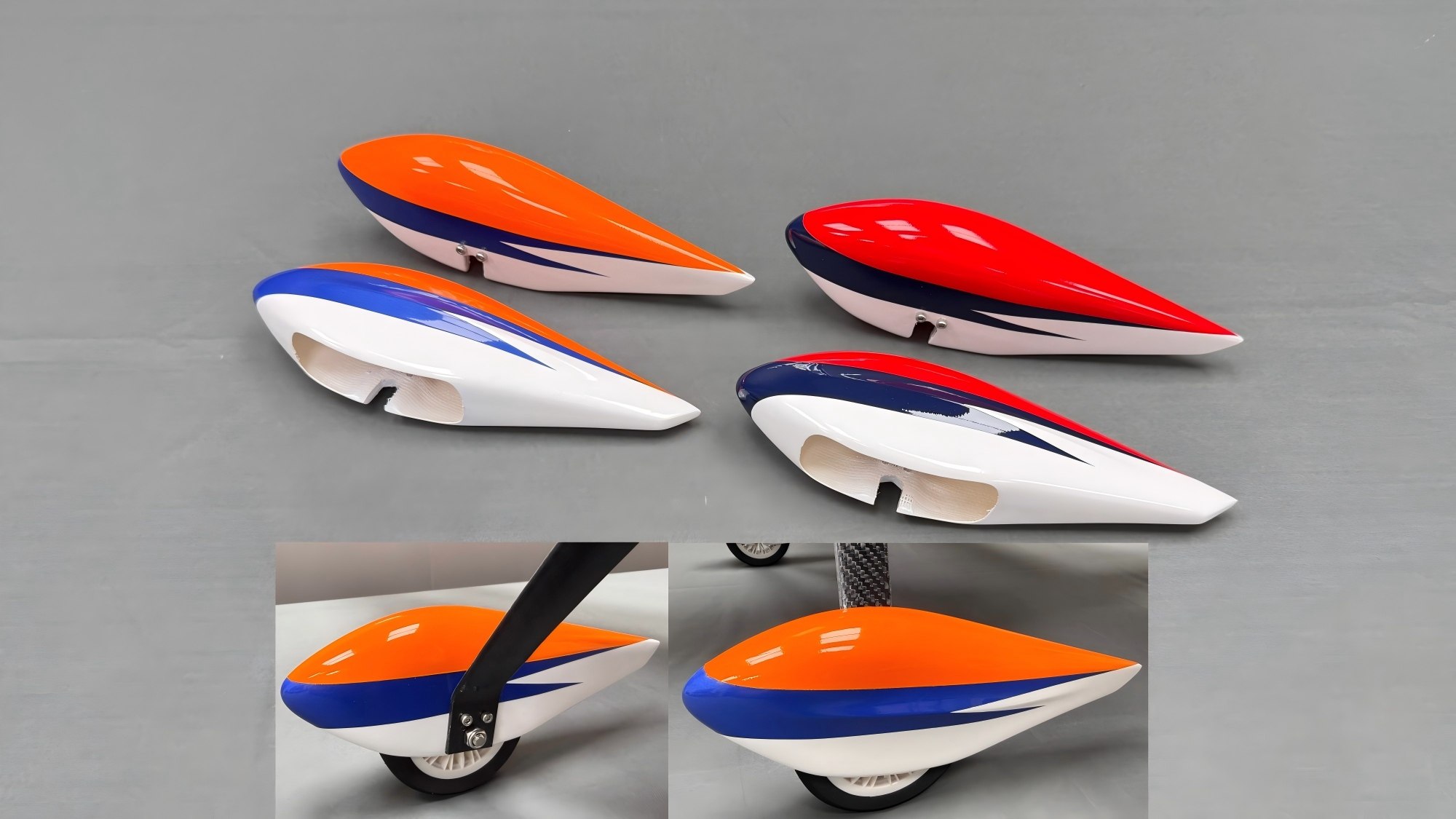

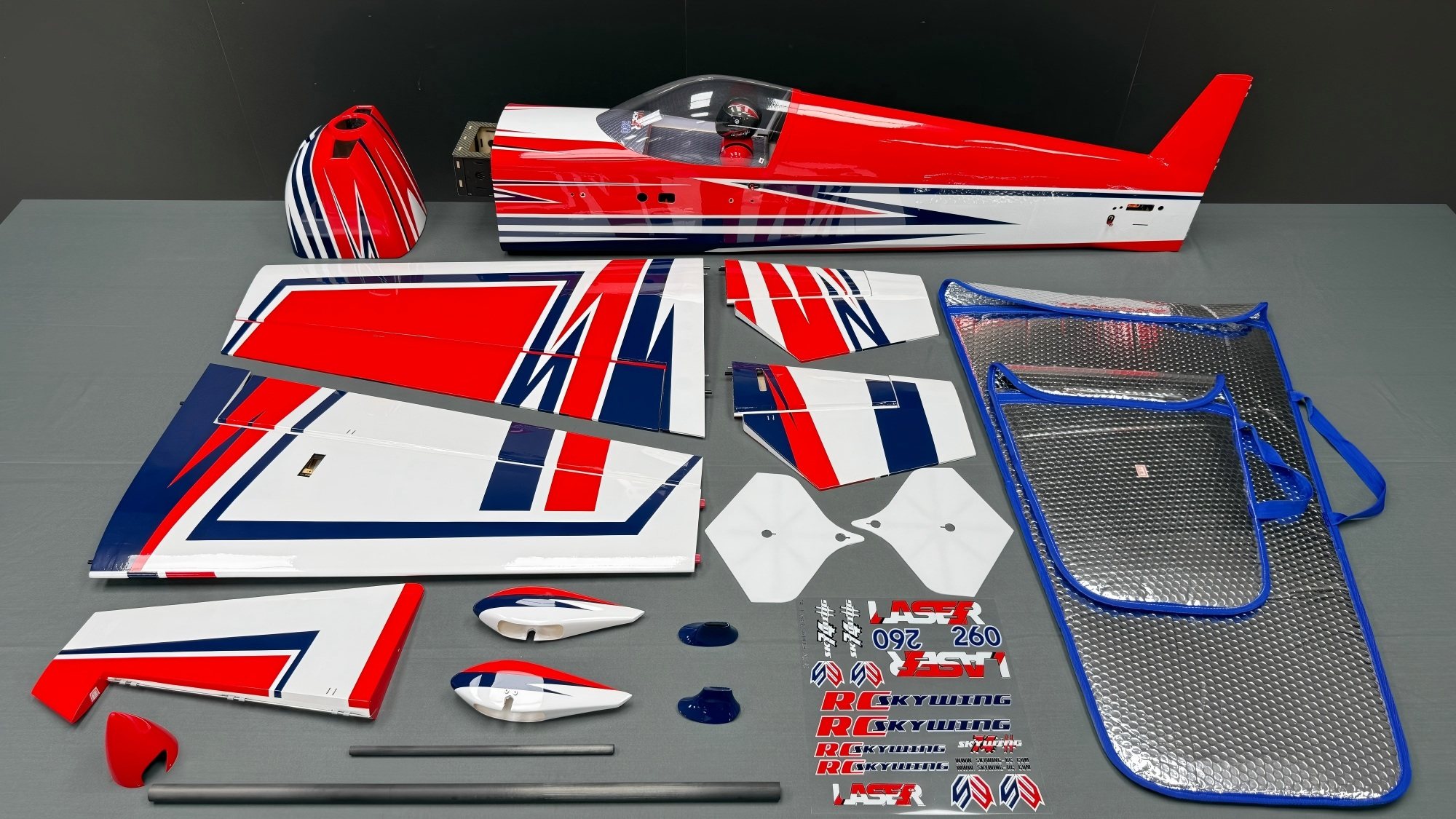

Product details photo（产品细节图）

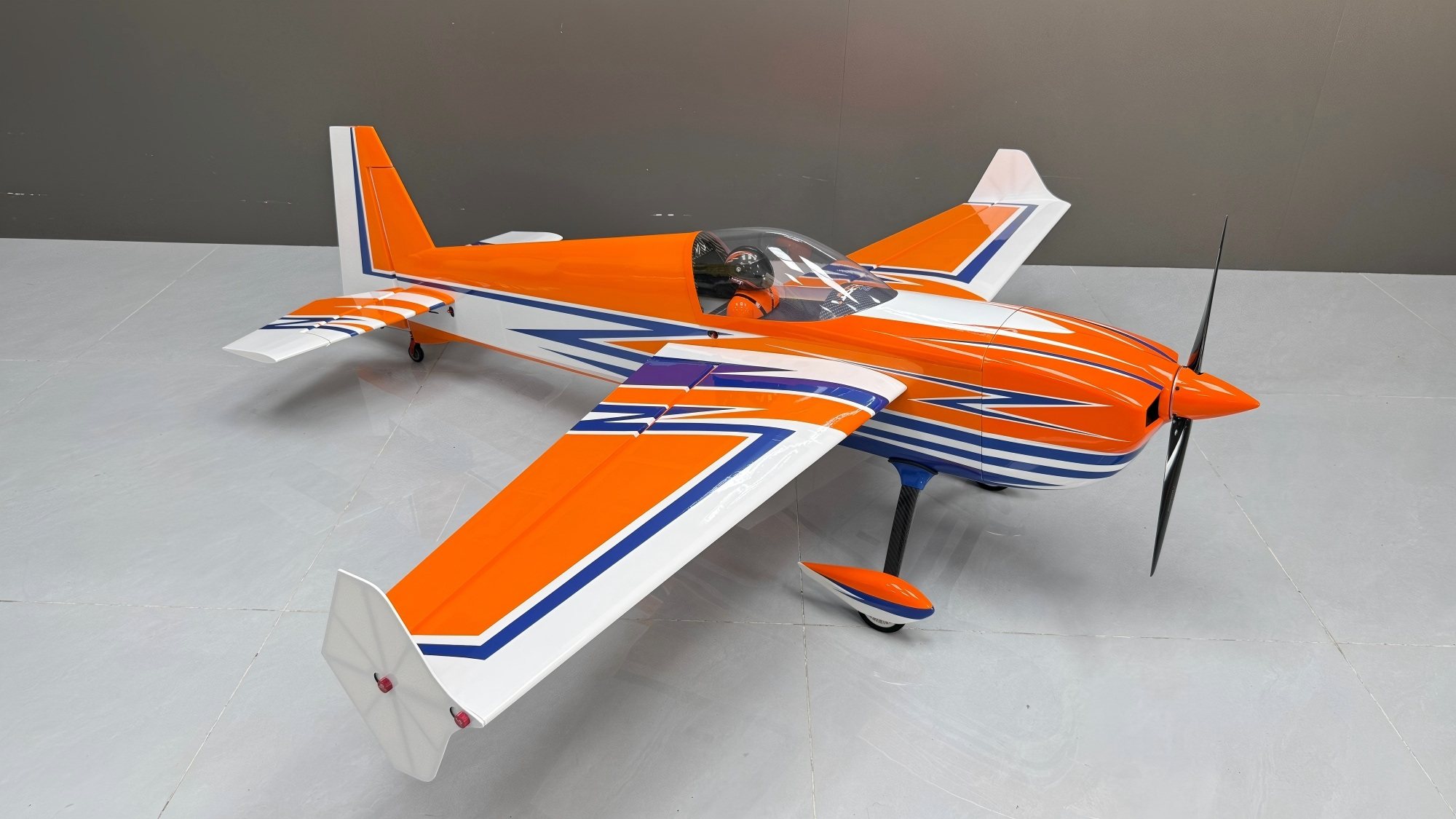

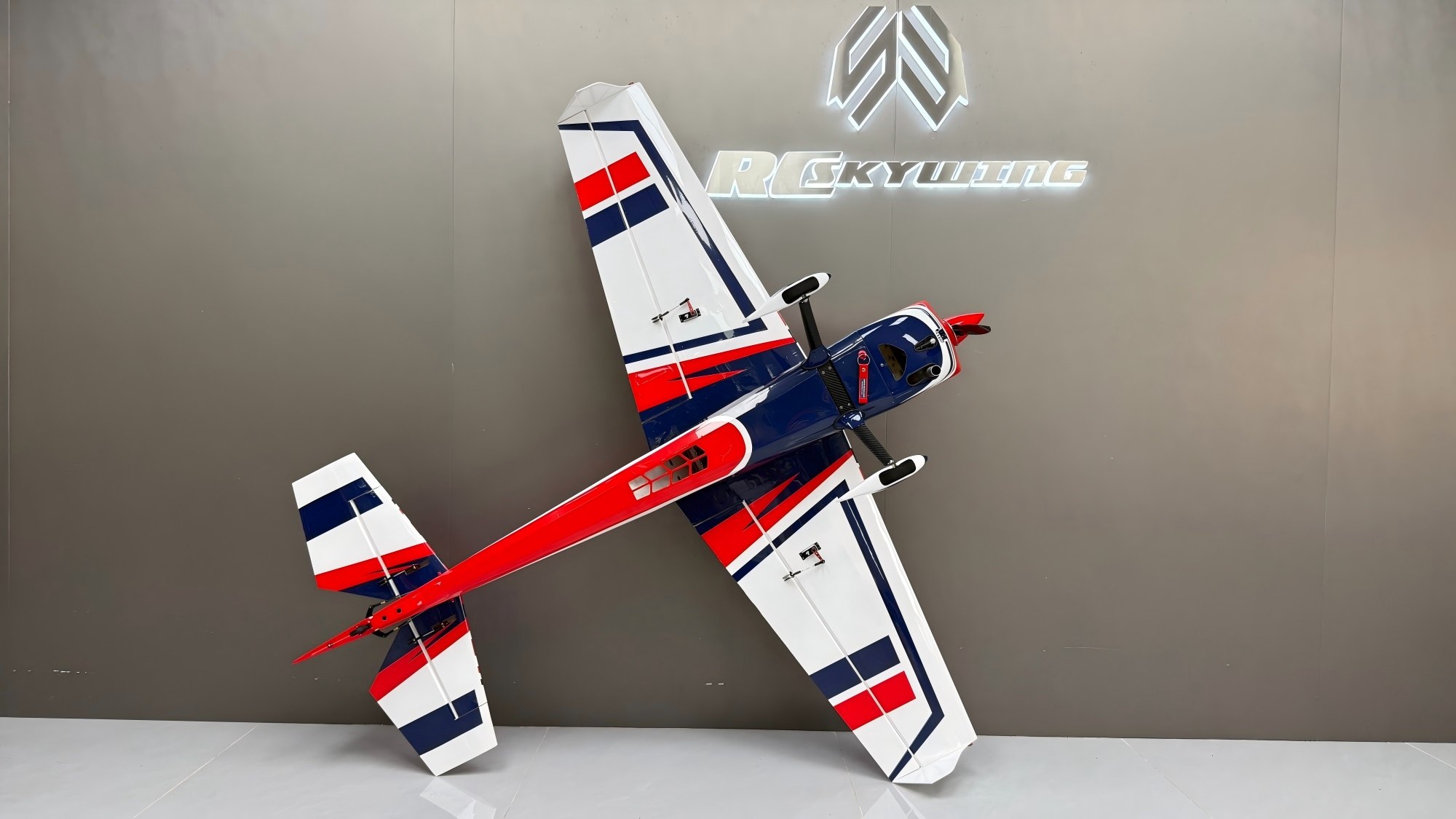

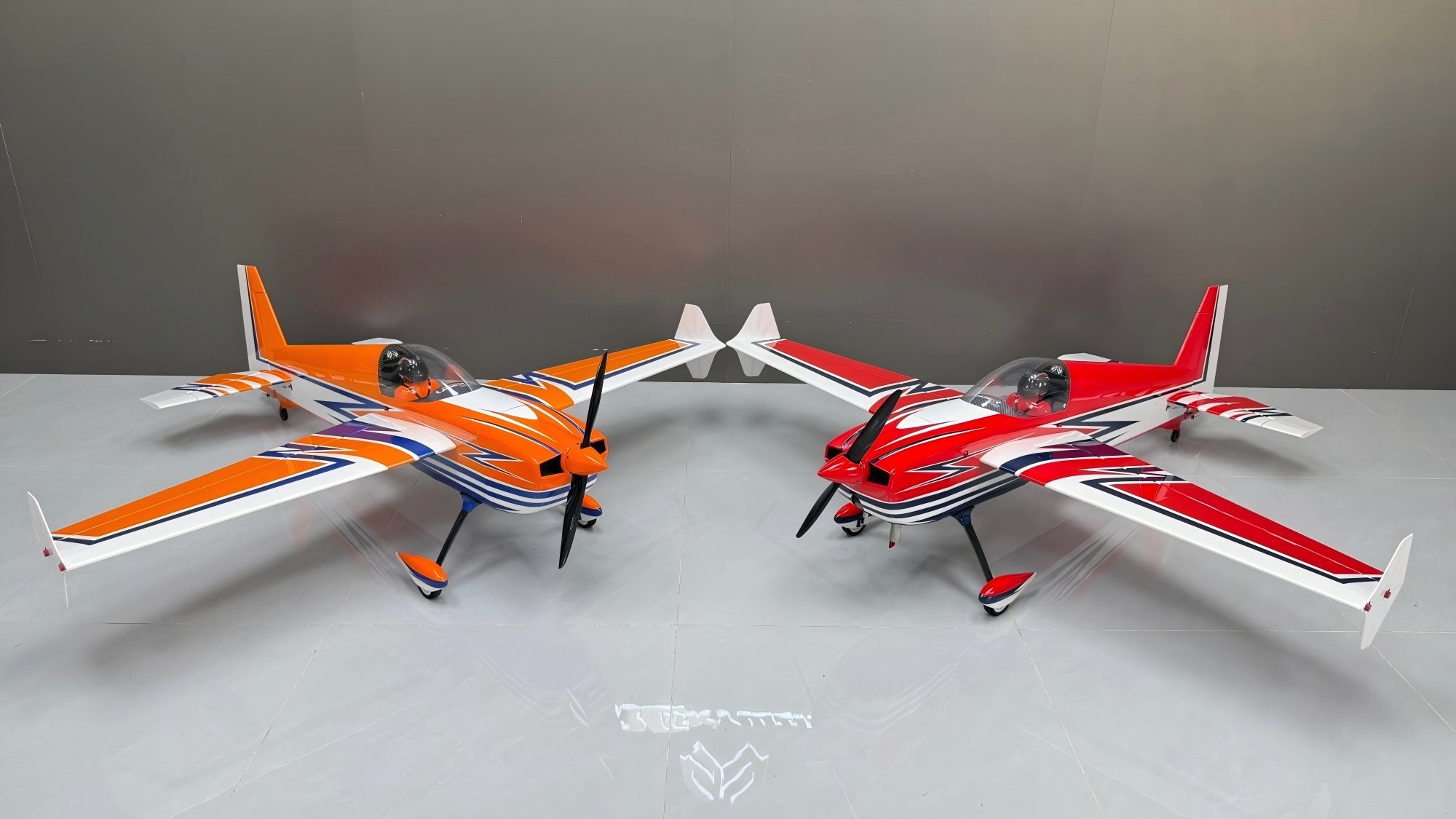

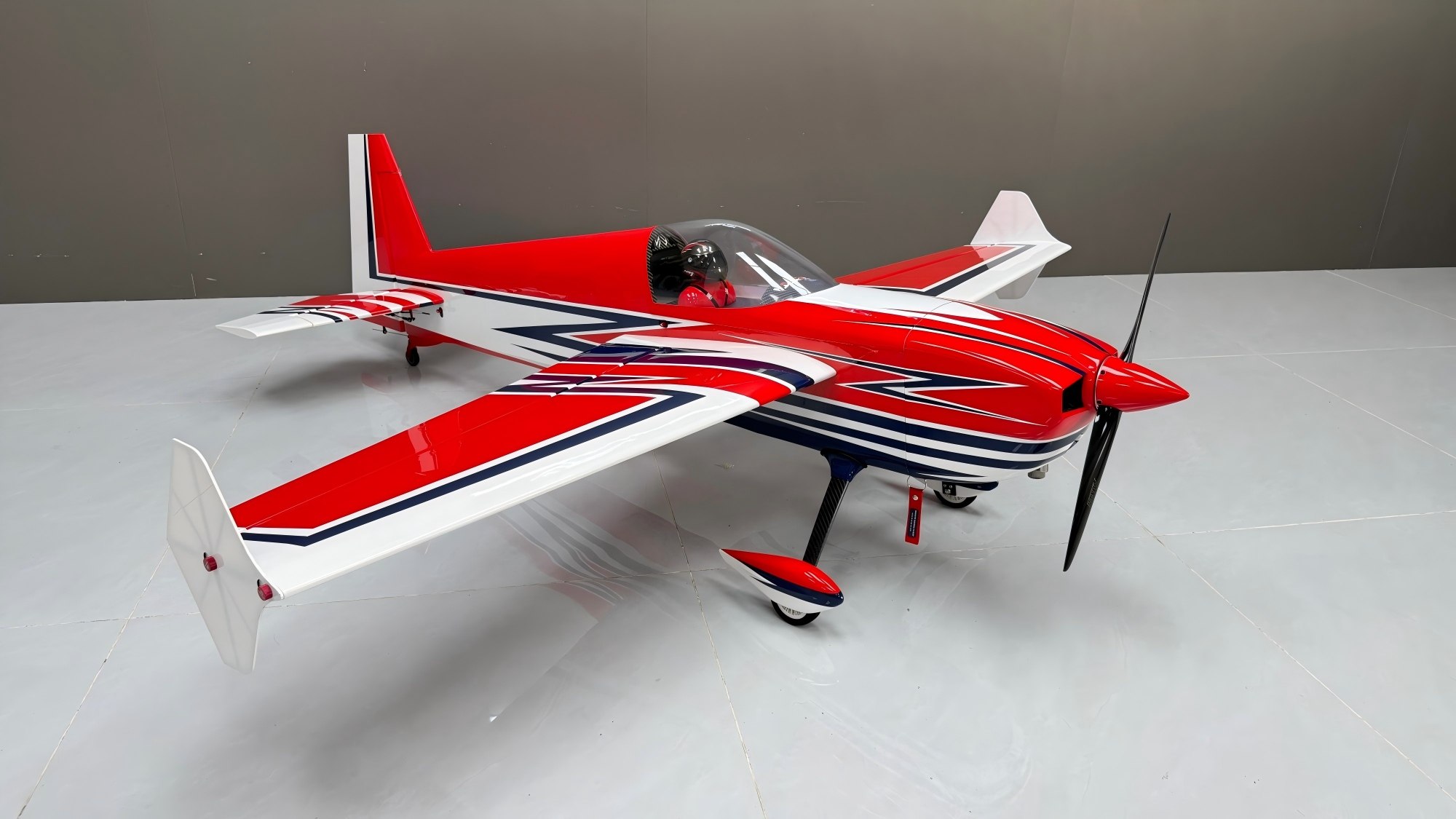

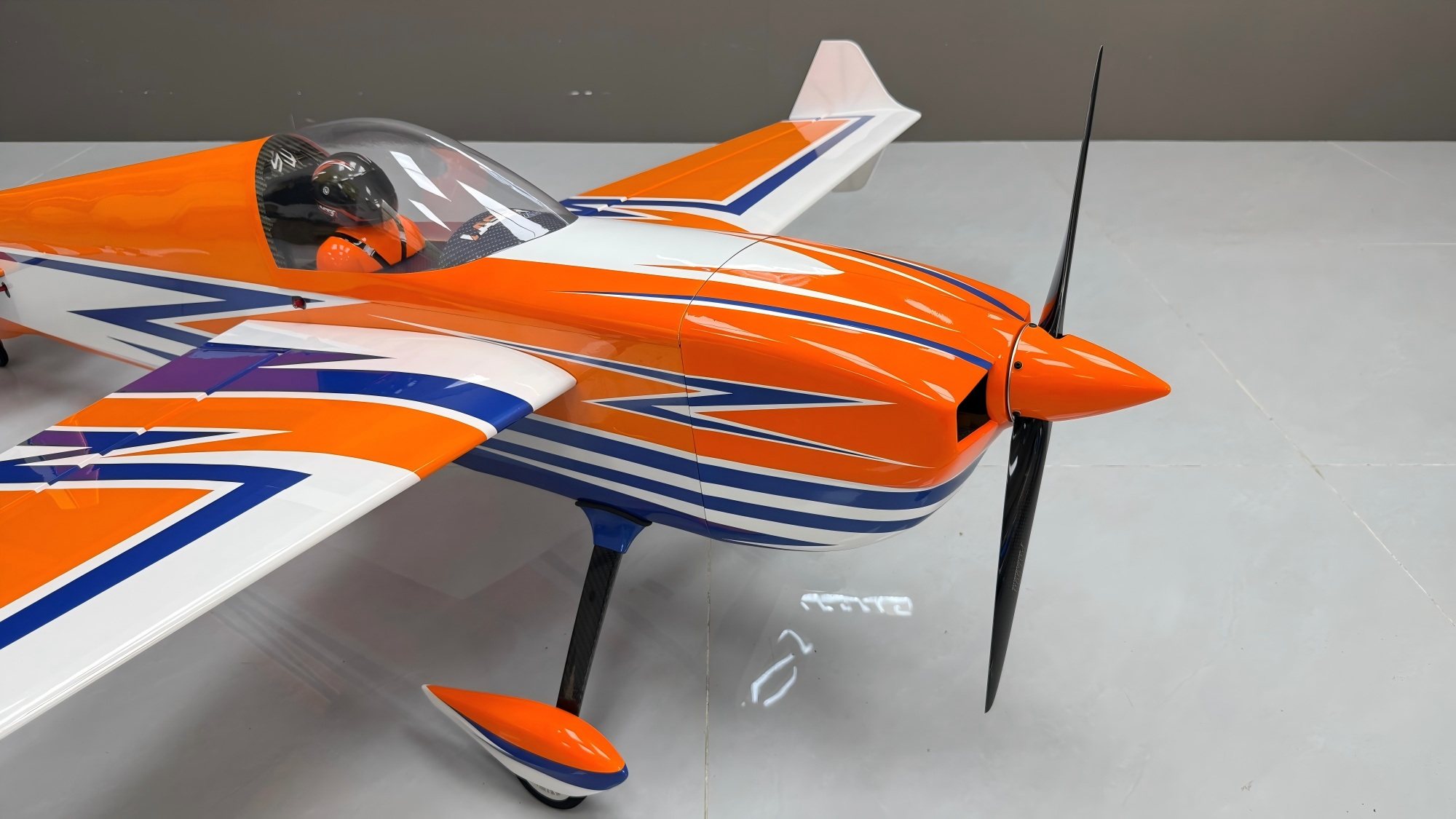

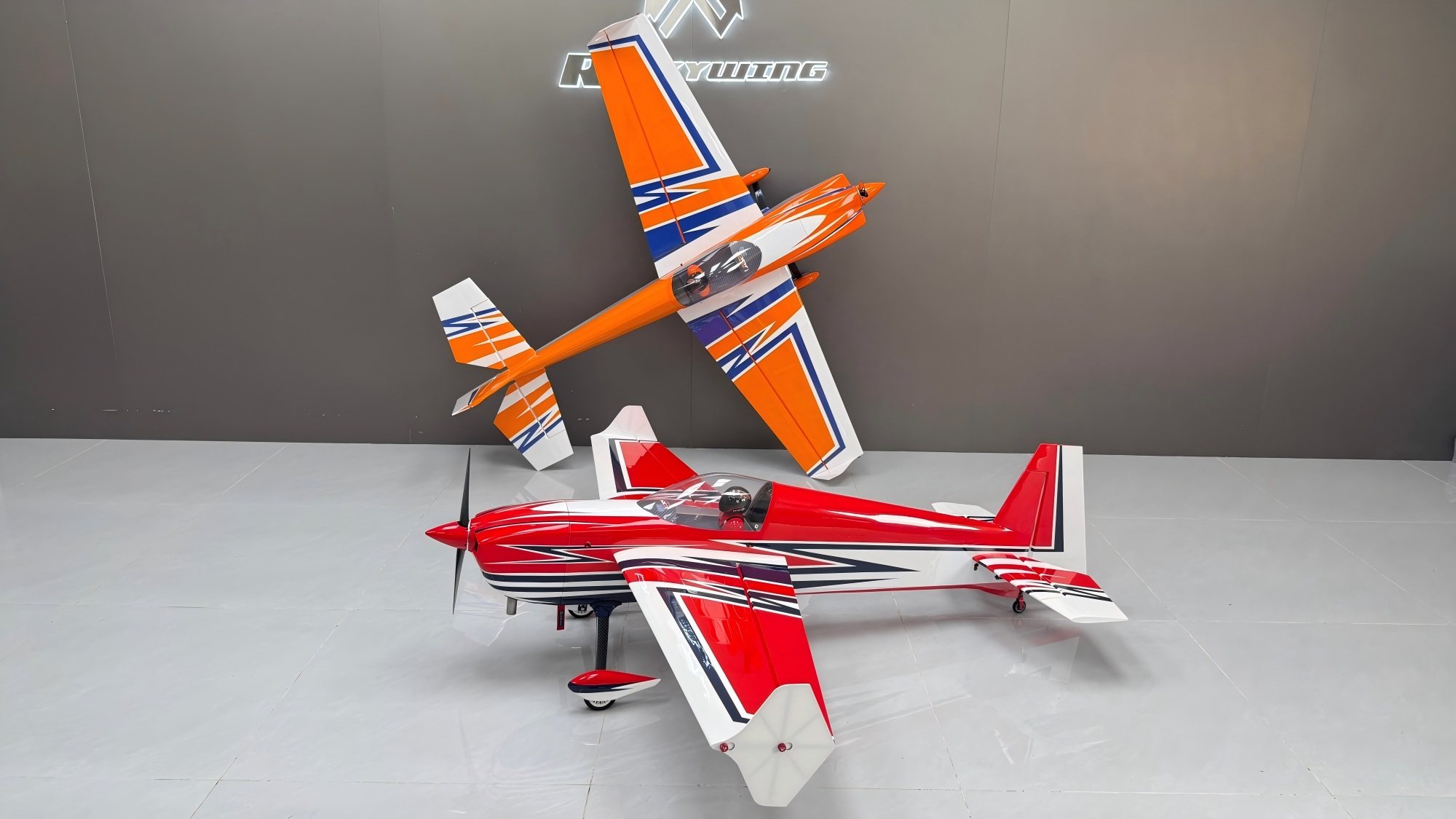

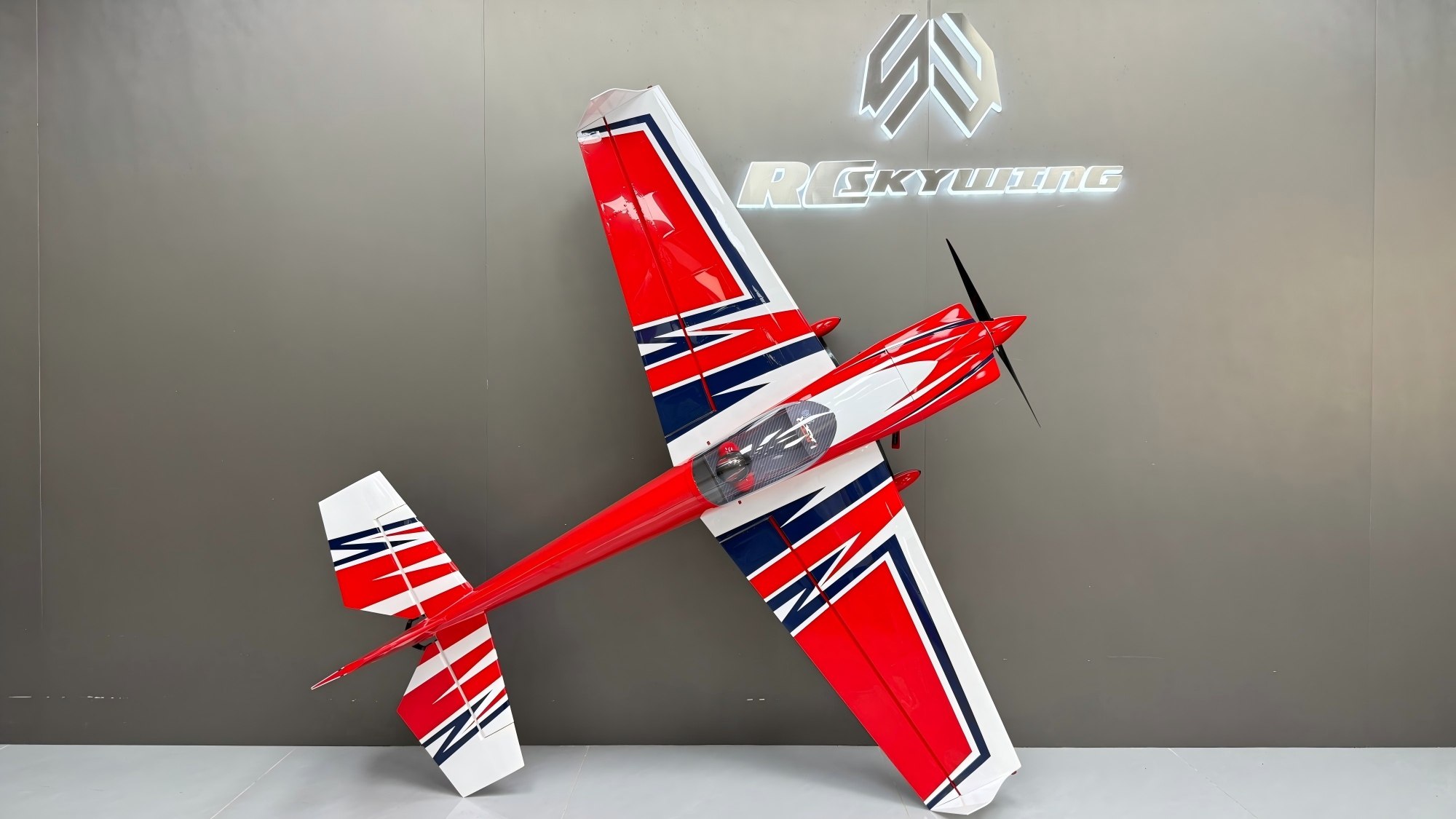

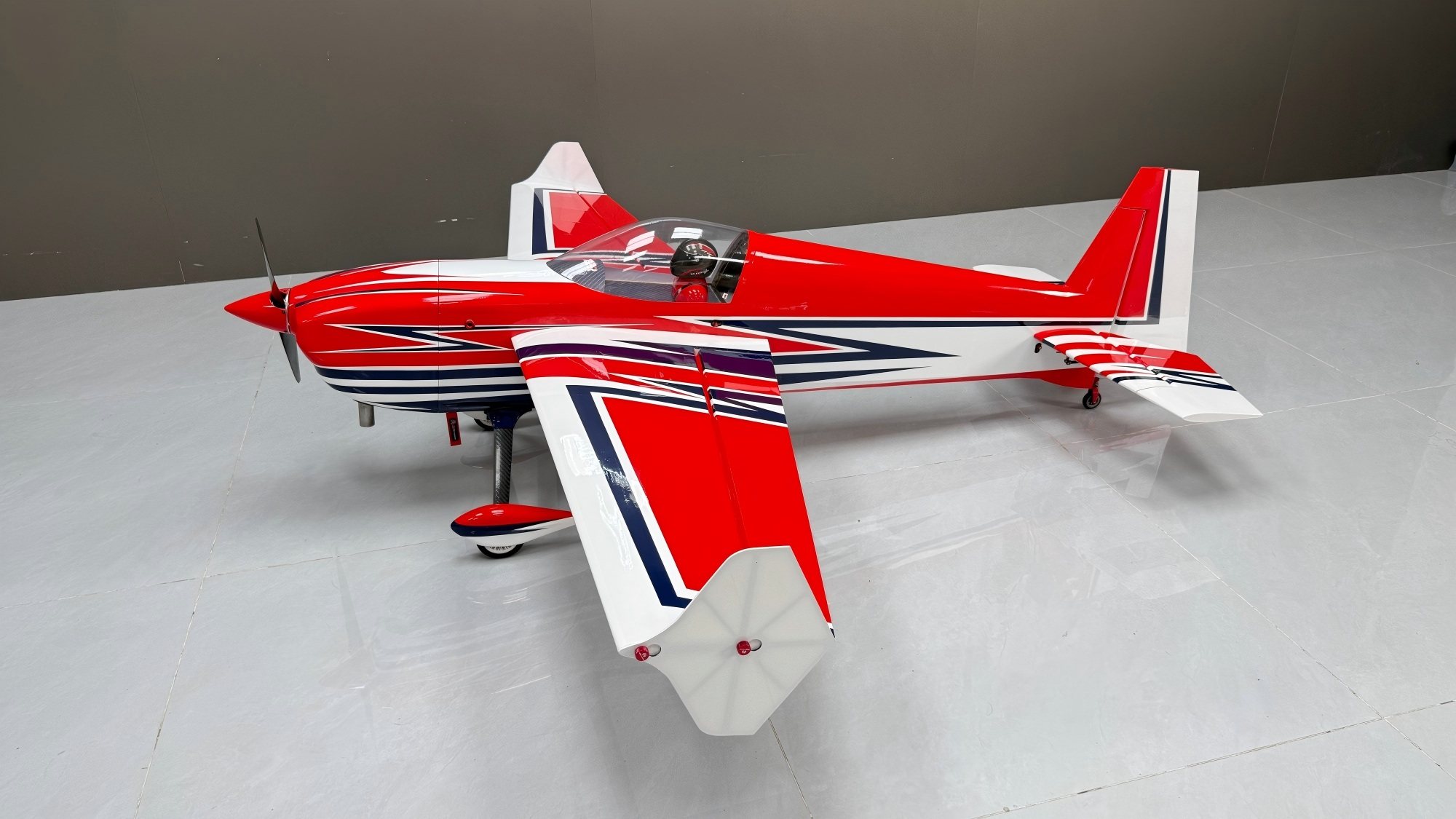

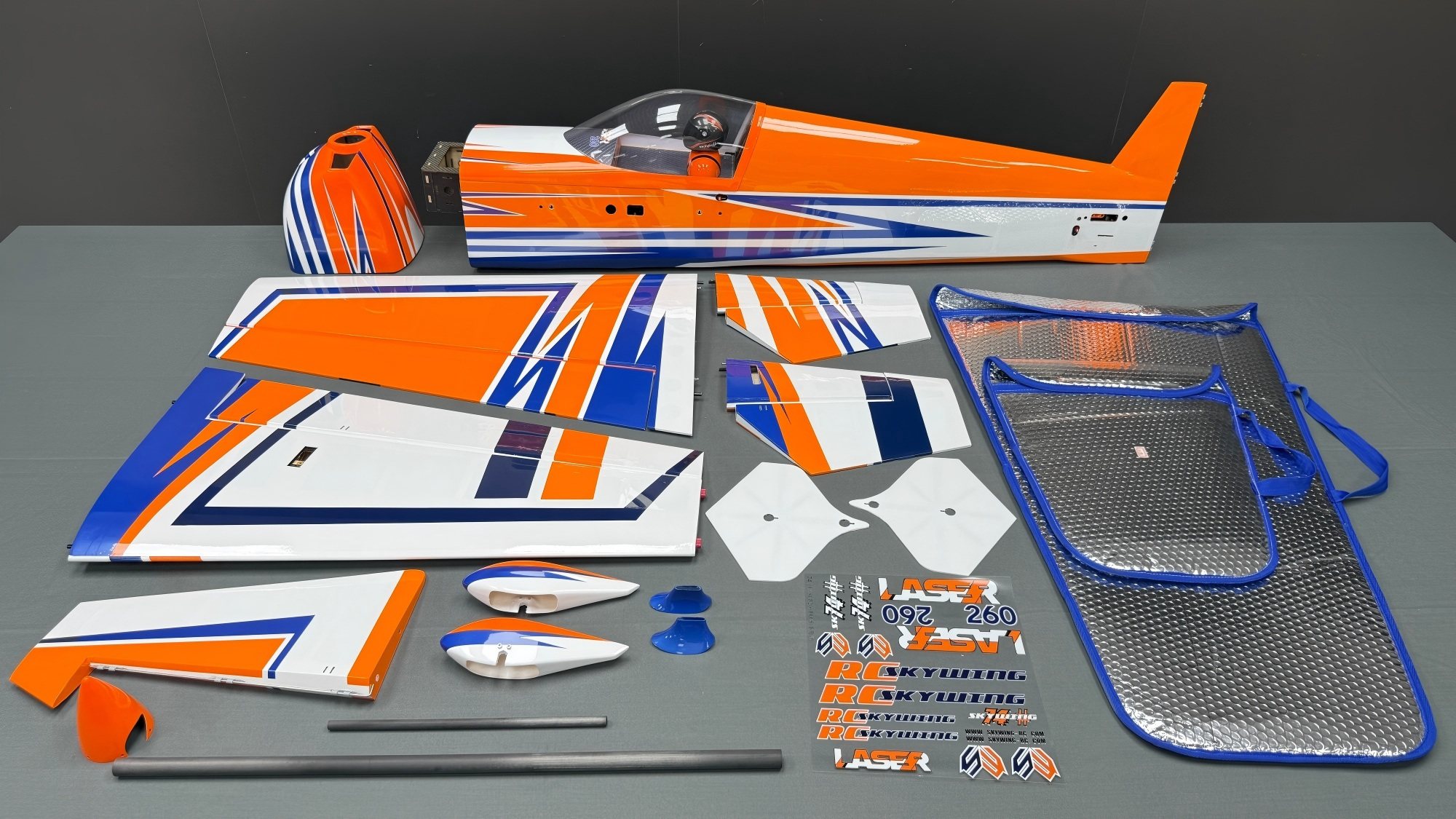

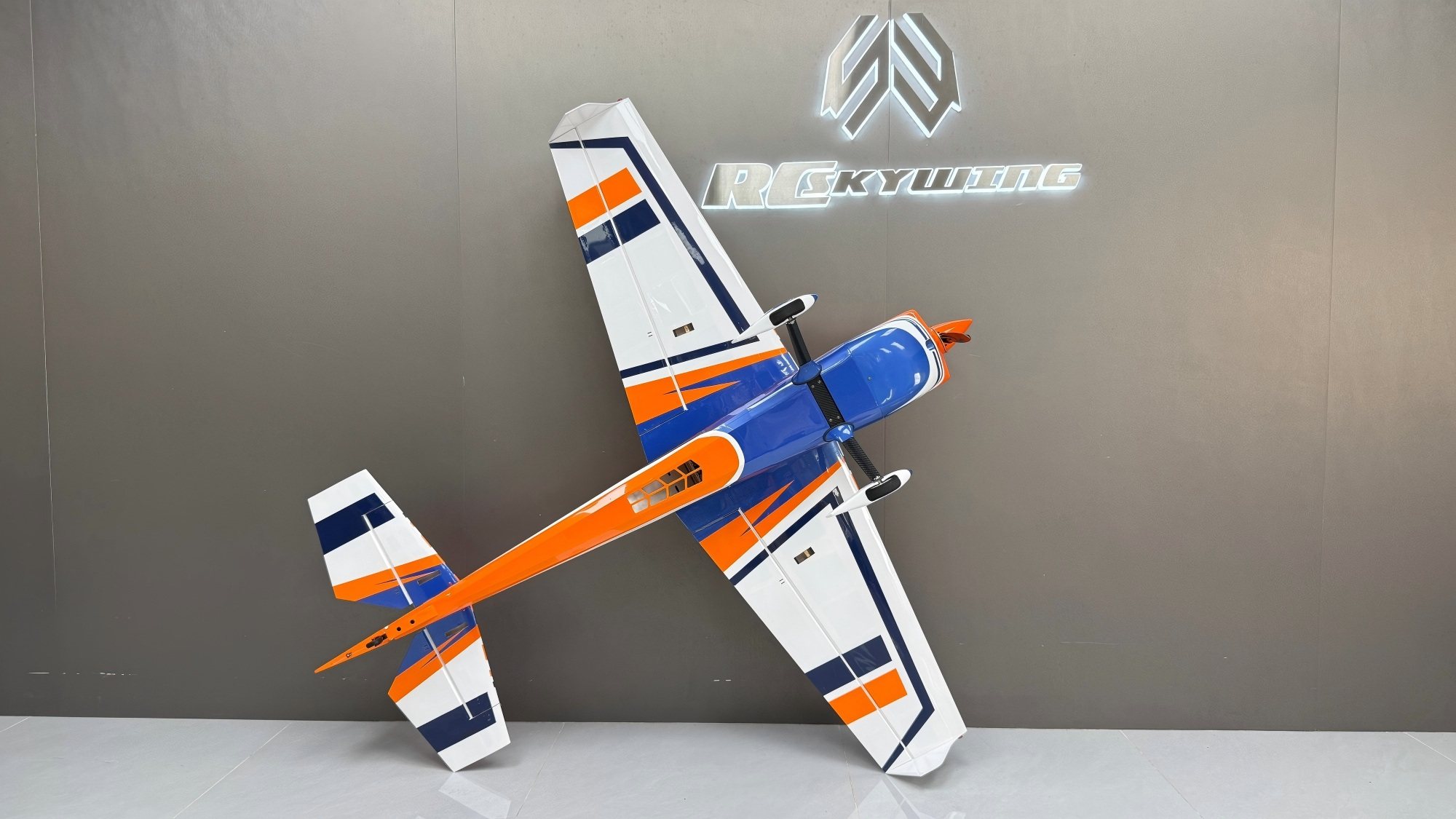

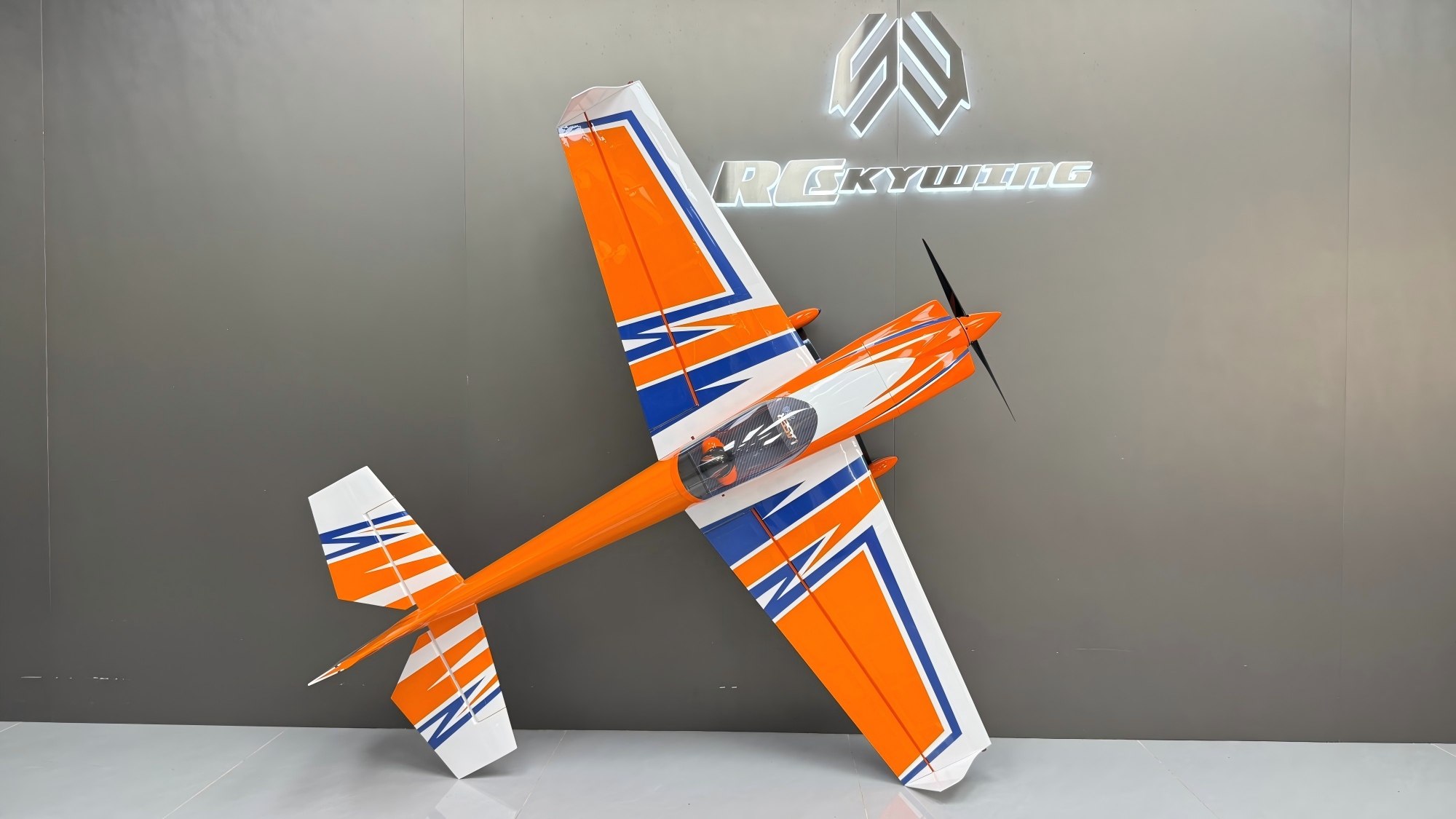

Appreciation of static pictures（静态图片欣赏）

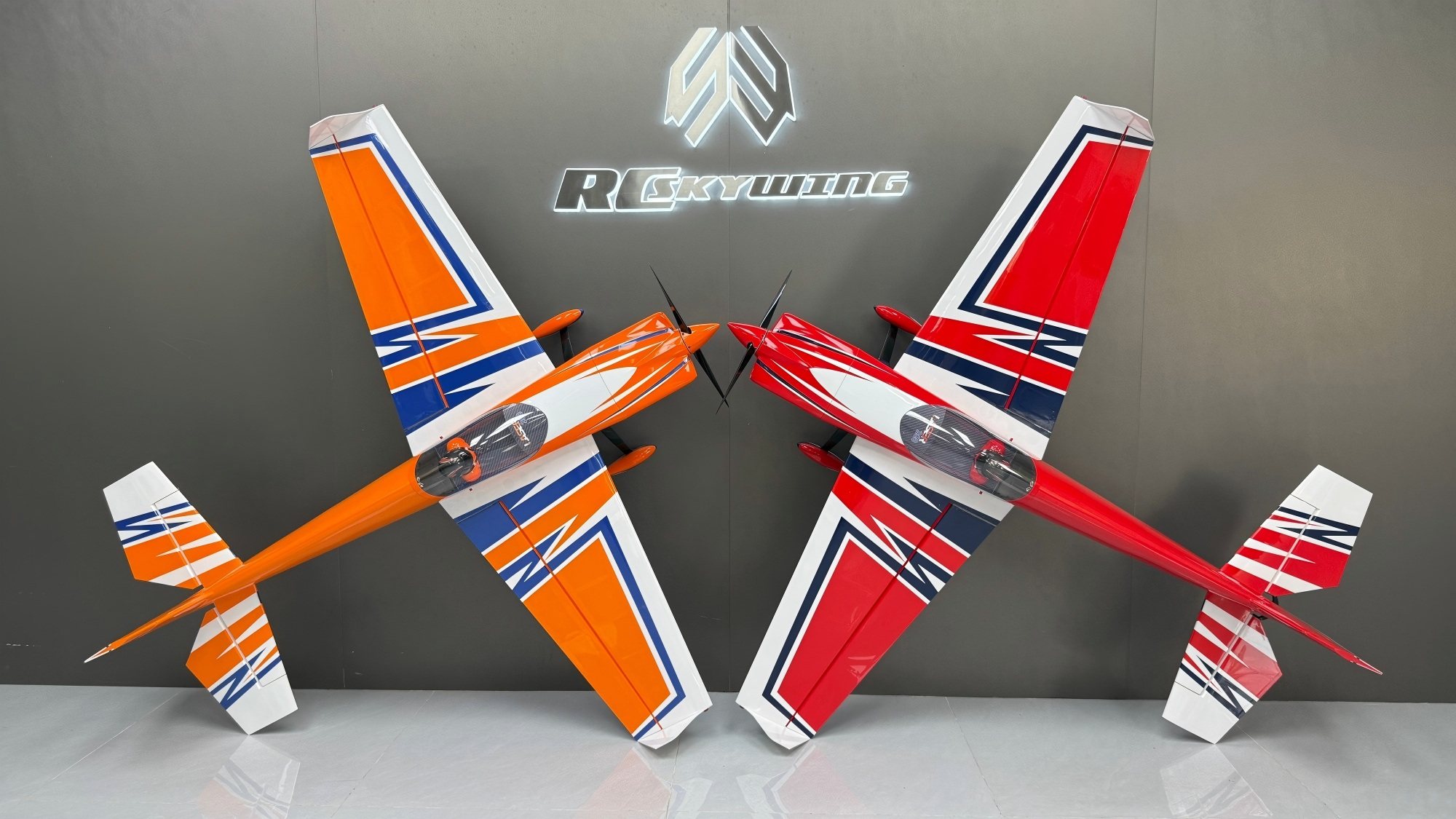

Color scheme:

73"laser260-plus-A

cover color number
1：white-10
2： red-23
3：corsair blue-19

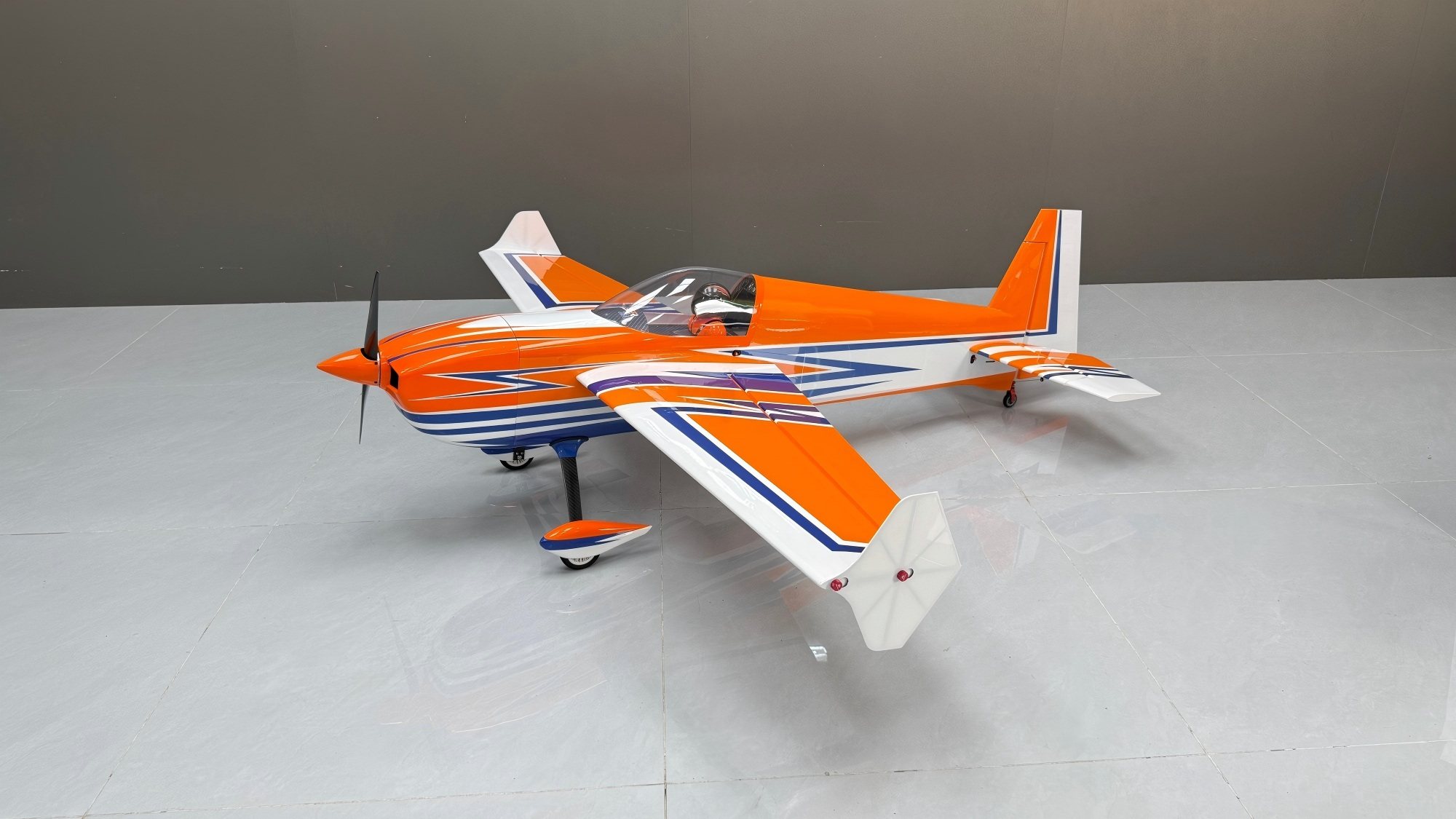

Color scheme:

73"laser260-plus-B

cover color number
1：white-10
2： orange-SW02

3: Metal blue-SW01

4：corsair blue-19
