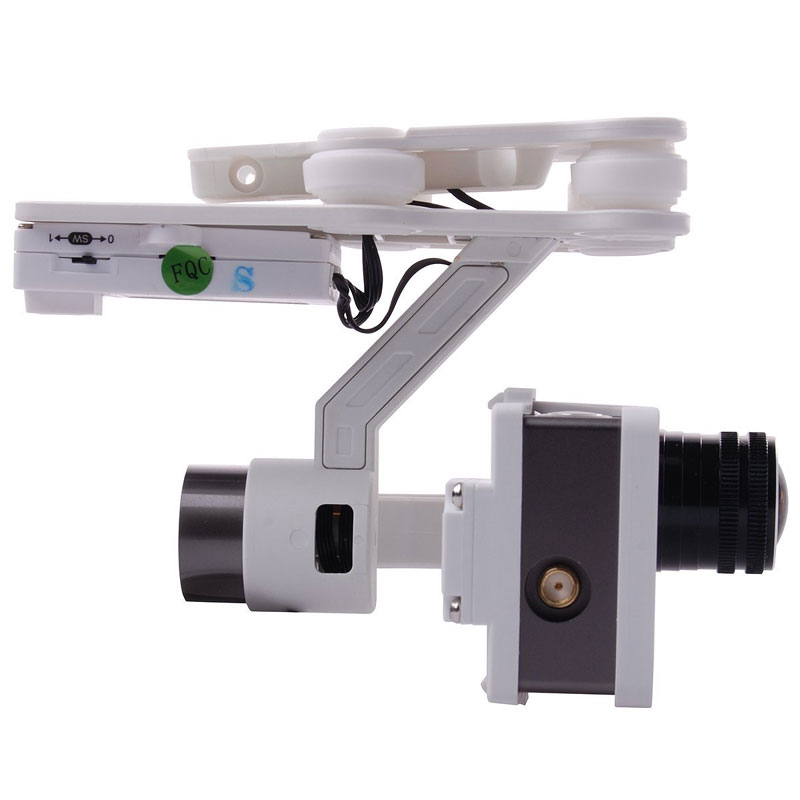

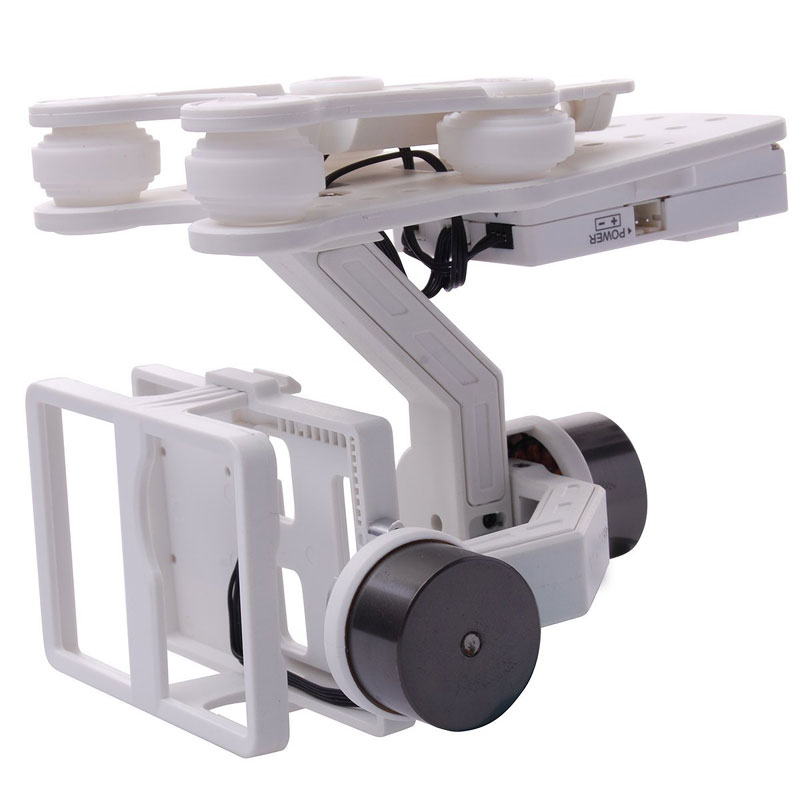

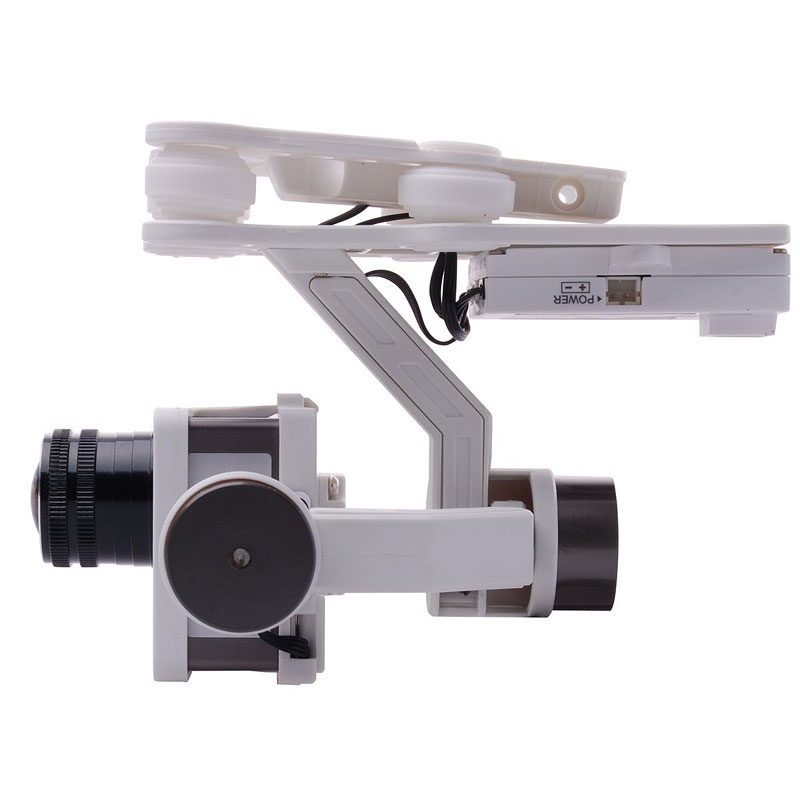

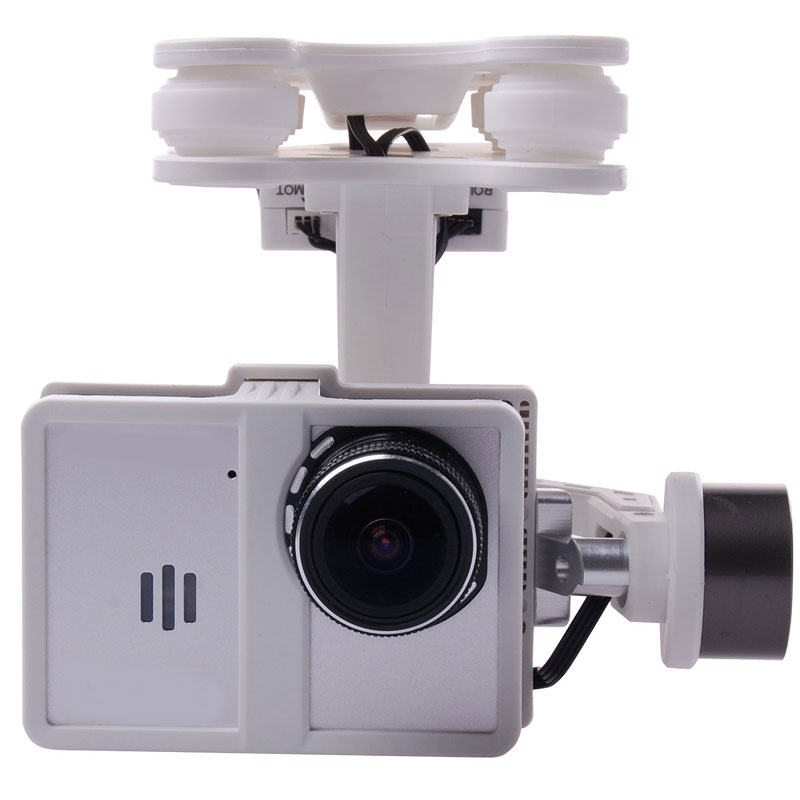

2D Brushless Camera Gimbal (White)
2D Brushless Camera Gimbal (White)



Price: CAD$194.85

Stock Status:Contact us for availability

Item Number: 2DGIMBALWHITE
Qty:

Description

Specifications:
Size: 105mm x 95mm x 95mm(L x W x H)
Operating voltage: 7.4V ~ 28V DC (recommended 12 V, 3S lipo battery)
Work current: 200 mA - 500 mA
Working environment temperature: -15-65C
Sensors: 2-axis MEMS gyroscope rotor and rotor MEMS accelerometer
Maximum angular rate: 2000 deg/ SEC
Maximum acceleration: 16g
Control frequency: 2000 Hz
Motor drive frequency: 46 kHZ (noiseless smooth drive)
Accuracy: 0.1 deg
Control Range:-45~45(Roll) -135~90(Pitch)
Applicable filming equipment: GOPRO Hero3 / Gopro Hero 3+ / iLook / iLook+ / Sony Camera


Features:
Designed in high intensive,light and agility, easy to use Support super stable aerial photography
Support iLook / iLook+ / Gopro Hero3 / Gopro Hero 3+ / Sony Camera
Support 350 size and above drones to shooting videos
Support video aux output
Support the power supply voltage reverse connection protection and voltage compensation
Support for motor drive side short circuit protection

Support initial pitch angle



Specifications:
Size: 105mm x 95mm x 95mm(L x W x H)
Operating voltage: 7.4V ~ 28V DC (recommended 12 V, 3S lipo battery)
Work current: 200 mA - 500 mA
Working environment temperature: -15-65C
Sensors: 2-axis MEMS gyroscope rotor and rotor MEMS accelerometer
Maximum angular rate: 2000 deg/ SEC
Maximum acceleration: 16g
Control frequency: 2000 Hz
Motor drive frequency: 46 kHZ (noiseless smooth drive)
Accuracy: 0.1 deg
Control Range:-45~45(Roll) -135~90(Pitch)
Applicable filming equipment: GOPRO Hero3 / Gopro Hero 3+ / iLook / iLook+ / Sony Camera


Features:
Designed in high intensive,light and agility, easy to use Support super stable aerial photography
Support iLook / iLook+ / Gopro Hero3 / Gopro Hero 3+ / Sony Camera
Support 350 size and above drones to shooting videos
Support video aux output
Support the power supply voltage reverse connection protection and voltage compensation
Support for motor drive side short circuit protection
Support initial pitch angle
