• Equivalent to a 25-size glow engine for sport and scale airplanes weighing 3–5 lb
• Ideal for 15-size 3D airplanes up to 3.2 pounds (1.5 kilograms)
• Ideal for models requiring up to 464 watts of power
• High-torque, direct-drive alternative to inrunner brushless motors

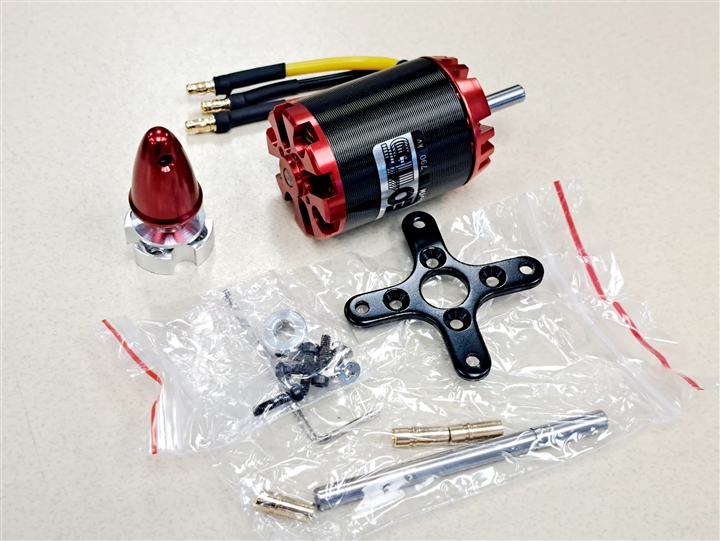

• Includes mount, prop adapter and mounting hardware
• External radial rotor design—5mm shaft can easily be reversed for alternative motor installations
• High-quality construction with ball bearings and hardened steel shaft
• Quite, lightweight operation

40–45A brushless ESC
3S–4S Li-Po or 10- to 14-cell Ni-MH/Ni-Cd
11x8 to 14x7 prop

Application

Aircraft

Bushing Or Bearing

Bearing

Connector Type

3.5mm Bullet

Idle Current (Io)

2.40A @ 10V

Input Voltage

11.11 - 16.8V

Maximum Burst Current

45A

Maximum Continuous Current

32A

Motor Design

Outrunner

Motor Type

Brushless

Outer Diameter

1.4" (35 mm)

Product Length

2.1" (42 mm)

Product Weight

143g

Recommended Prop Range

11x8 to 14x7

Resistance

.03 ohms

RPM/Volt (Kv)

870

Shaft Diameter

5mm (.20 in)

Speed Control

Sold Separately

Voltage

11.4 - 16.8V
