Saito 3-Cylinder Steam Engine T3DR - 7133/01
Saito 3-Cylinder Steam Engine T3DR - 7133/01



Alternative Views:
List Price: CAD$1,228.50
Price: CAD$1,149.98
Savings: CAD$78.53

Stock Status:Contact us for availability

Item Number: AER713301
Qty:

Description

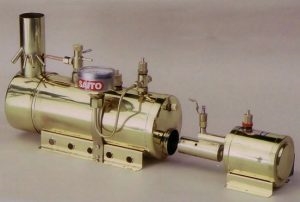

Beautiful mechanism of 3-double-acting cylinders generates smooth & torqueful revolution. Best fit the boiler B3.

Steam Engine T3DR – Saito Beautiful mechanism of Three double-acting cylinders generates smooth rotation with strong torque. The recommended boiler for this engine is the B3. This engine is recommended for boats 1.2m to 2m long. Displacement 8.1 cc Bore 120 mm Stroke 12 mm Valve type: Slide valve Compatible boiler B3 Length 145mm Width 70mm Height 100mm Weight 2 lbs


Technical specifications

Bore 12 mm
Stroke 12 mm
Speeds 5,700 rpm
Power approx. 0.04 hp
Pressure 2 kg / cm²
Cylinder capacity 8.1 ccm
Max. Torque 1.250 g.cm
suitable boat sizes 120-200 cm


Dimensions

3-cylinder steam engine
length 140 mm
Width 58 mm
Height 100 mm
Weight 930 g
