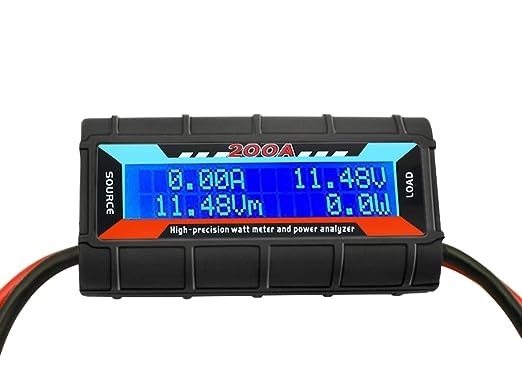

Test Range and Display format:

Operates from 4.8-60V (0V with optional auxiliary battery)

Measures 0-60V, 0-200A, 0-6554W, 0-6554Wh, 0-65Ah

Voltage test range: 0~60V, resolution 0.01V.

Current test range: 0~ 200A, resolution 0.01A.

Active Power test range: 0~6554W, resolution 0.1W.

Energy test range: 0~6554Wh, resolution 0.1Wh.

Charge test range: 0-65Ah, resolution 0.001Ah.

In Circuit Resistance: 0.001 Ohms.

Operation Current: 7 mA.

Auxiliary Power Voltage: 4.0V ~ 60V

Measurement Update period: 400mS.

Signal Sampling Rate: sample/s.

Data Queue Sequence time: 2 seconds.

Size: 8.3cm x 4.7cm x 2cm - 3.27inch x 1.85inch x 0.79inch

Display Screen: 1602 STN LCD
