O.S. 30600 FS-62V Four Stroke Glow Engine w/Muffler

Home > Airplanes > Power System > Engines & Parts > Aircraft Engines > 4 Cycle Engine > OS Engines 4C >

Alternative Views:

List Price: CAD$418.50

Price: CAD$399.98

Savings: CAD$18.53

Stock Status:Contact us for availability

Item Number: OSM30600

Qty:

Description

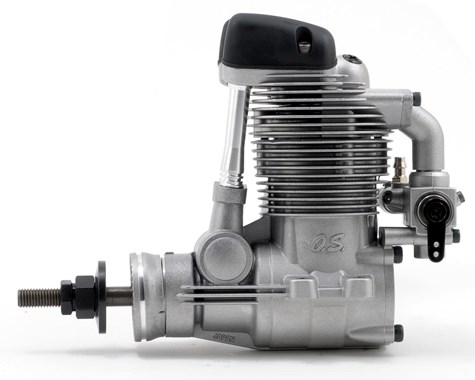

This is the O.S. FS-62V Four Stroke Glow Engine. The new O.S. FS-62V has the multi-cylinder look, deeper bass sound and 4-stroke power that will perfectly complement any airplane. Its classic looks are a flashback to aviation’s Golden Age, and its power is state-of-the-art. Whether it’s mounted inside the cowl of a scale model or installed on a sport model with the engine exposed, the FS-62V delivers new levels of performance.

Features:

Bold, new head design with angled valve layout and individual valve covers
Machined aluminum pushrod guides
New Jet Stream Silencer has a unique outline, attractive fin shape, and produces an authentic, low amplitude sound that’s ideal for scale planes
Steady power at all times due to the optimal balance between high combustion efficiency and effective cooling
Quick and powerful response
Easy to adjust
Mounts in the same bolt pattern as the O.S. 56FS-a
Carburetor is reversible (180°) and mounted on the center line, which makes it easy to install in a wide variety of models

Specifications:
Displacement: 0.617 cu in (10.11 cc)
Bore: 0.98 in (25.0 mm)
Stroke: 0.81 in (20.6 mm)
Practical RPM: 2400 – 11,000
Power Output: 1.12 hp/11,000 rpm
Engine Weight: 15.6 oz (442 g)
Muffler Weight: 1.55 oz (44 g)

Includes:

(1) F glow plug
(1) F-4050 Jet Stream Silencer & Header
(2) Lock nuts

[PDF]

FS-62V Manual - O.S. Engines
