Skywing RC 60" Laser260-D (white yellow ) 70E 1.5M
Skywing RC 60" Laser260-D (white yellow ) 70E 1.5M



Price: CAD$589.98

Stock Status:1
Item Number: SWR60LASER260DWY
Qty:

Description


----------------------------------------------------------------------------------------------------------------------------------

Product Information
1) Advanced construction for today's demanding pilots
2)Factory assembled detailed canopy interior
3)Pre-baffled cowling for maximum motor cooling
4)Fast assembly time with pre-hinged and pre-sealed ailerons and elevators
5)preinstalled high quality extensions.
6)Incredible value with carbon fiber wing tube, landing gear and tailwheel assembly.
7)Wing bag and electric spinner - INCLUDED
8)Skwying's PATENTED rapid assembly wing design!

----------------------------------------------------------------------------------------------------------------------------------------------------------------------

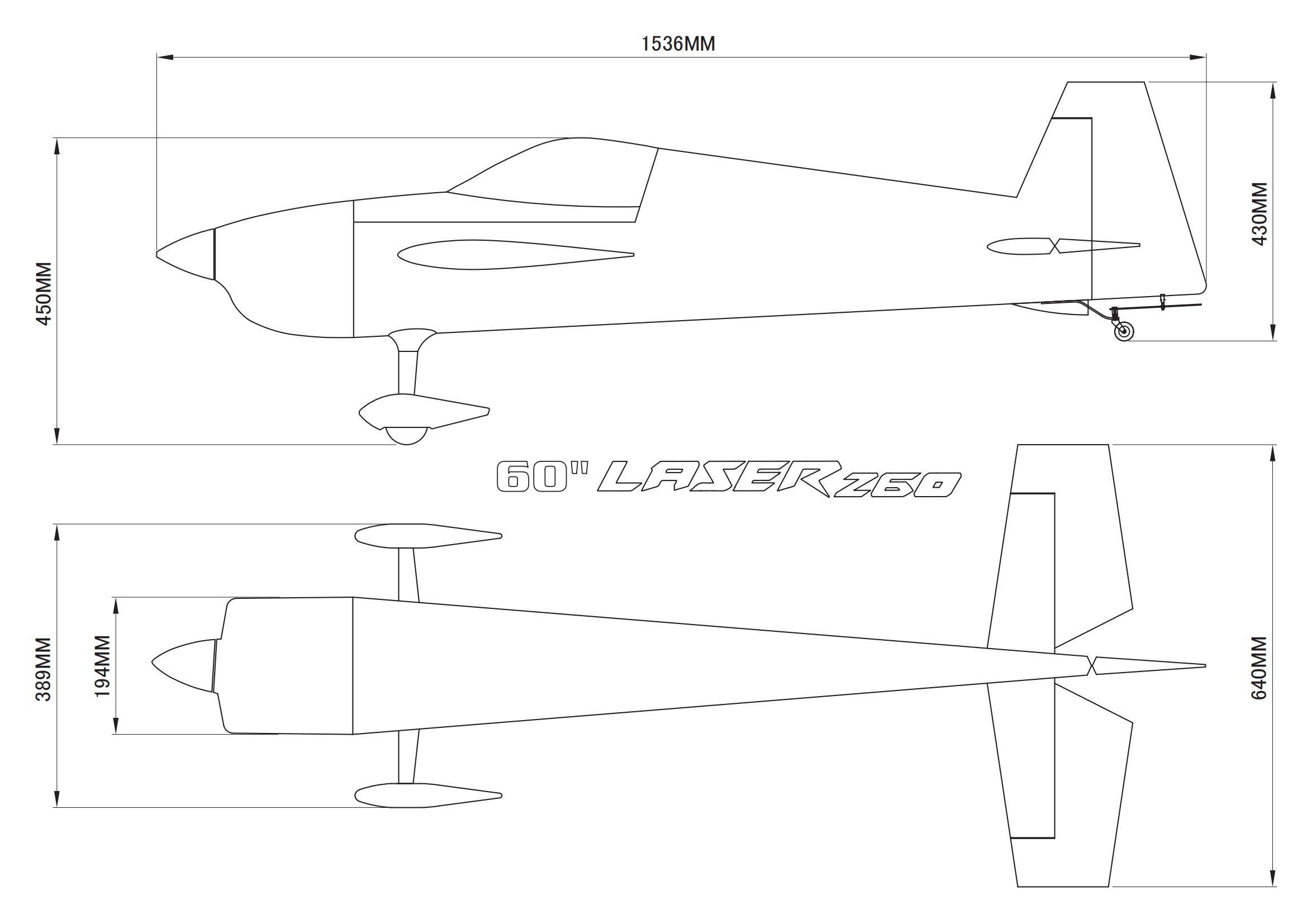

PRODUCT DATA

Wingspan

60 in./1524mm

Lenqth

61.5 in./1536mm

Wing Area

739.2sq in/47.69dm²

Weight

6.4 lbs/2.9kg

Packaging Size/ Weight

134*49*27cm/7.2kg

----------------------------------------------------------------------------------------------------------------------------------------------------------------------



----------------------------------------------------------------------------------------------------------------------------------------------------------------------

Test device(工厂测试设备)

【Motor 电机】:dualsky XM5050EA-KV480

【ESC 电调】:Hobbywing Platinum 100A V3

【Servos 伺服】:35*15*32.8mm/Torque(9KG)

Propellor 桨】:15*8 16*8

【power supply 电源】:6S/3300-3700mah

【spinner 整流罩】:2.5”(63mm)

【servo arm 摇臂】:Elevator 升降=1.25" *2 Aileron 副翼=1.25" *2 Rudder 方向=1.25" *1

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------

Requires

1) Digital High Torque MINI Servos(35.5*15MM/10kg)*4pcs
2) 1.25" Arms - tapped for 2mm hardware (ailerons x 2, elevator x 2)*1
3) 90A-120A brushless ESC*1
4) 70e brushless motor (Dualsky XM5050EA V3 515kv) *1
5) 16X7 OR 16X8 electric propeller*1
6) 6s 3000-4000mah LiPo battery*1
**MOTOR LENGTH SHOULD NOT EXCEED 65MM FROM BACKPLATE TO PROP HUB**

Product details photo(产品细节图)




















----------------------------------------------------------------------------------------------------------------------------------------------------------------------


Appreciation of static pictures(静态图片欣赏)






















Flight appreciation(飞行图片欣赏)















Color scheme;



Laser260-C (white red )
Reference cover color number(Oracover: white-10, red-23 ,dark blue 40-052,pearl charcoal-77)




Laser260-D (white yellow )
Reference cover color number(Oracover: white-10, cub yellow-30 ,dark blue 40-052,pearl charcoal-77)
