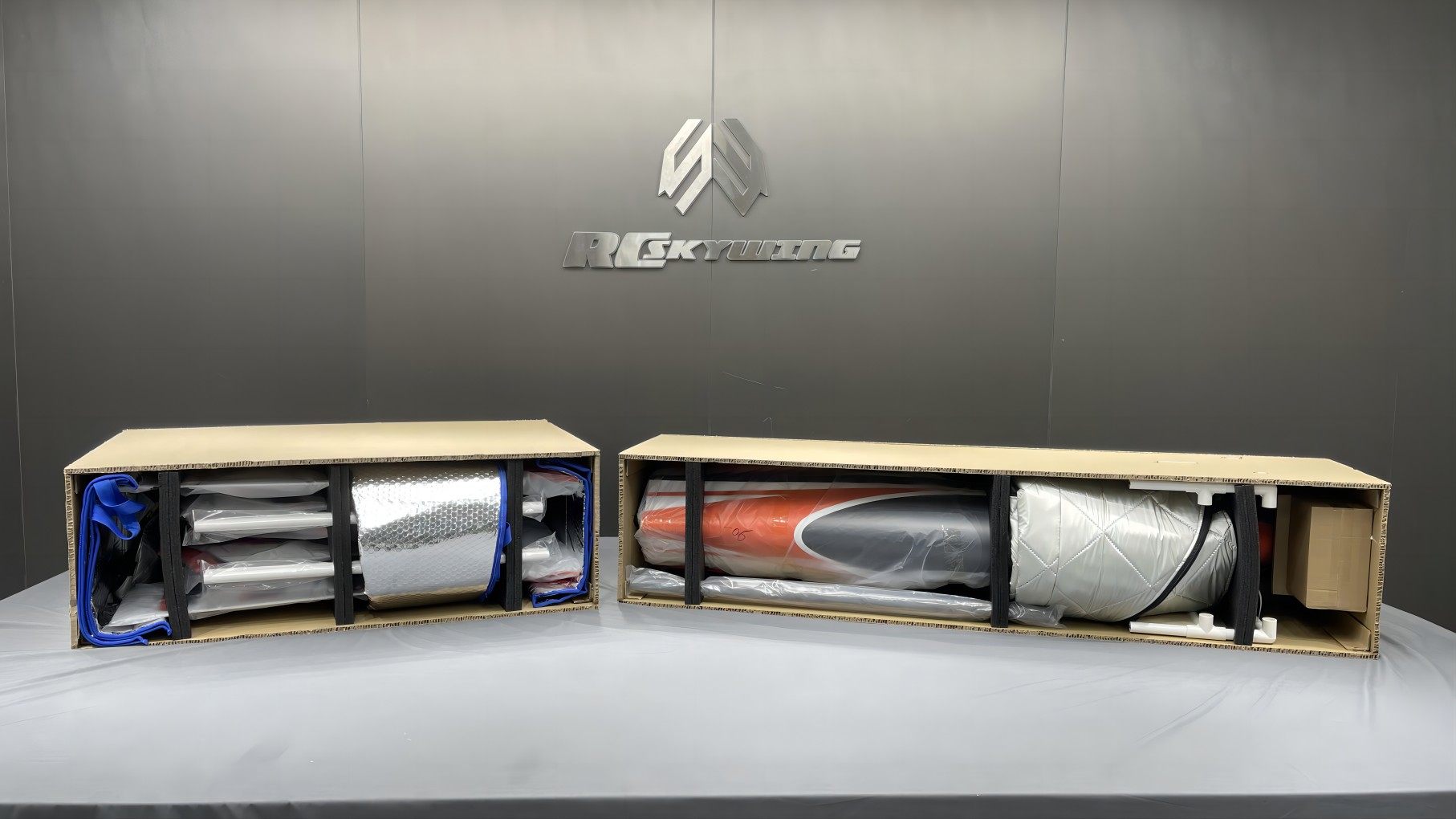

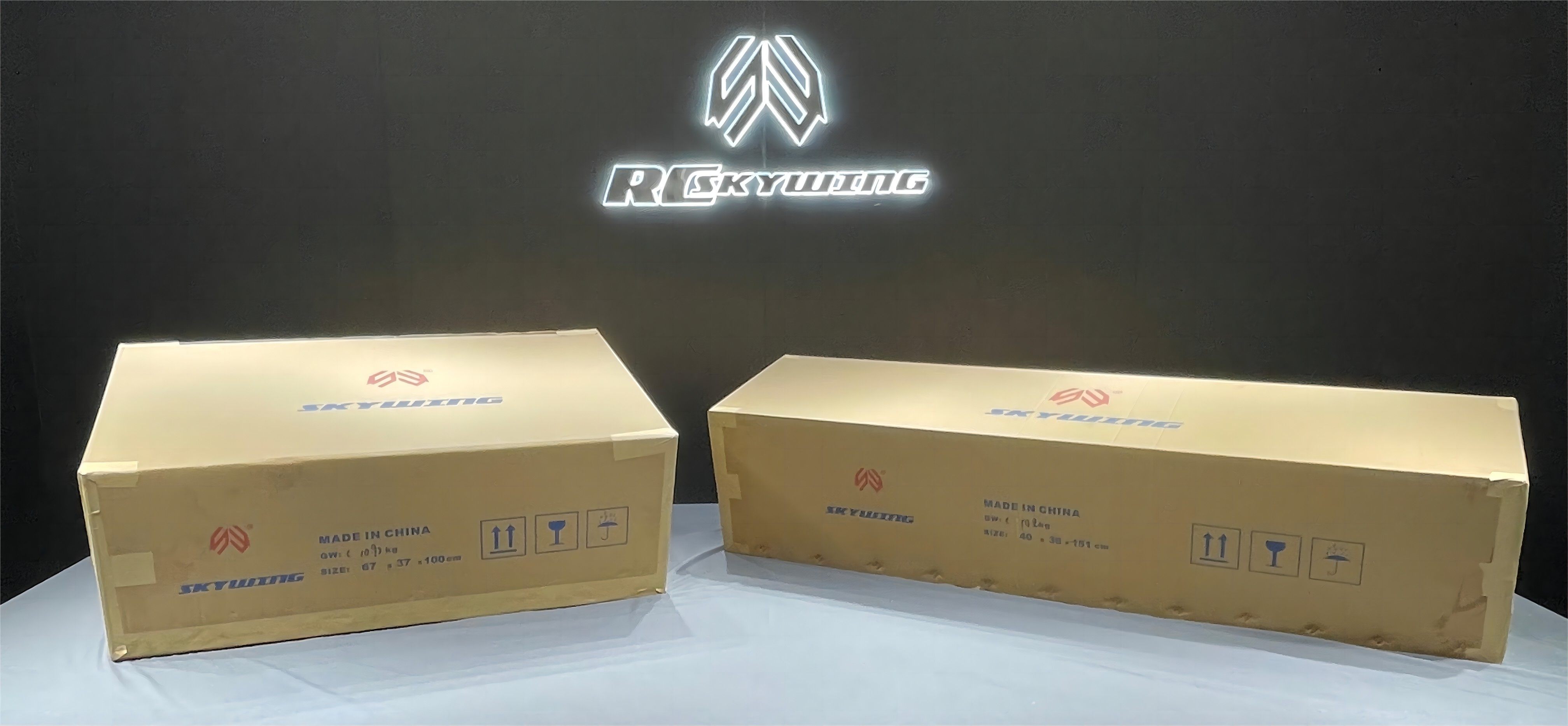

Unboxing display（开箱展示）

Product details video display（产品细节视频展示）

Installation video instructions（安装视频说明）

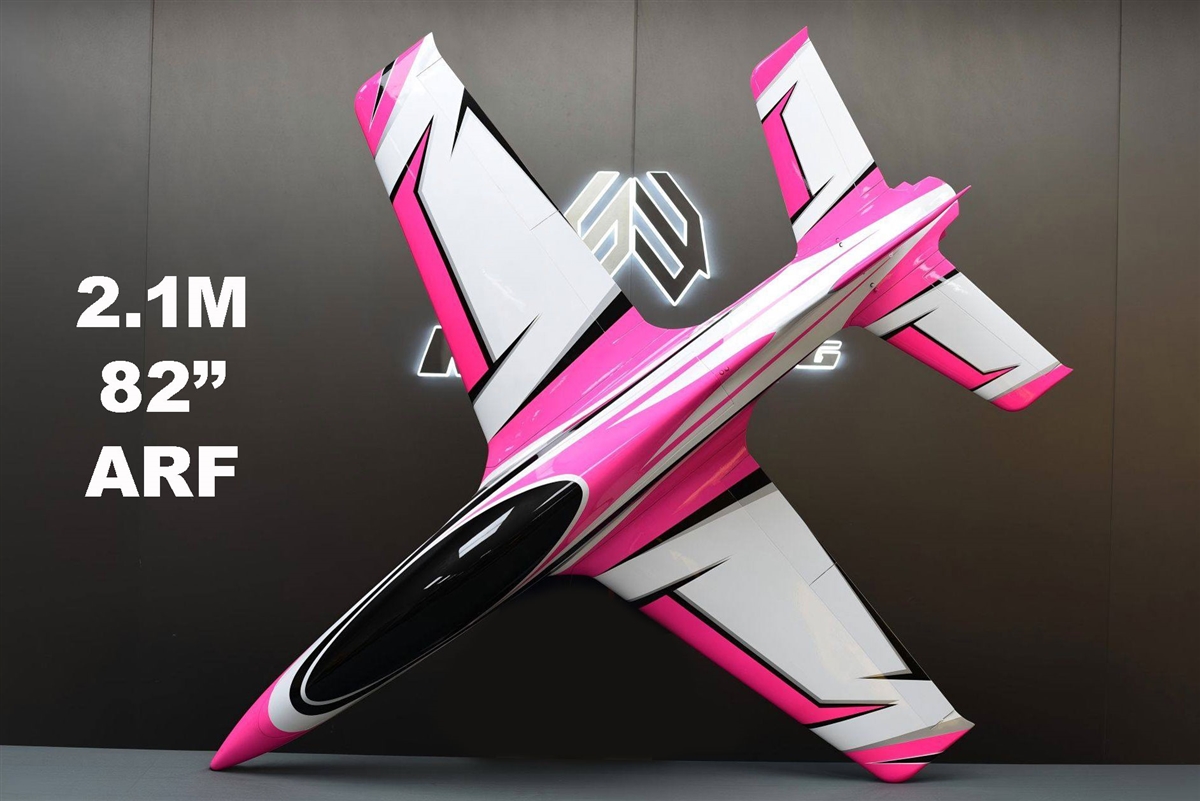

Skywing RC proudly presents its groundbreaking 2.1m jet, a marvel of innovation in the world of remote-controlled aircraft. This innovative first release from Skywing boasts a design that emphasizes swift field assembly, allowing enthusiasts to get airborne in record time. Each model comes equipped with high-quality completion items, ensuring a superior flying experience straight out of the box. Skywing RC's commitment to excellence and user-friendly design is evident in every detail making this jet a must-have for Sport Jet and 3D Jet Pilots alike!

Hardware included in the product:

1. Protective bag for the complete set of products
2. skywing specially customized high-quality expansion cable
3. skywing patented product orange connection device
3. JP electric retractable landing gear
4. jet pipe
5. Vector (including vector putter)
6. tank(3500ml), smoke box(1000ml), UAT tank(200ml),fuel pipeline,
7. Fuel and ventilation points (2 pieces each)
8. Assembly bracket (for landing gear retraction)
9. Power connector ((3x yellow XT60E, 1x black XT60E)
10. High quality magic ties (2 pieces)
11. Includes all pushrod parts
12. Each brand of engine guide installation marking plate
13. Marking board for measuring each control surface

Specifications/规格:

Wingspan/翼展;80 in./2032mm
Lenqth/机身长:82in./2080mm
Pre-flight weight/飞行前重量:23.15lbs/10.5kg（Battery included, no fuel!包含电池，不含油）

Packaging Size（包装尺寸）/ Weight（包装重量）:
Fuselage/机身=156*36*45cm/10.3kg

Wing/机翼=106*43*74cm/11kg

Turbine size:

• 120-140N for normal sport flying
• 160-190N for 3D vector flight

Servos size:
:) flaps* 2 pcs (standard size high torque 30KG) arms*2pcs=1.25"-M3
:) ailerons* 2 pcs ( size: 35x15x30mm-15kg ) arms*2pcs=1.0"-M3
:) elevators* 2 pcs (size: 35x15x30mm-15kg ) arms*2pcs=1.0"-M3
:) rudder* 1 pcs ( size: 35x15x30mm-15kg ) arms*1pcs=1.25"-M3
:) vector * 2 pcs (size: 35x15x30mm-15kg ) arms*2pcs=1.5"-M3
:) front wheel steering * 1pcs ( size: 35x15x30mm-9kg ) arms*1pcs=1.0"-M3

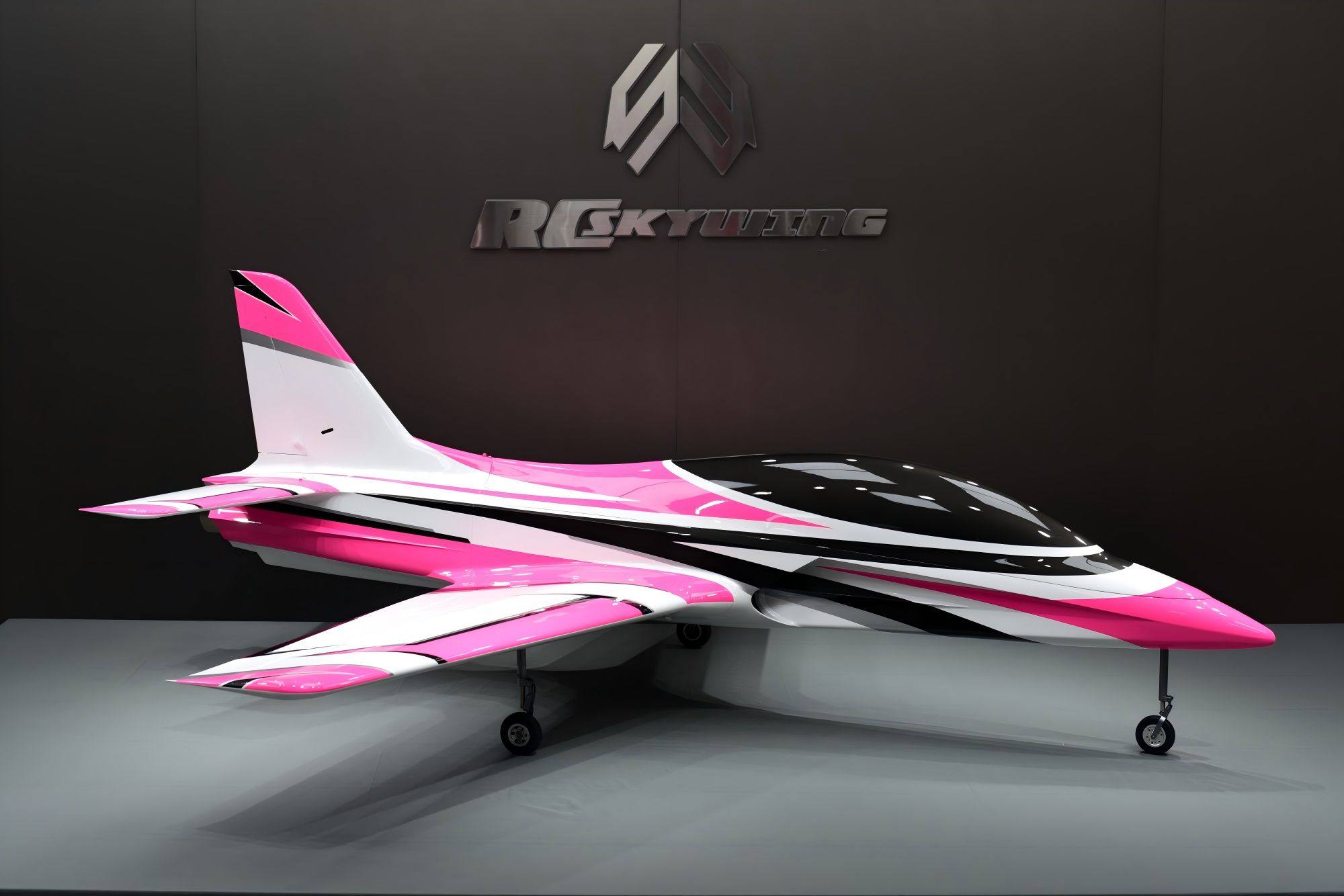

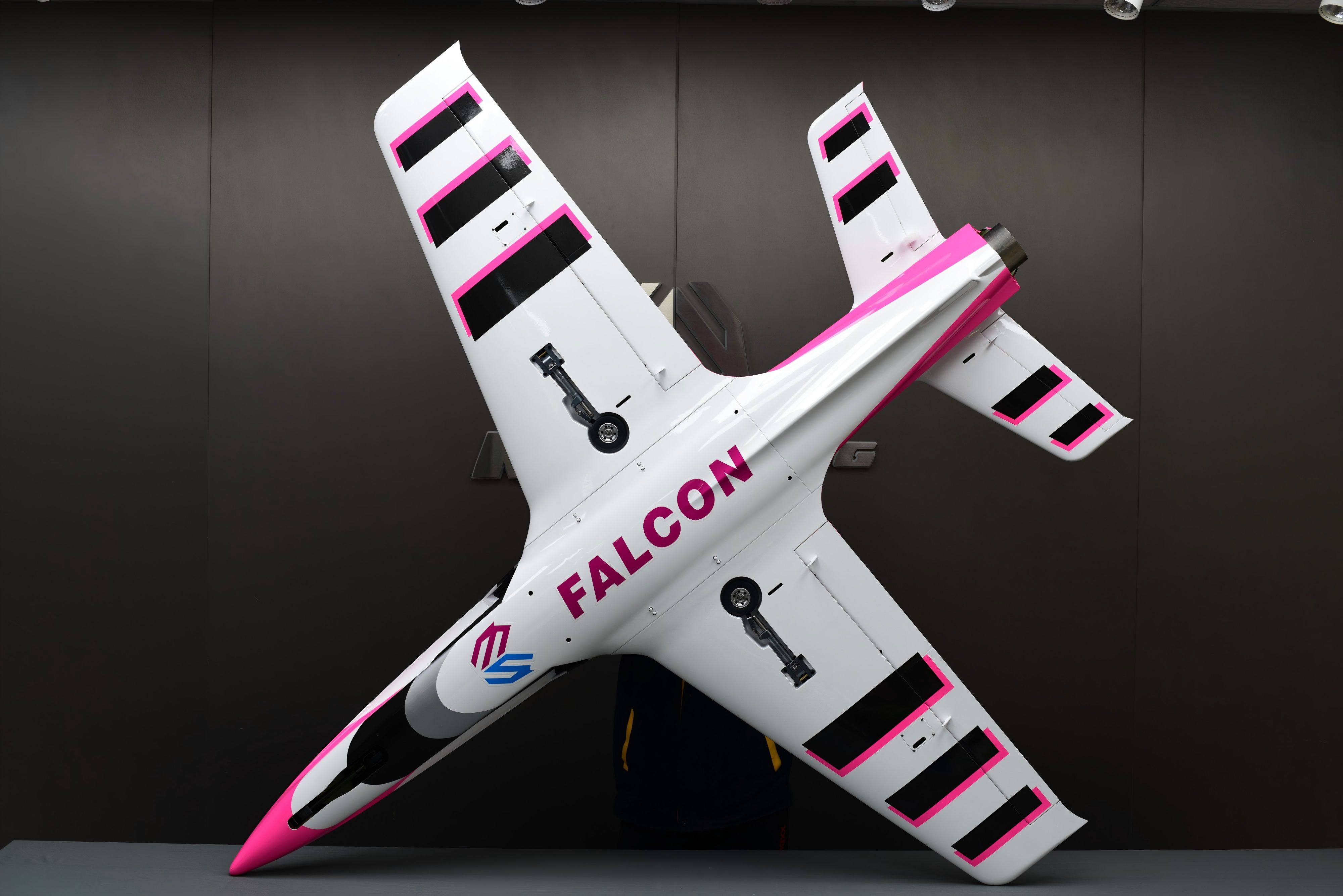

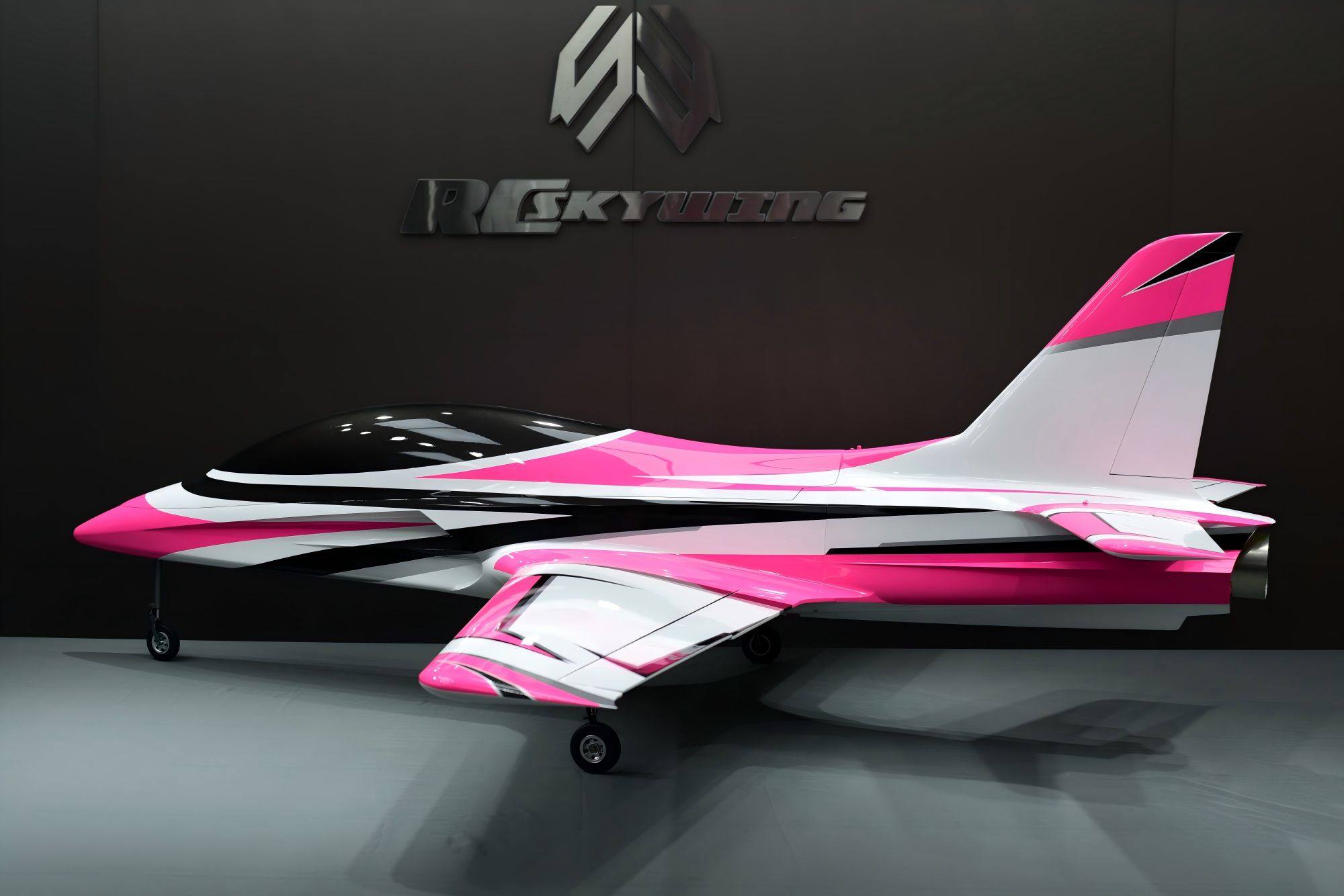

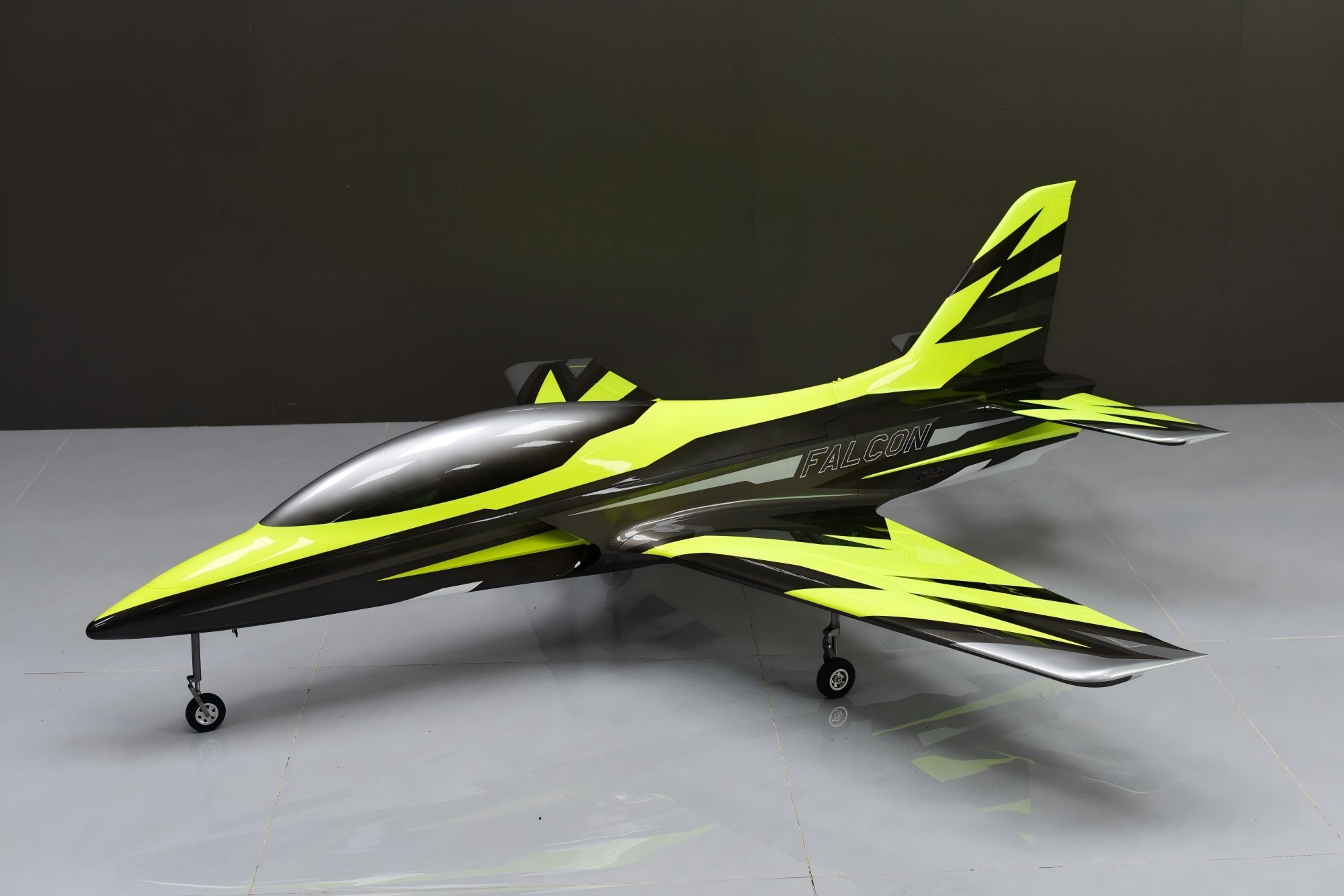

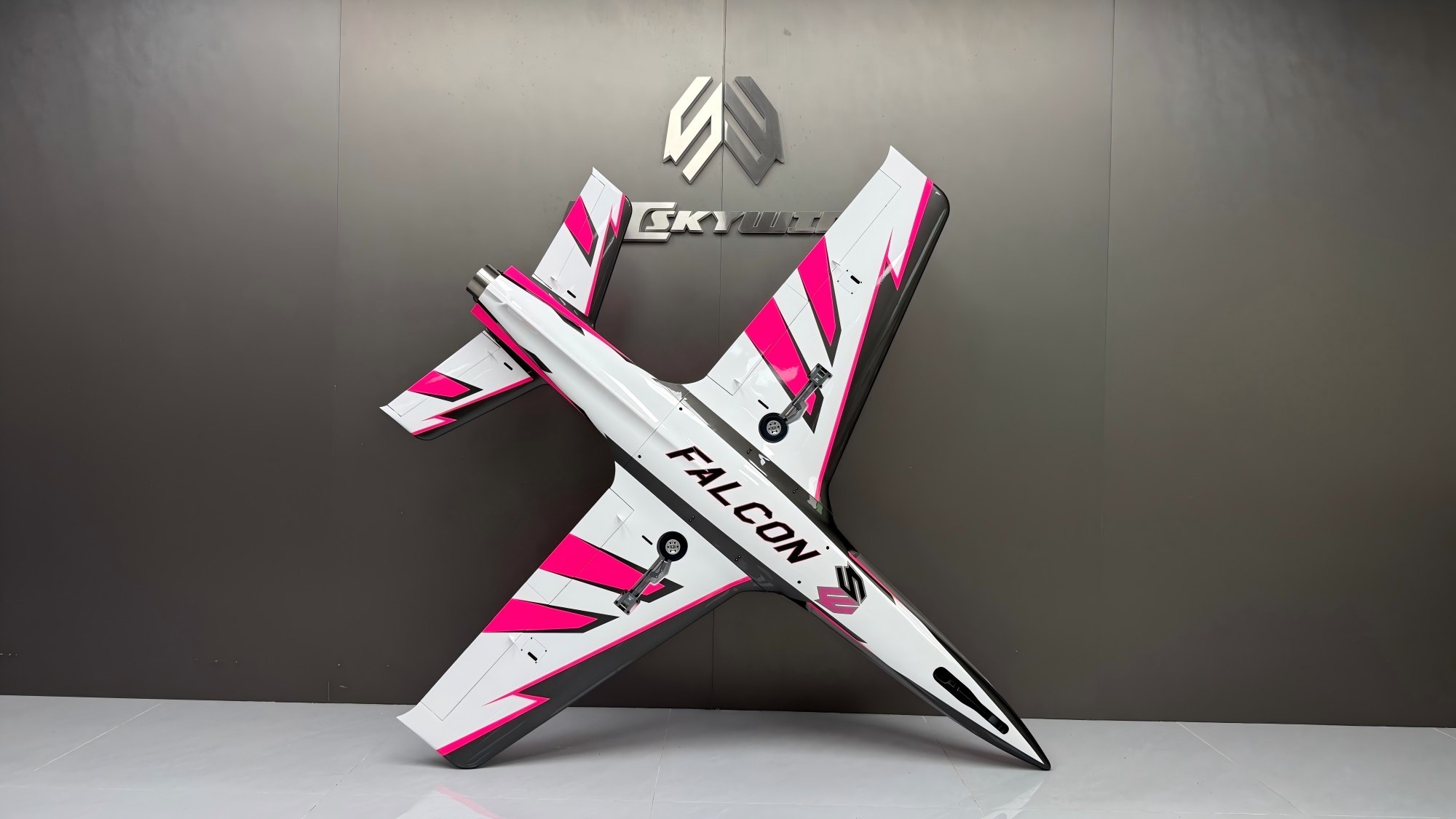

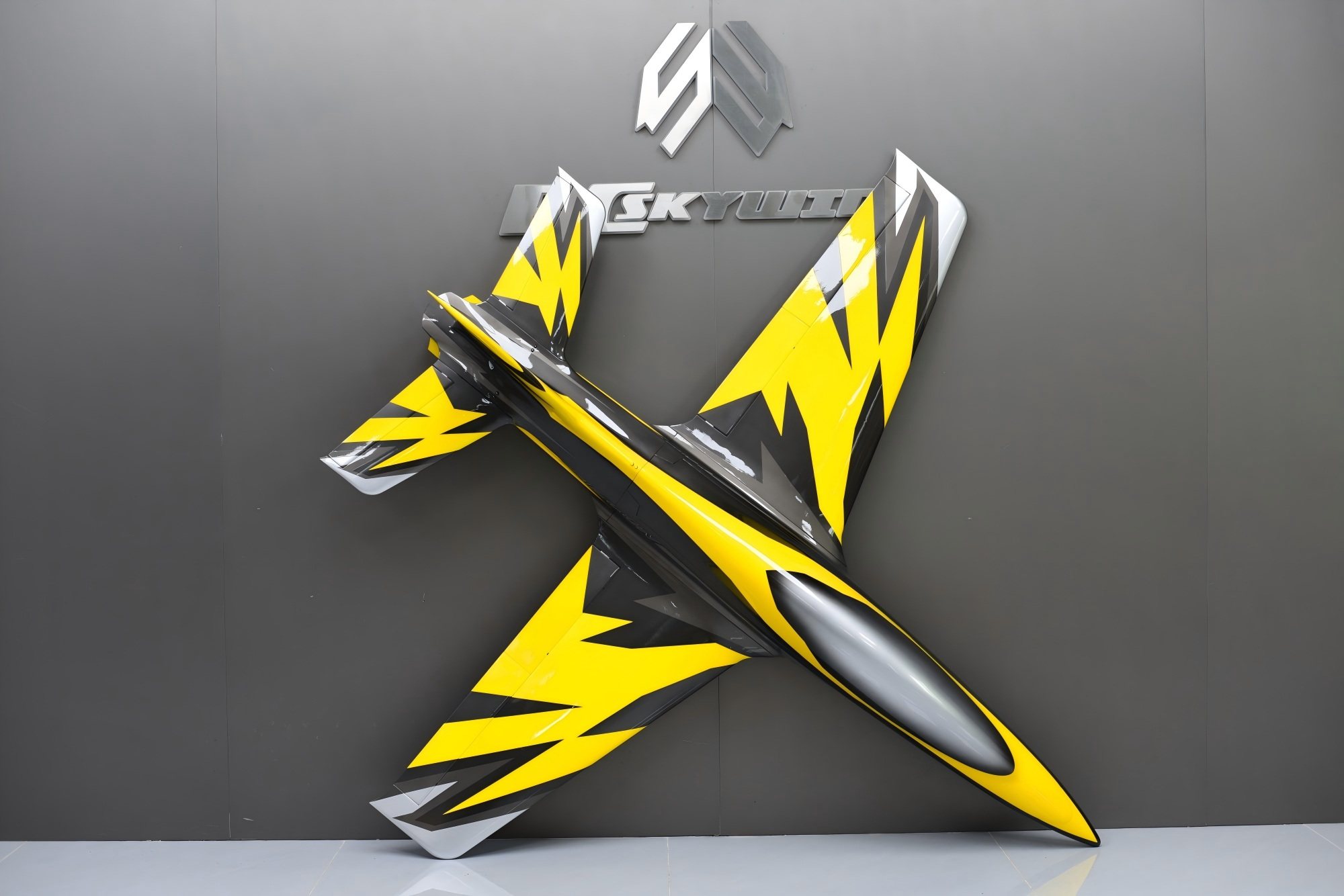

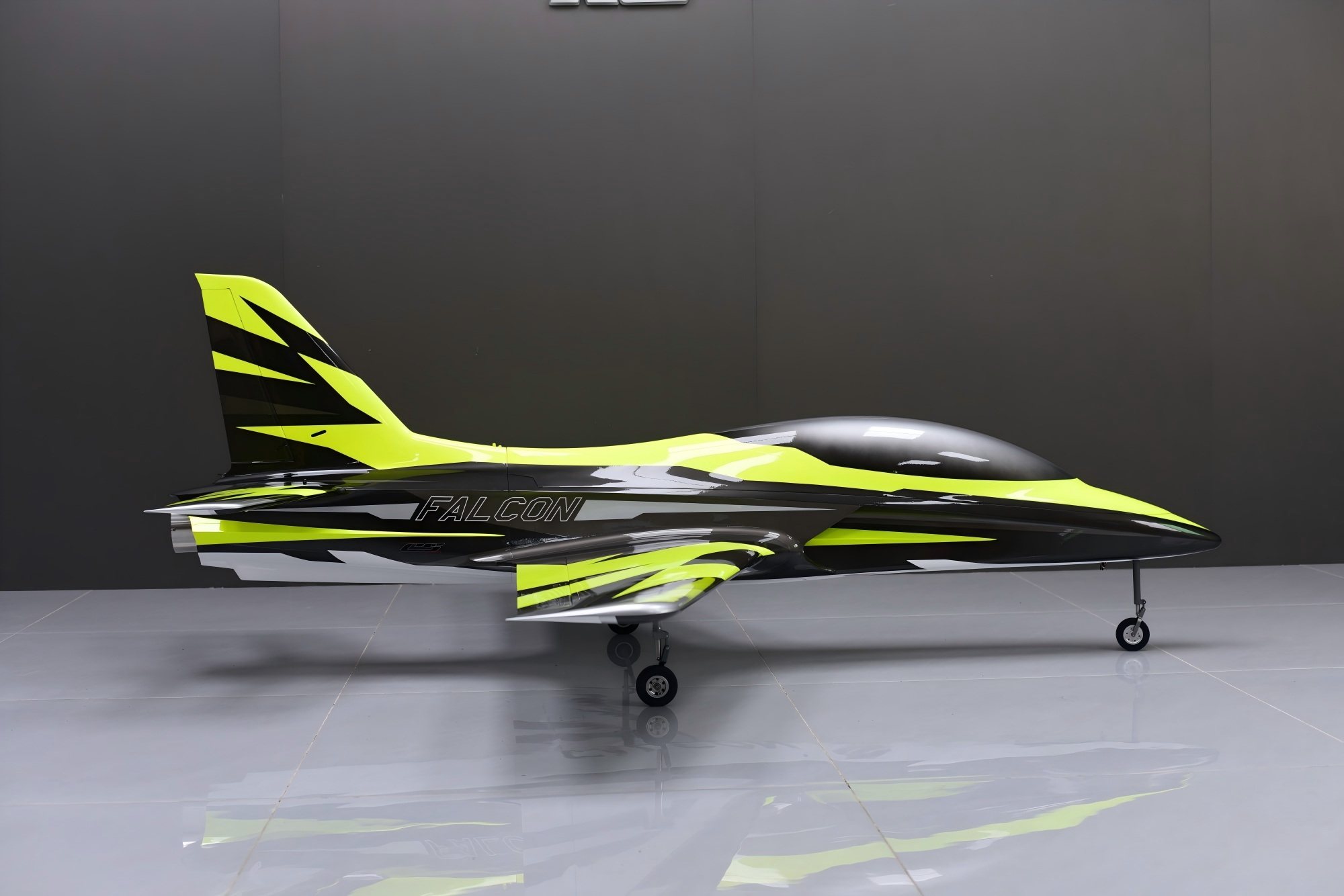

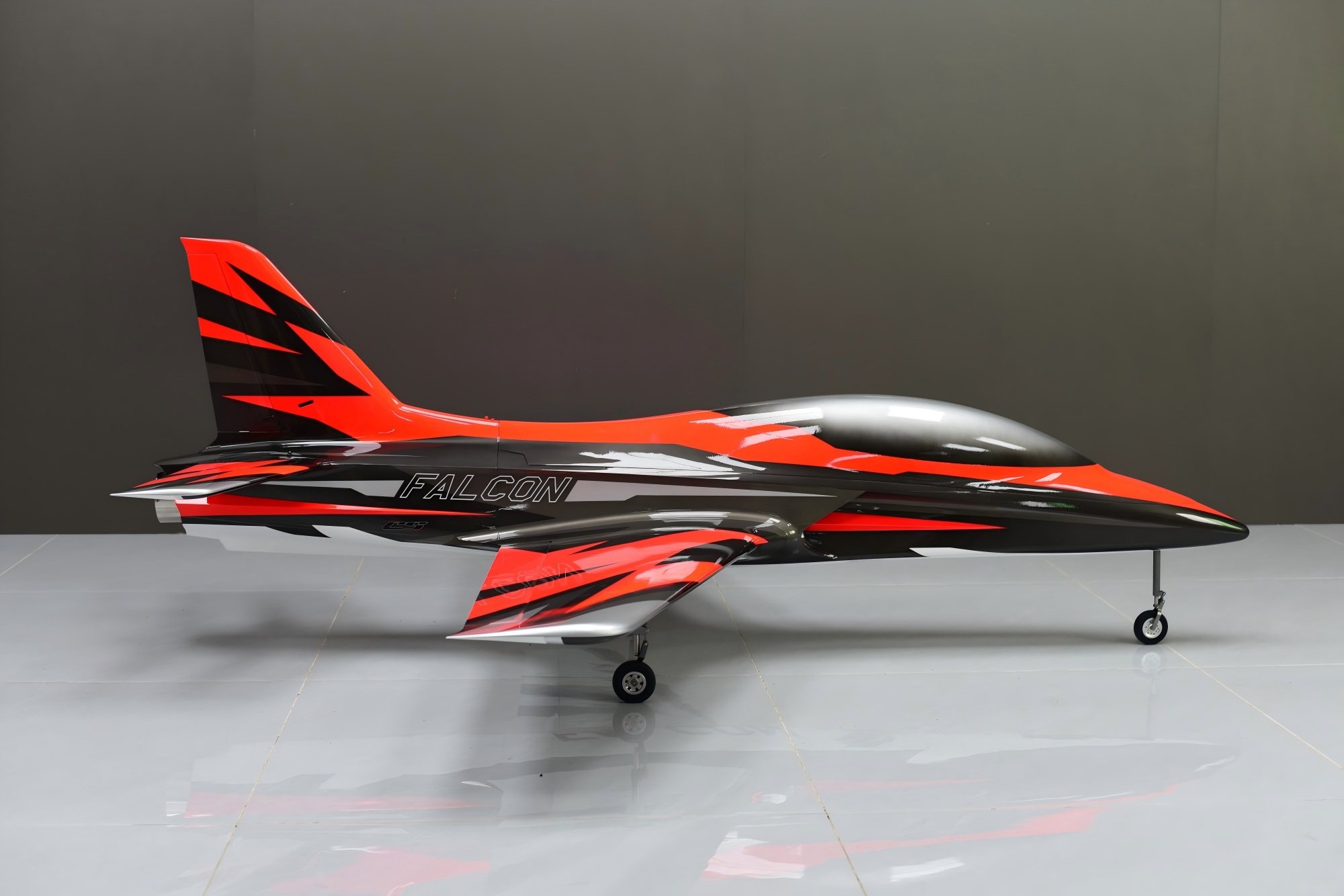

3 color schemes:(3种色彩方案）

We also provide special customized solutions that require additional customization fees

Product details photo（产品细节图）

Factory matched hardware（出厂标配的硬件）

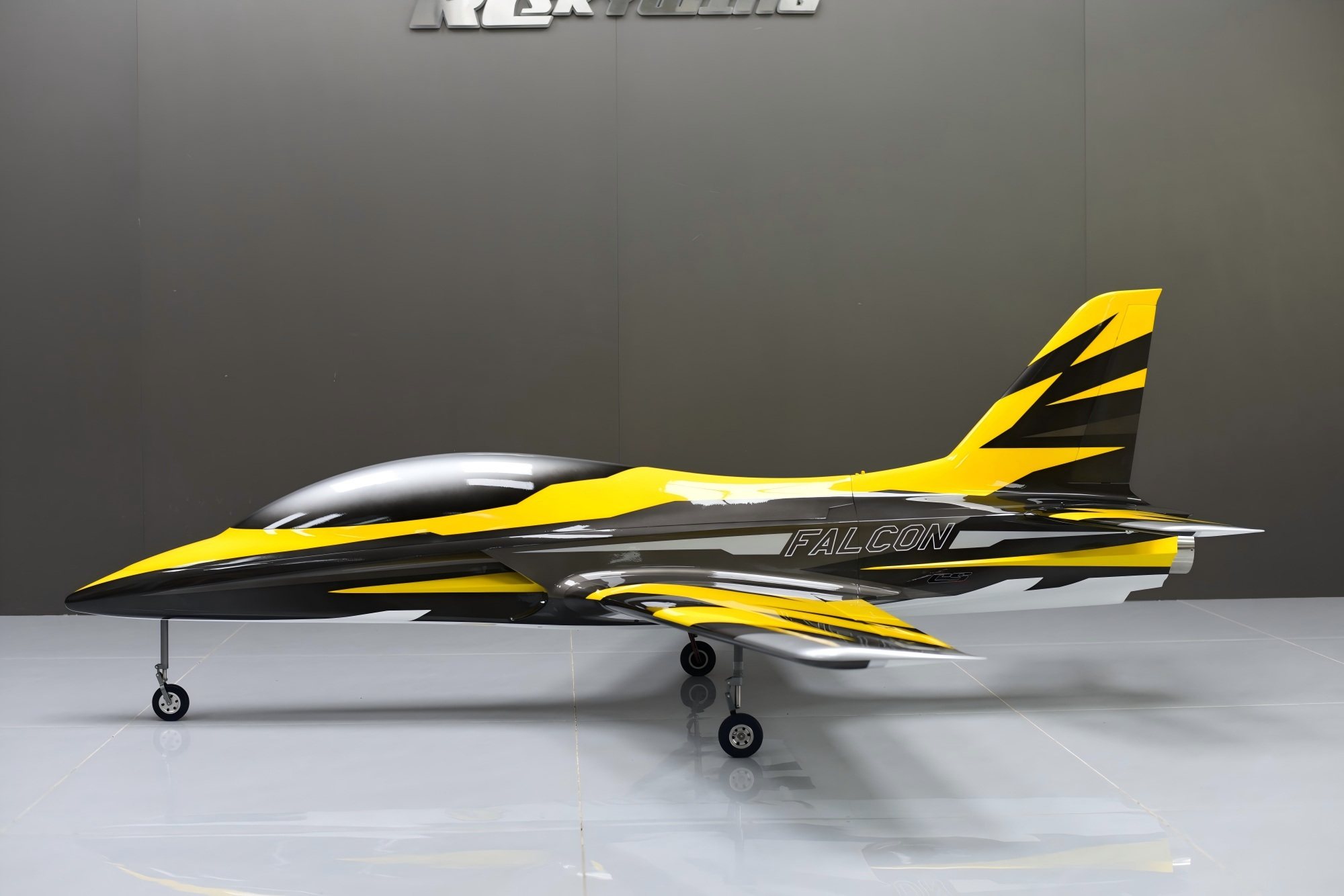

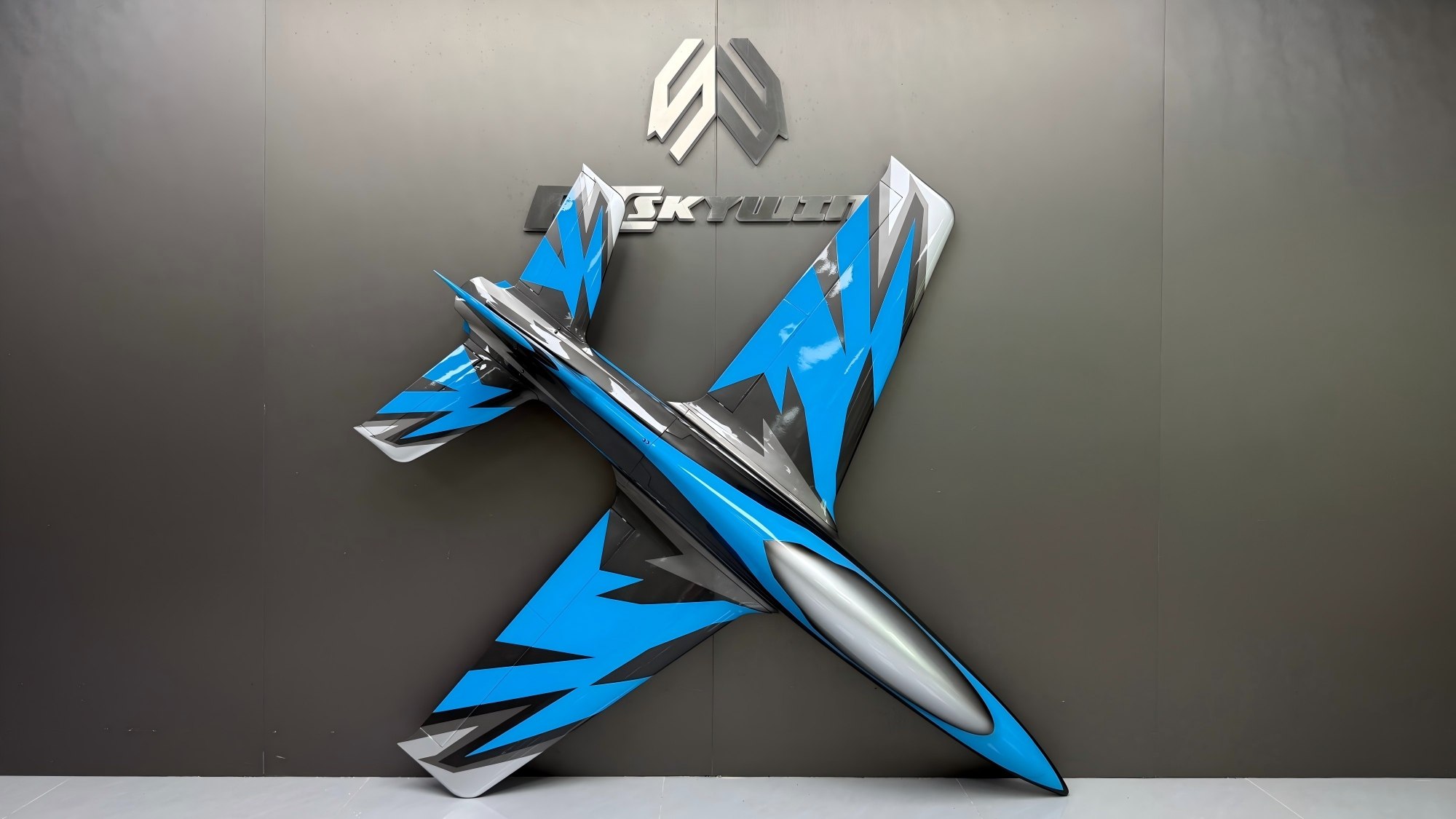

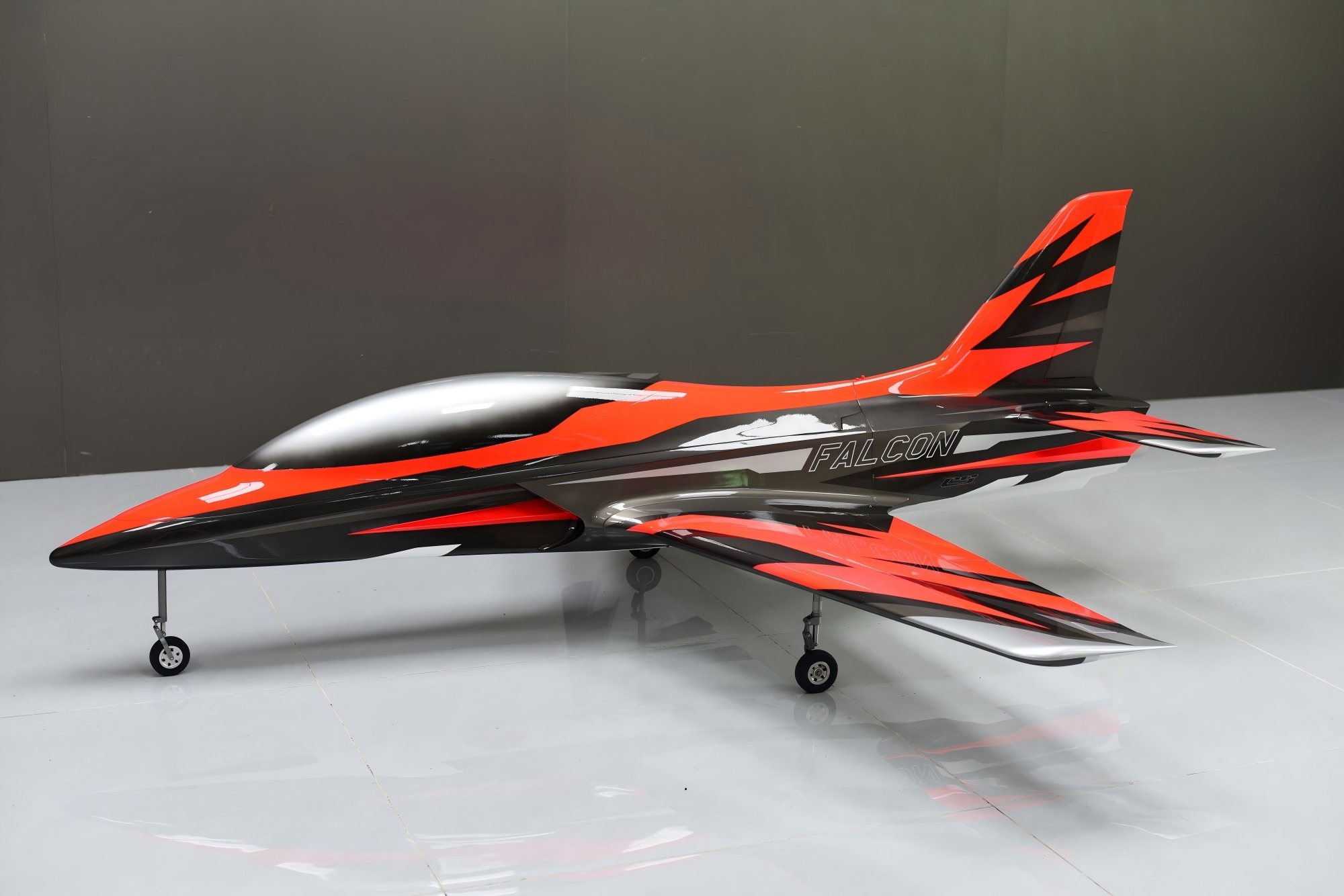

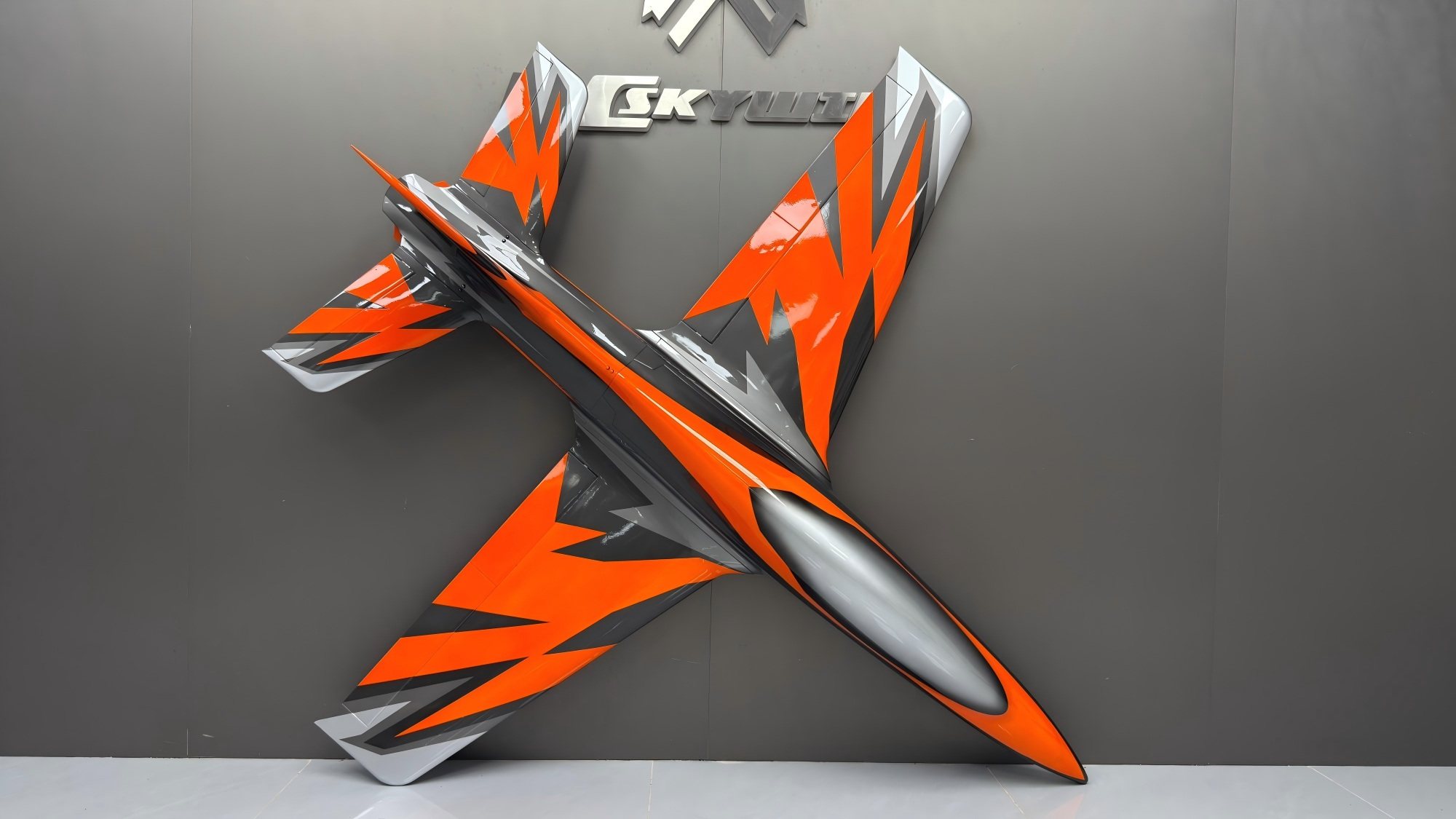

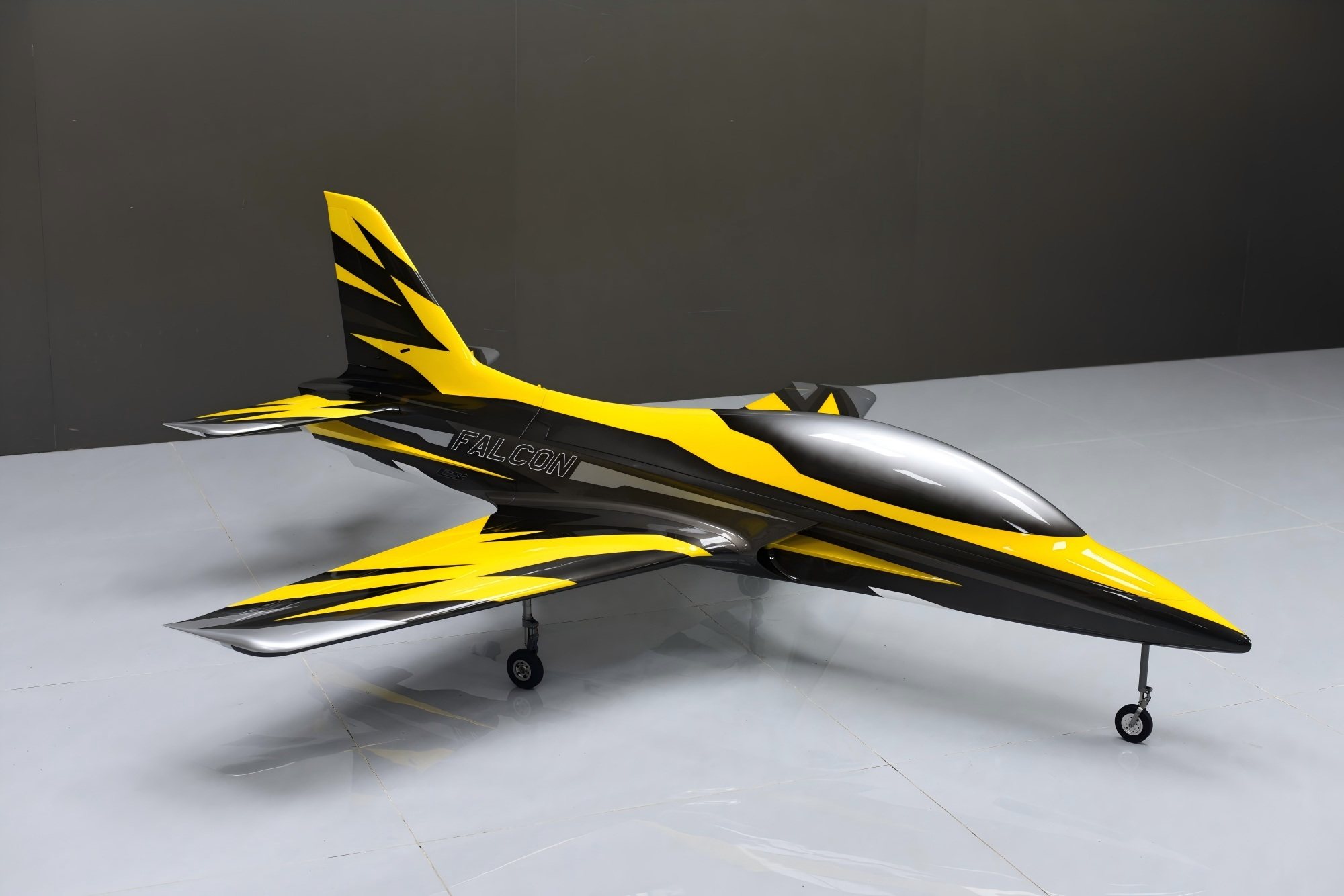

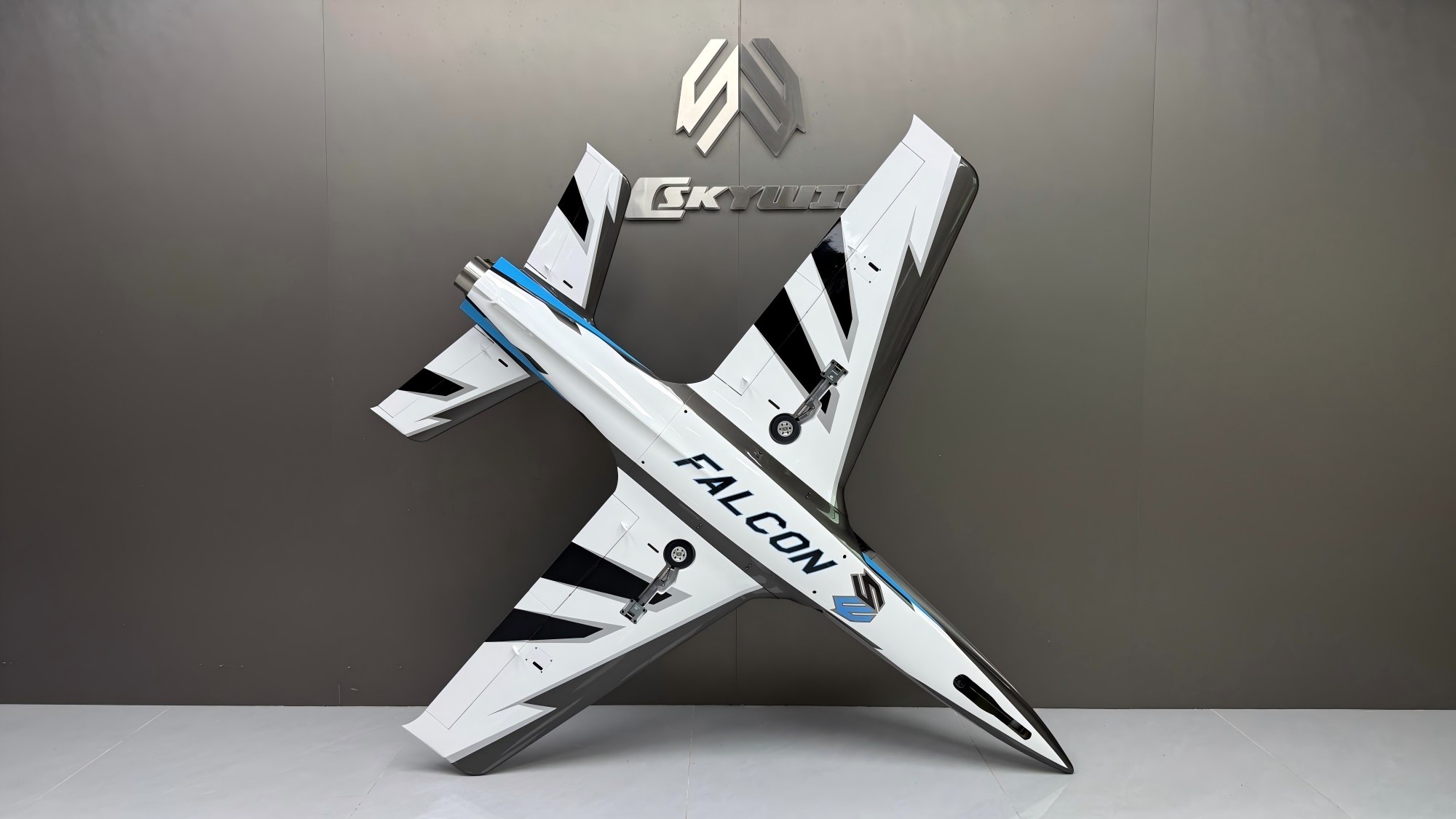

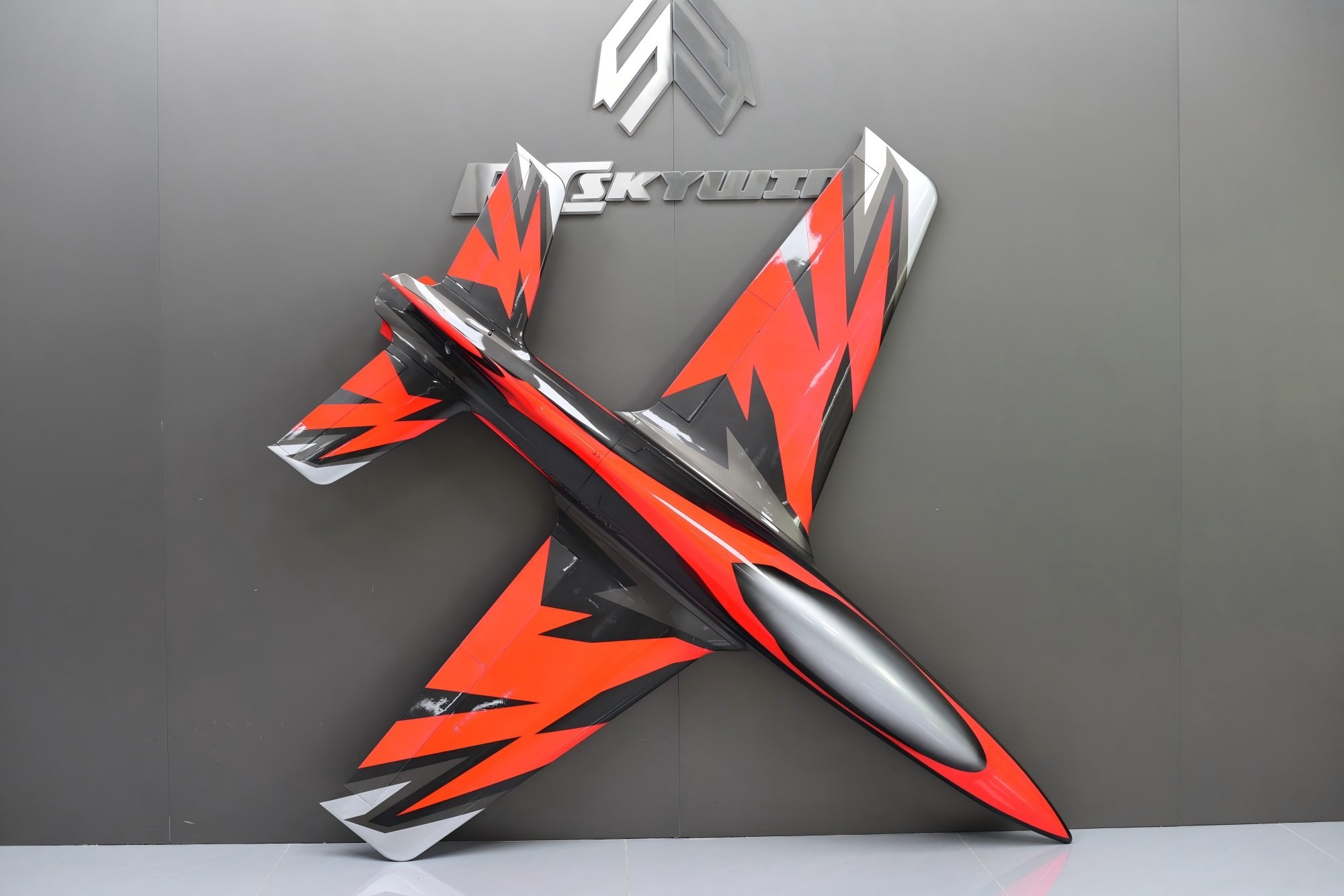

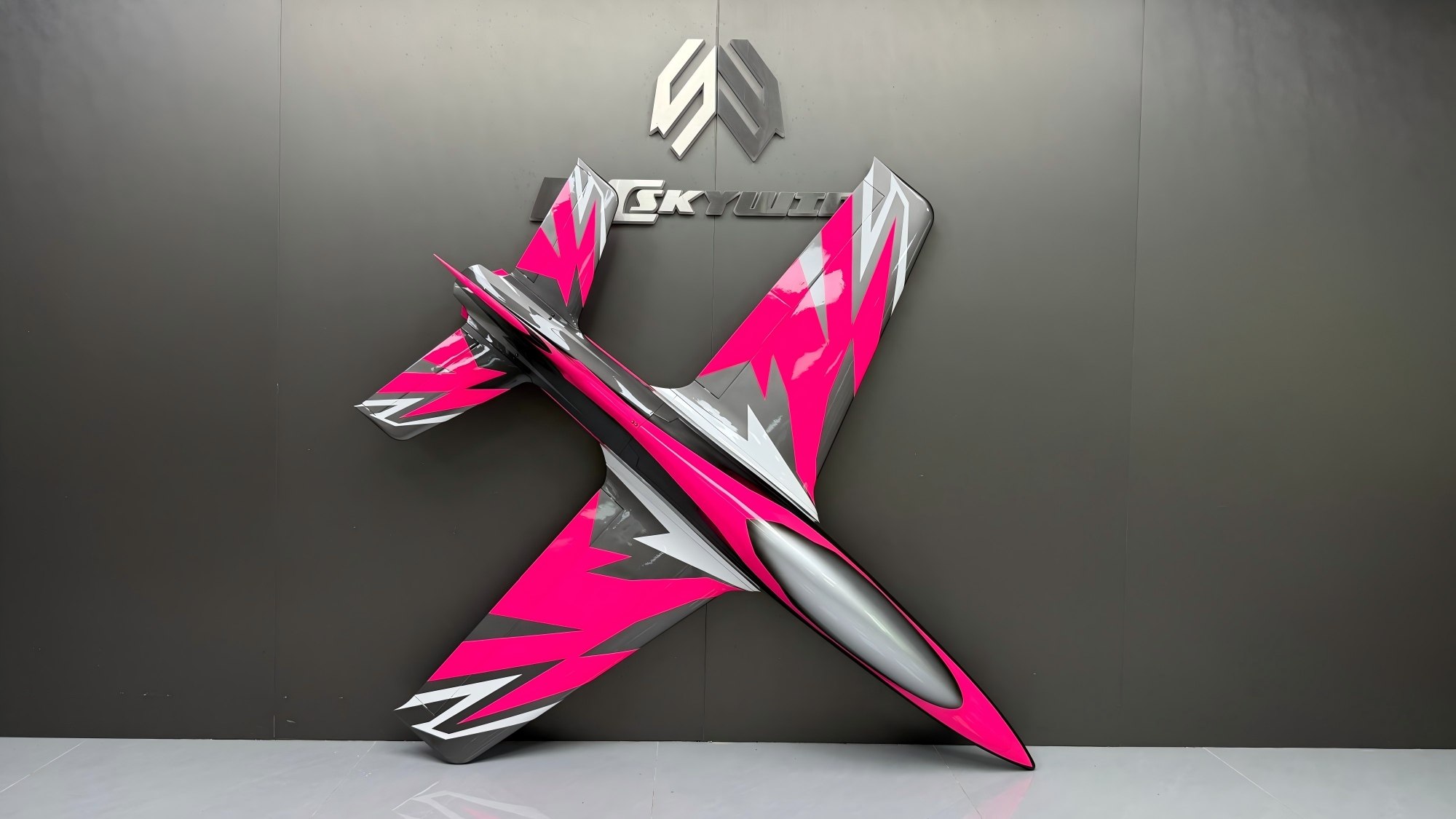

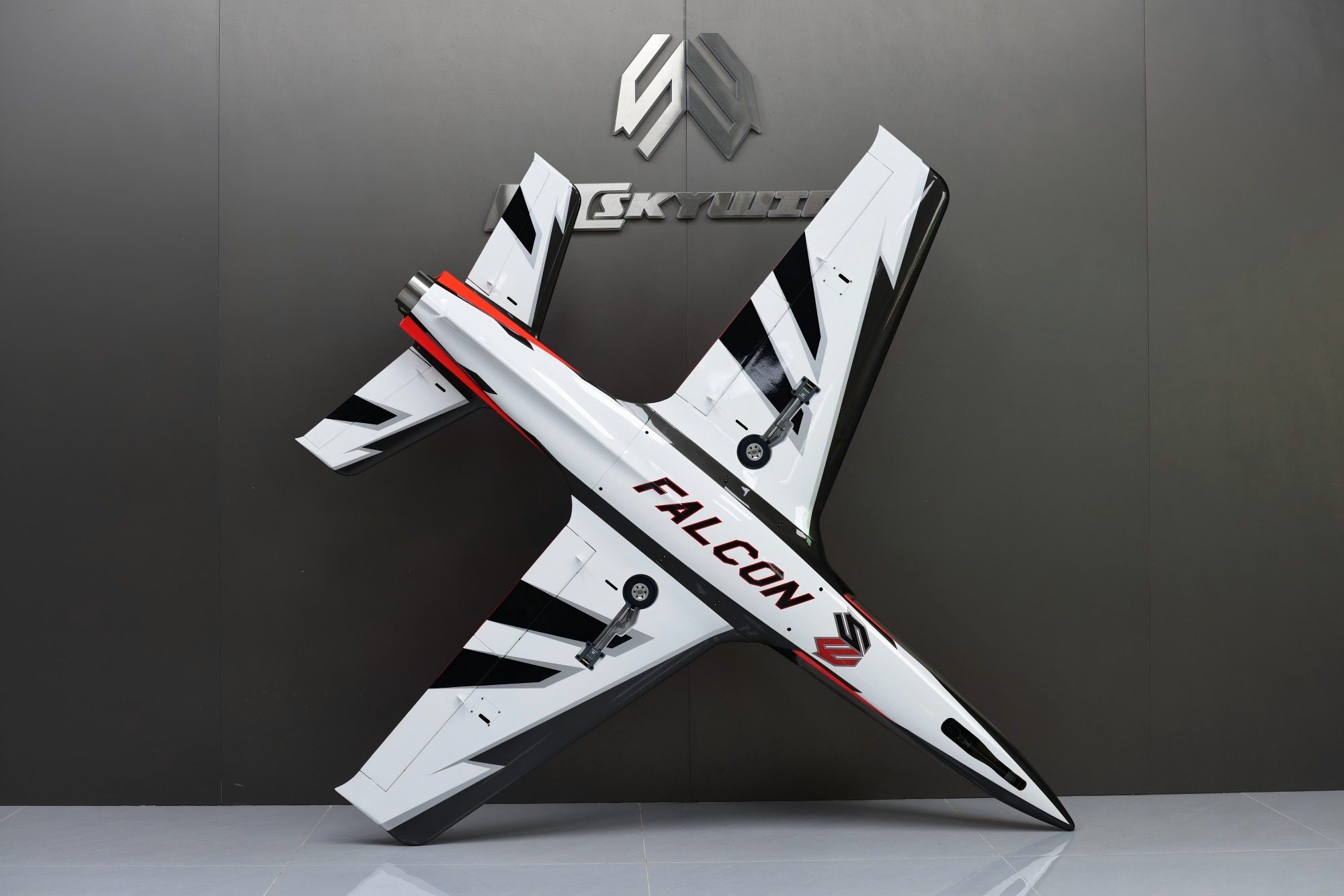

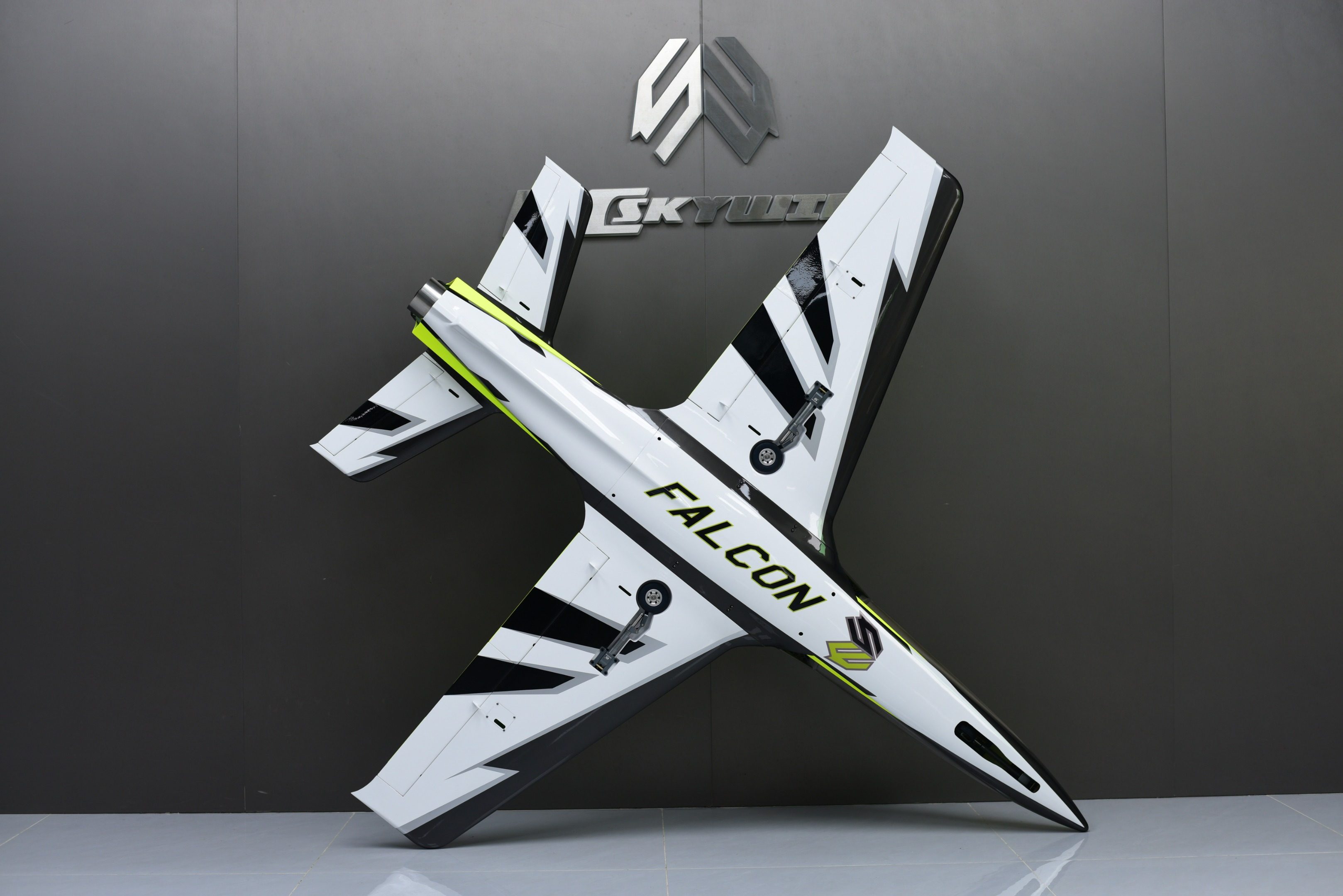

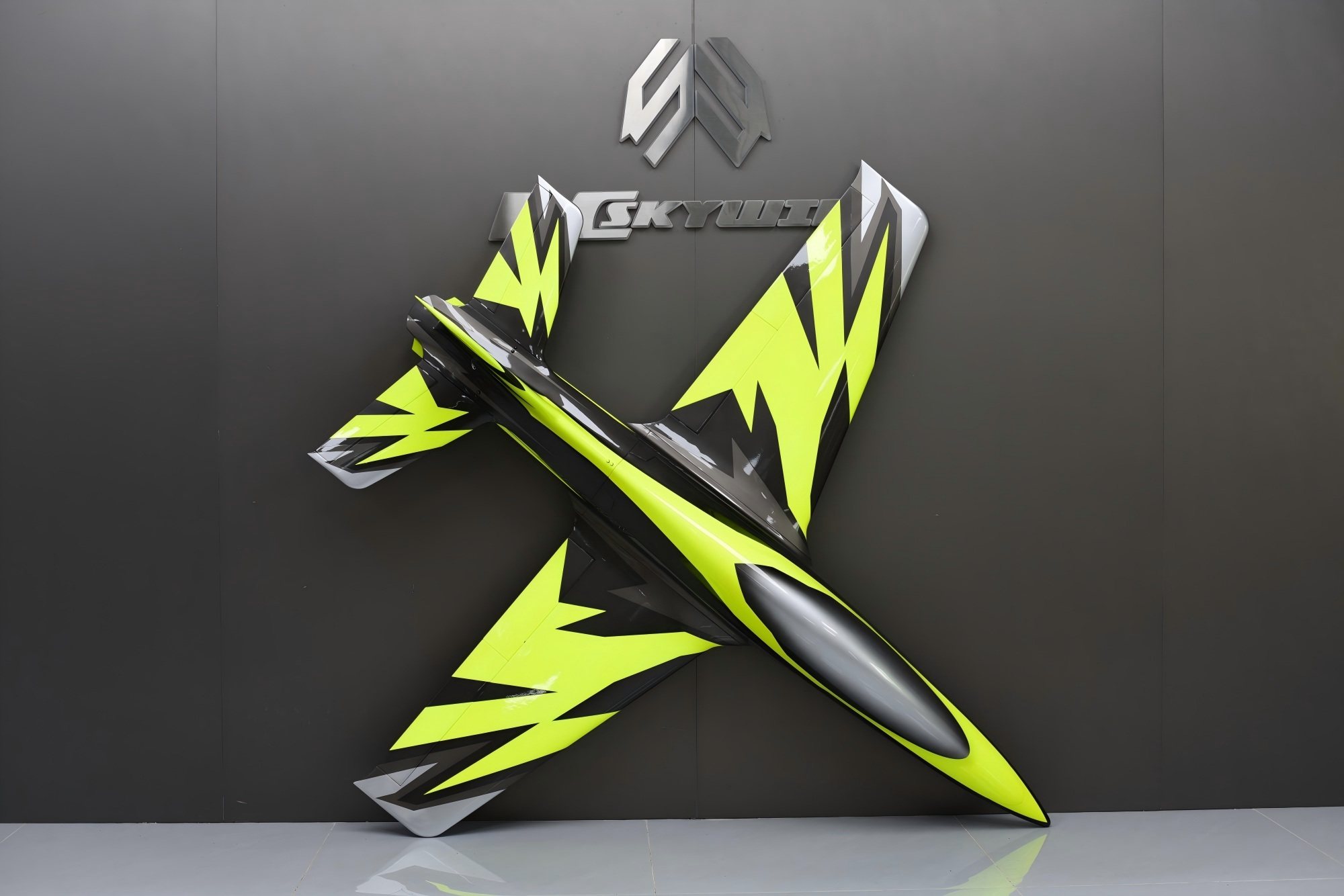

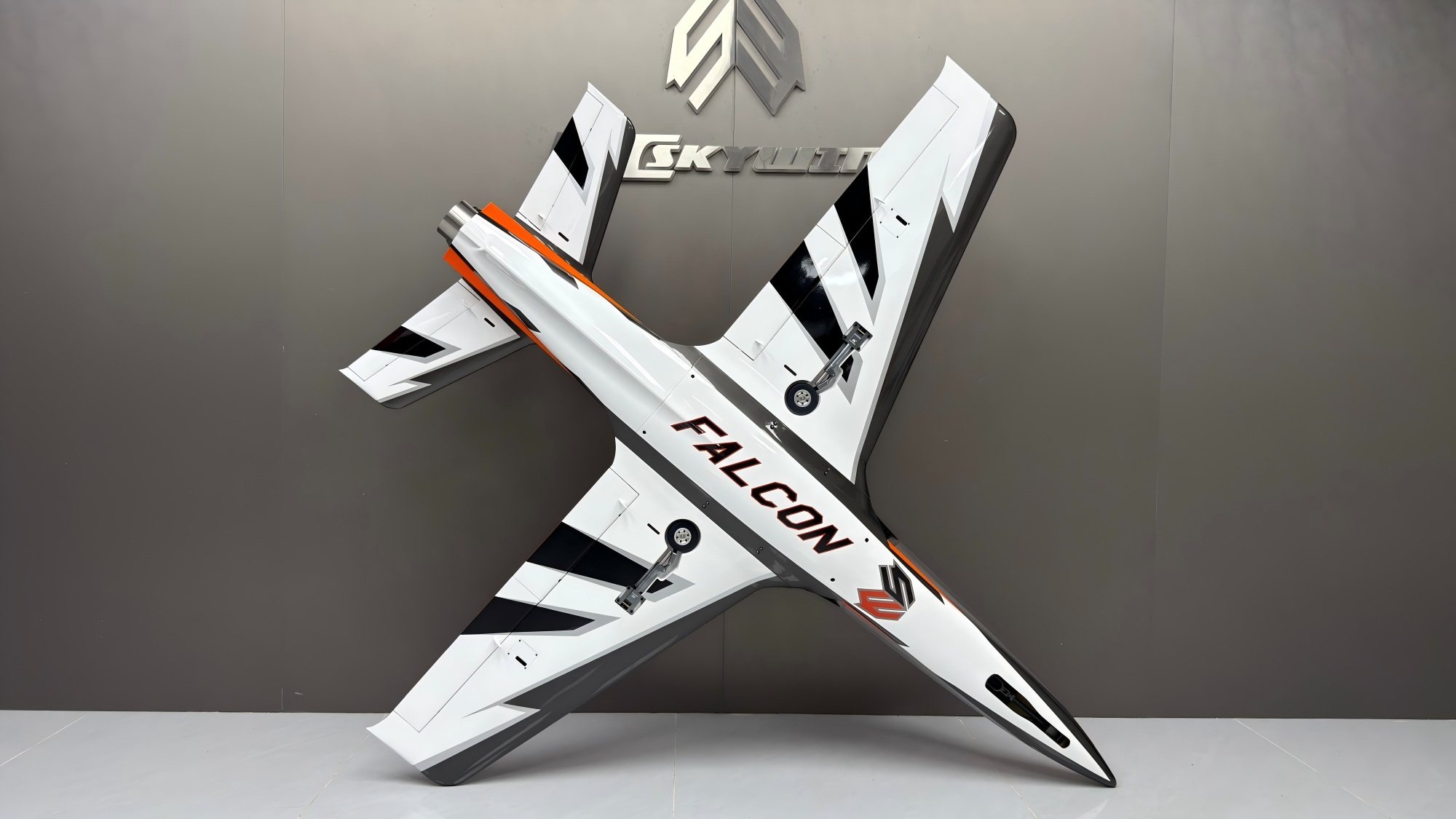

Appearance Gallery（外观展示）
