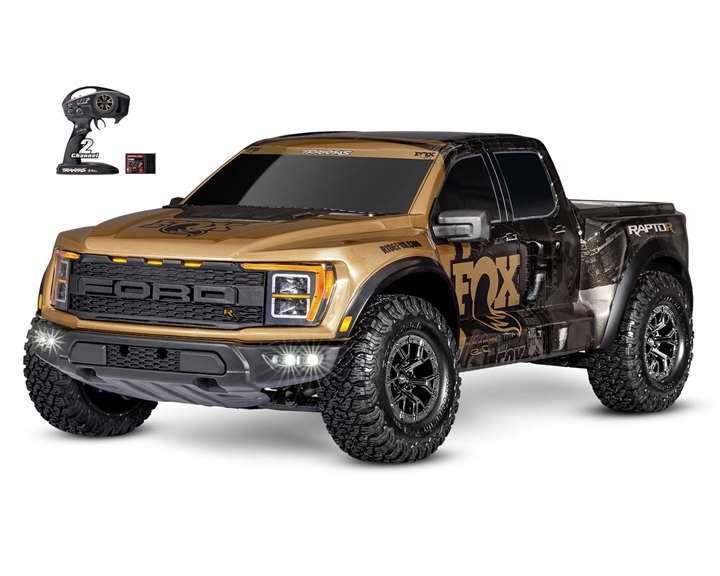

Traxxas 1/10 Ford Raptor R VXL Brushless 4x4 RTR - Fox SE, TRA101177-4FOXSE
Traxxas 1/10 Ford Raptor R VXL Brushless 4x4 RTR - Fox SE, TRA101177-4FOXSE

Price: CAD$949.99

Stock Status:Pre-Order

Item Number: TRA1011774FOXSE
Qty:

Description Completion Items


4S Capable & Durability boosting Upgrades

Unleash brutal 4S brushless power and Pro Scale® realism with the Traxxas Ford Raptor R 4X4 Ultimate, packed with over $550 in premium upgrades, this beast delivers high-speed thrills, extreme durability, and show-stopping detail right out of the box

MODEL SPECS

Side Specs
Front Specs
Name:Ford Raptor R 4X4 Ultimate
Type:Short Course Truck
Speed:60+ mph with 4S LiPo (sold separately)
Skill Level:2
Scale:1/10
Weight:6.62 pounds (3.00 kg)
Length:24.98 inches (637 mm)
Width:11.63 inches (289 mm)
Front Track:11.63 inches (289 mm)
Height:8.91 inches (226 mm)
Rear Track:11.63 inches (289 mm)

MOTOR SPECS

Motor Type:540XL 2400 Kv sensorless brushless
Weight:11.18 ounces (317 g)
Length:3.58 inches (91 mm)
Diameter:1.41 inches (36 mm)
Shaft Size:5 mm
Connector Type:Traxxas 6.5 mm bullet connectors

ESC SPECS

Velineon VXL-4s
Input Voltage (cells):2S-4S LiPo (7.4 V - 16.8 V)
Case Size:2.40″ (61 mm) x 2.09″ (53 mm) x 1.42″ (36 mm)
Weight:4.20 ounces (119 g)
BEC Voltage:Selectable 6.0 or 7.4 volts
Motor Connectors:Traxxas 6.5 mm bullet connectors
Battery Connectors:Traxxas High-Current Connectors
Thermal Protection:Two-stage thermal shutdown
Ports:RX input, auxiliary fan connector


Ford F-150 Raptor R (101177-4) Gold
Ford F-150 Raptor R (101177-4) Fox
MODEL 101177-4: Ford® Raptor R™ 4X4 Ultimate: 1/10 scale 4X4 short course truck, fully assembled, waterproof electronics, Ready-To-Race®, with TQi™ 2.4 GHz 2-channel radio system w/ wireless module, Traxxas Stability Management® (TSM), VXL-4s™ speed control, Velineon® 540XL brushless motor, and clipless painted Pro Scale® body.

What’s In The Box:

  • Raptor R with Velineon VXL-4s ESC and 2400 Kv motor
  • TQi 2.4 GHz radio system w/ wireless module
  • High quality maintenance tools

What You’ll Need:

  • Batteries

    Raptor R requires a single 2S, 3S, or 4S LiPo battery with iD®.

  • Charger

    Traxxas EZ-Peak® Live charger (2971) is recommended for easy and fast charging performance.

  • AA Alkaline Batteries

    Four AA alkaline batteries for the transmitter.



jpg
Raptor R 4X4 Ultimate (101177-4) Front Assembly Exploded View
jpg
Raptor R 4X4 Ultimate (101177-4) Body Assembly Exploded View
jpg
Raptor R 4X4 Ultimate (101177-4) Driveshafts Assembly Exploded View
jpg
Raptor R 4X4 Ultimate (101177-4) Rear Assembly Exploded View
jpg
Raptor R 4X4 Ultimate (101177-4) Chassis Assembly Exploded View
jpg
Raptor R 4X4 Ultimate (101177-4) Transmission Assembly Exploded View
