HPI 160323 1/5 Scale Baja 5B 2WD Gas Powered Desert Buggy SBK with Clear Body (No Engine)
HPI 160323  1/5 Scale Baja 5B 2WD Gas Powered Desert Buggy SBK with Clear Body (No Engine)



Alternative Views:


List Price: CAD$1,125.00
Price: CAD$1,099.98
Savings: CAD$25.02

Stock Status:Contact us for availability


Item Number: HPI160323
Qty:

Description


HPI Baja 5B - 23-32CC Gas Capable Desert Baja Buggy Kit

The HPI Baja 5B Gas Self Build Kit (SBK) 1/5 Off-Road Buggy Kit is designed to give you the classic desert racing buggy look with a modern durable drivetrain. The narrow channel chassis is made from rigid 4mm 6061 aircraft aluminum to maintain extreme stiffness and durability. The U-shaped chassis is protected at the rear with a thick plastic skid plate for additional protection to the engine and drivetrain. Choose your power source, add your electronics, and get ready for an intense RC basher or racer.

The extra durable drivetrain is held up by big bore adjustable shocks. Front and rear sway bars have been equipped to further increase the handling and stability. The torque control differentials can easily be tuned by using optional differential fluid. Delivering the power to the ground are 3-piece beadlok wheels and durable off-road racing tires. With these features and more, this is the ultimate basher or racer!

HPI BAJA 5B Gas SBK

Features:

  • Unassembled 1/5th scale gas-powered Off-Road Buggy
  • Ready for your 23-32cc RC engine
  • Ready for your electronics
  • Adjustable motor mount
  • Enclosed radio box
  • Monocoque chassis
  • Low CG for superior handling
  • Long travel suspension
  • Viscous torque oil-filled gear differential
  • All-terrain tires
  • Beadlock wheels with metal insert hubs
  • Aluminum rear shock tower
  • Hard plastic skid plates
  • Adjustable rear wing
  • Quick access to all critical maintenance points
  • Dual bellcrank steering
  • Cam type servo saver
  • Hex socket hardware
  • Gunmetal anodizing
  • Full set of rubber-sealed ball bearings
  • Enclosed receiver box

Specifications:

  • Length: 817mm
  • Width: 480mm
  • Height: 255mm
  • Wheelbase: 562mm
  • Drivetrain: RWD

Includes:

  • (1) 1/5th Scale 2WD Gas Buggy Self Build Kit with Clear Body

Needed to Complete:

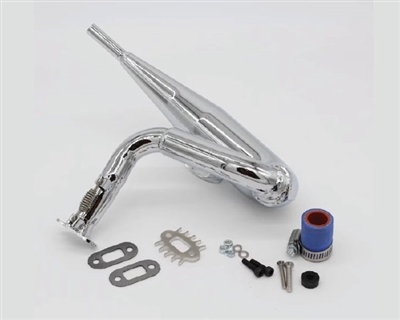

  • 23-32cc RC Engine with Muffler or Pipe

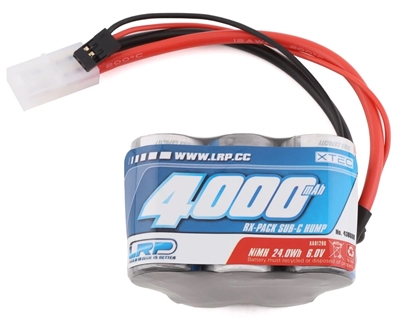

  • Hump Style Receiver Pack

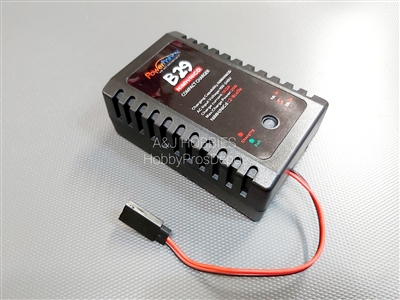

  • Compatible Battery Charger

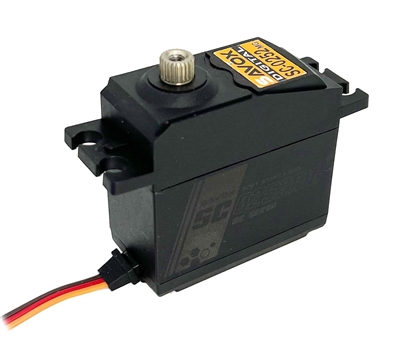

  • Large Scale Steering Servo
  • Transmitter and Receiver
  • Misc. Tools for Assembly
