Scorpion Tribunus III 14-220A ESC SBEC

Home > Airplanes >

Alternative Views:

Price: CAD$729.99

Stock Status:Pre-Order

Item Number: III_14_220

Qty:

Description

The Tribunus III 14-220A ESC marks a new era of electronic speed controllers from Scorpion Power Systems. Utilizing all Western Components and manufactured in Taiwan, this next generation ESC delivers exceptional capabilities with significant improvements over our previous models. Combining our proprietary and unique design, with our proprietary motor control algorithm, we provided one of the most reliable, safe, capable, and intelligent ESC's on the market for your hobby aircraft or industrial UAV.

Scorpion Tribunus III 14-220A ESC SBEC features

Scorpion Tribunus III 14-220A ESC SBEC Full Dimension

Specifications

Max Continuous Current*	220 Amps
Peak Current	300 Amps
Operating Voltage Range	13-61 Volts
BEC Output voltage:	OFF / 5.1V to 12.1V adjustable
Max Continuous BEC Output	15 Amps @ 8.1 V
Peak BEC Output	30 Amps/1s @ 8.1 V
On Resistance	0.55mOhms*2
ESC Body Size	46.1 x 80.7 x 32.3 mm (1.81 x 3.17 x 1.27 in)
Mounting Tab Dimensions	26.0 x 89.0mm ( 1.02 x 3.50 in) / M3 Bolt
Weight (without wires)	194g ( 6.84oz)
Weight (With wires)	294g ( 10.37oz)
Drive frequency	8kHz - 32kHz Dynamic Frequency
Cable size	8 AWG x 200mm
Max Electrical RPM	240,000RPM
*Max Continuous Current is the rating at 100% throttle for 60 seconds with 35m/s of airflow

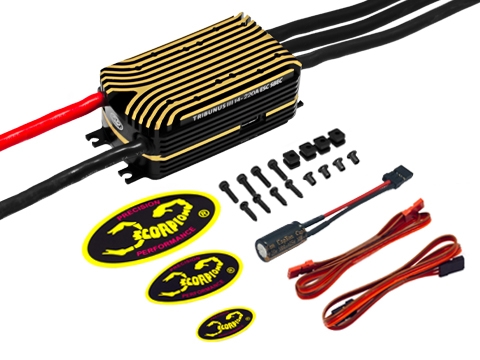

Included in the Box

1 x Tribunus III ESC
2 x BEC Cables (410mm)
1 x Mounting Hardware Pack
1 x BEC Voltage Stabilizing Capacitor

Weight including packaging

610g

Scorpion Tribunus III (14 cell) - User Guide
