DHC-2 Beaver Kenmore Air 1620mm (63.7") Wingspan - ARF - NXA1065-001
DHC-2 Beaver Kenmore Air 1620mm (63.7") Wingspan - ARF - NXA1065-001

Alternative Views:


Price: CAD$449.99

Stock Status:Pre-Order


Item Number: NXA1065001
Qty:

Description Completion Items

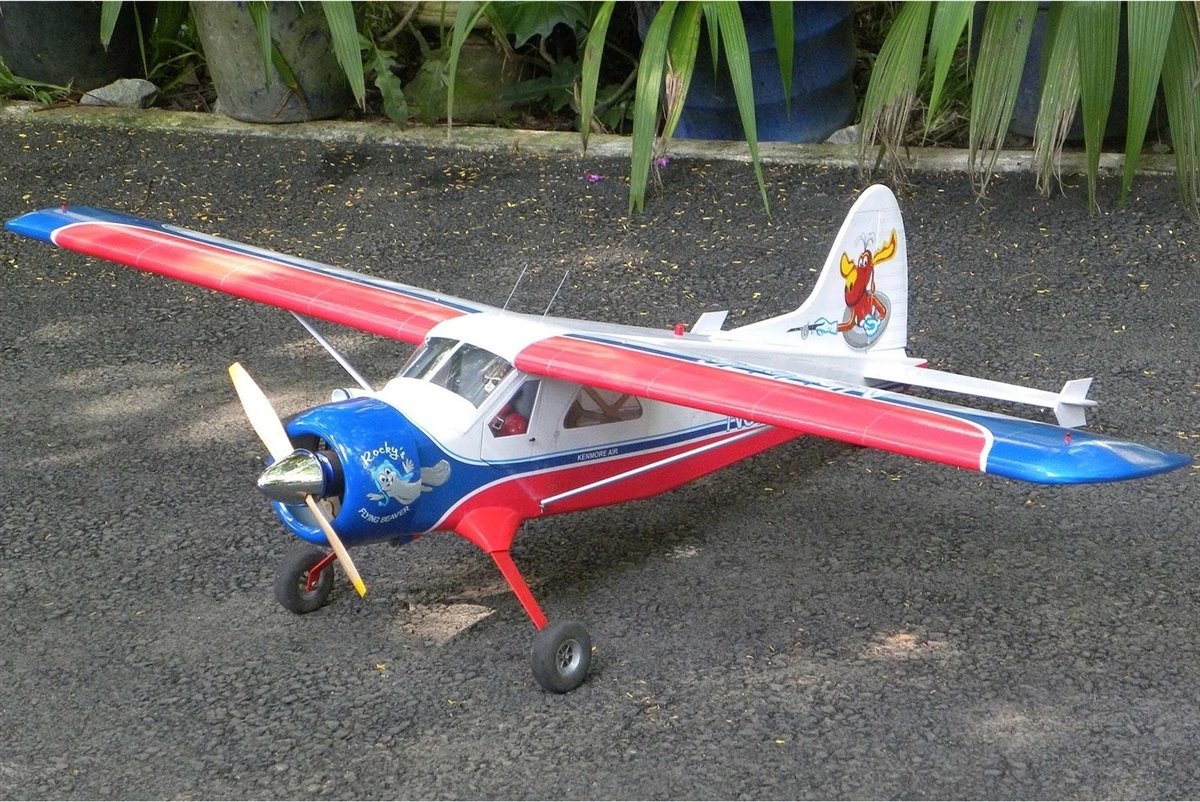

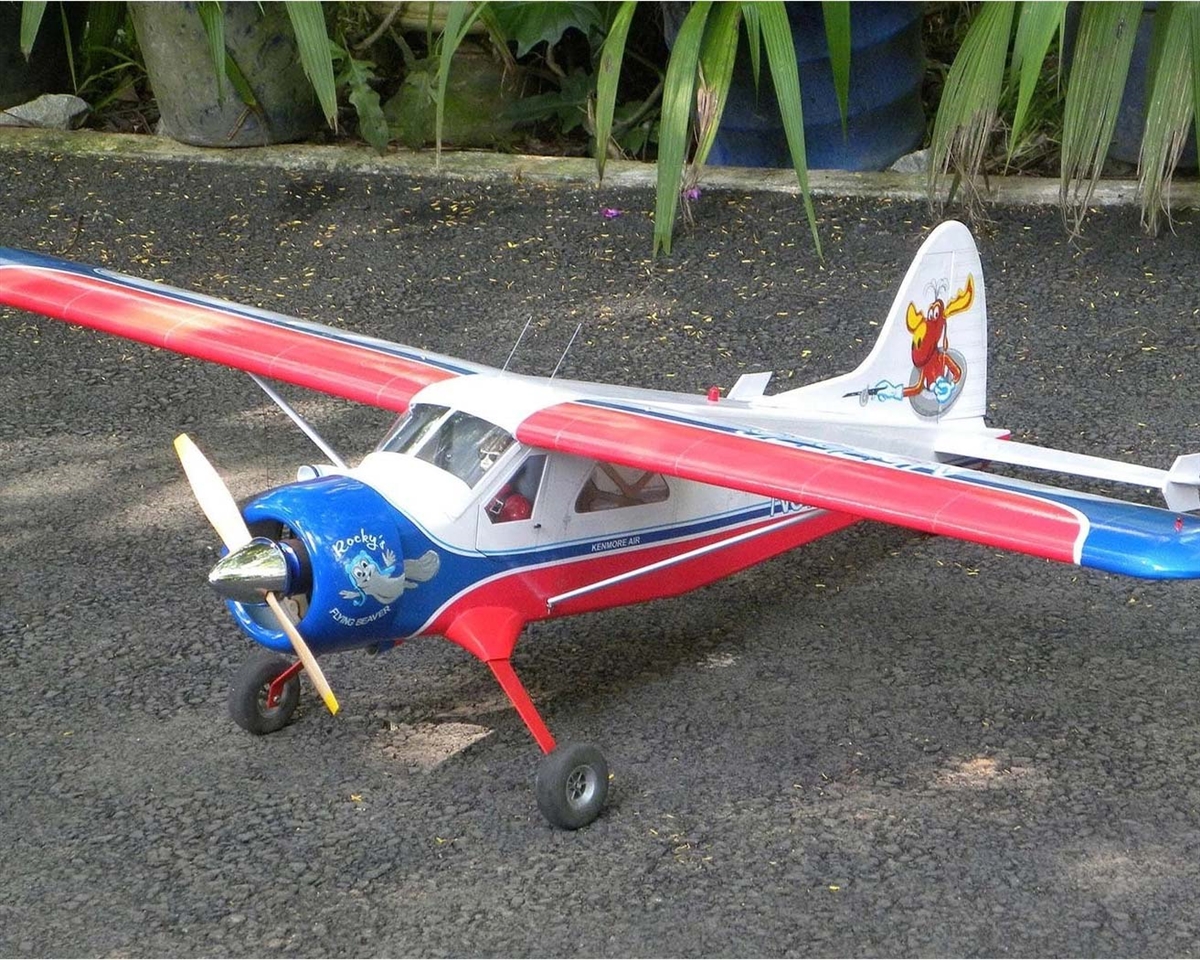

DHC-2 Beaver Kenmore Air 1620mm (63.7") Wingspan - ARF from Nexa - NXA1065-001

The Nexa DHC-2 Beaver Kenmore Air is based on the single-engined, high-wing, propeller-driven STOL aircraft designed and built by de Havilland Canada. Commonly used as a bush plane, it has been deployed in a broad array of applications, ranging from cargo/passenger transport to crop dusting and aerial topdressing to civilian aviation.

The Nexa DHC-2 Beaver is a .46 size electric STOL aircraft with a 1620mm wingspan, constructed primarily from balsa wood and covered in the Kenmore Air livery. This ARF requires assembly and installation of your choice of servos and power system, and includes two piece wing with aluminum wing joiner, fiberglass cowl and operational pilot door. A large battery tray provides ample space for any size battery you require.

Features:

  • Kenmore Air livery for scale appeal and added detail
  • Complete Balsa and lite-ply construction for rigidity and durability
  • Two piece wing with aluminum wing joiner for easy transport

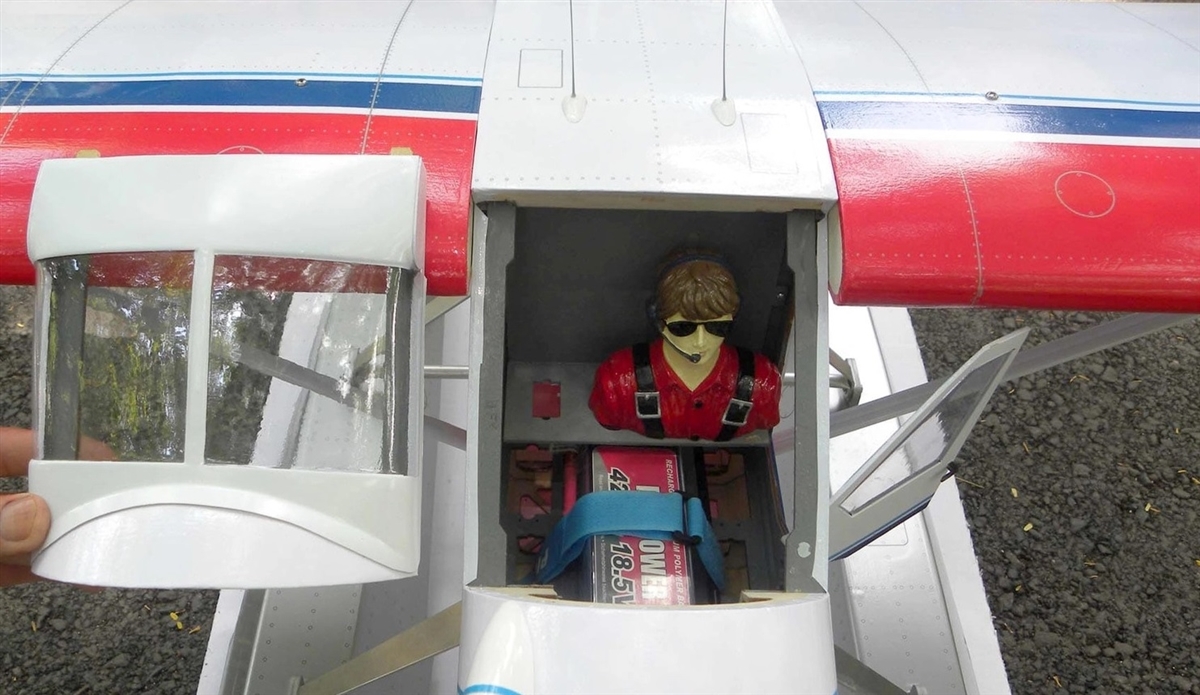

  • Large battery tray provides ample space for any size battery you require
  • Functional pilot door and well appointed throughout
  • Fiberglass cowling for strength and durability
  • All control surfaces come out of the box pre-hinged and installed for convenience

Includes:

  • Nexa DHC-2 Beaver Kenmore Air 1620mm (63.7") Wingspan - ARF
  • Plywood seat
  • Fibreglass cowling
  • Electric motor mount
  • Aluminium landing gear & wheels
  • Aluminium wing joiner
  • Wing struts
  • Engine mounts
  • Spinner
  • Fuel tank
  • Decals and all hardware

Requires (Electric):

  • 7 Channel radio
  • 7 Channel receiver
  • Brushless outrunner motor
  • 85 Amp brushless ESC
  • 3x standard servos for ailerons, elevator and rudder
  • 4 Cell 14.8V 5000 mAh LiPo Battery
  • Electric propeller
  • 4 Cell compatible battery charger

Requires (Gas):

  • 2 stroke engine
  • 4x standard servos for ailerons, elevator, throttle and rudder
  • Receiver battery: 2S 2000mAh LiFe Battery - we recommend
  • Gas Propeller: 11x7 - we recommend
Customer Note

Nexa ARF models are constructed out of balsa wood and plywood. These are not foam models. The assembly of balsa wood ARF aircraft requires basic model building skills including the installation of servos, ESC, and motor (or gas engine).

Product Specifications:

ageAGE LEVEL : 14 and up
ageSKILL LEVEL : Intermediate
ageBUILD TIME : 6+ Hours

Model Scale

1/6.6

Wingspan

1620mm / 63.7in

Length

1115mm / 43.9in

Weight

3400g / 120oz

CG (Center of Gravity)

70-75mm from the leading edge of the wing root

Power System

650W brushless outrunner motor (required)

Electronic Speed Control

85A (required)

Propeller / EDF

13x8 2-blade for electric, 11x6 gas (required)

Servos

  • 3x 45g standard servos for ailerons
  • 2x 17g standard servos for elevator and rudder

Landing Gear

Fixed (included)

Required Battery

5 Cell 18.5V 4000 LiPo battery (required)

Required Radio

5+ Channel (required)

Ailerons

Yes

Elevator

Yes

Rudder

Yes

Flaps

No

Lights

No

Hinge Type

Nylon

Material

Balsa and light plywood

Skill Level

Intermediate

Build Time

6+ Hours

Recommended Environment

Outdoors
