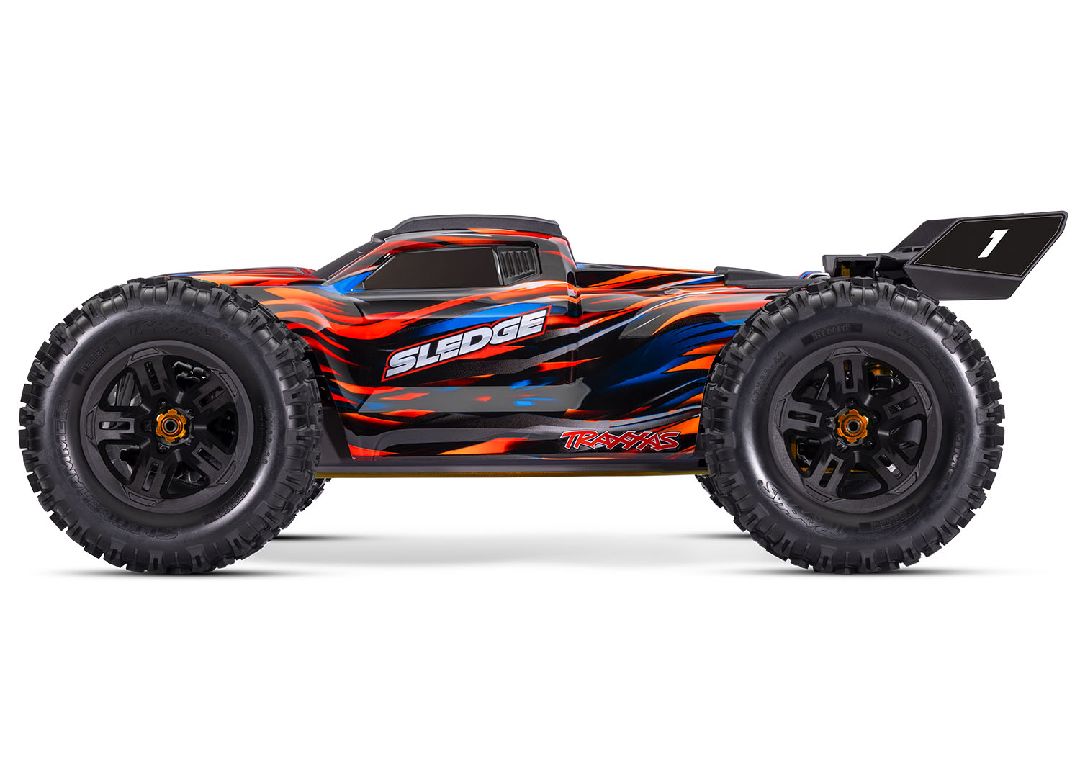

Traxxas Sledge: 1/8 Scale 4WD Brushless Monster Truck - Orange

Home > Cars & Trucks > All Cars & Trucks >

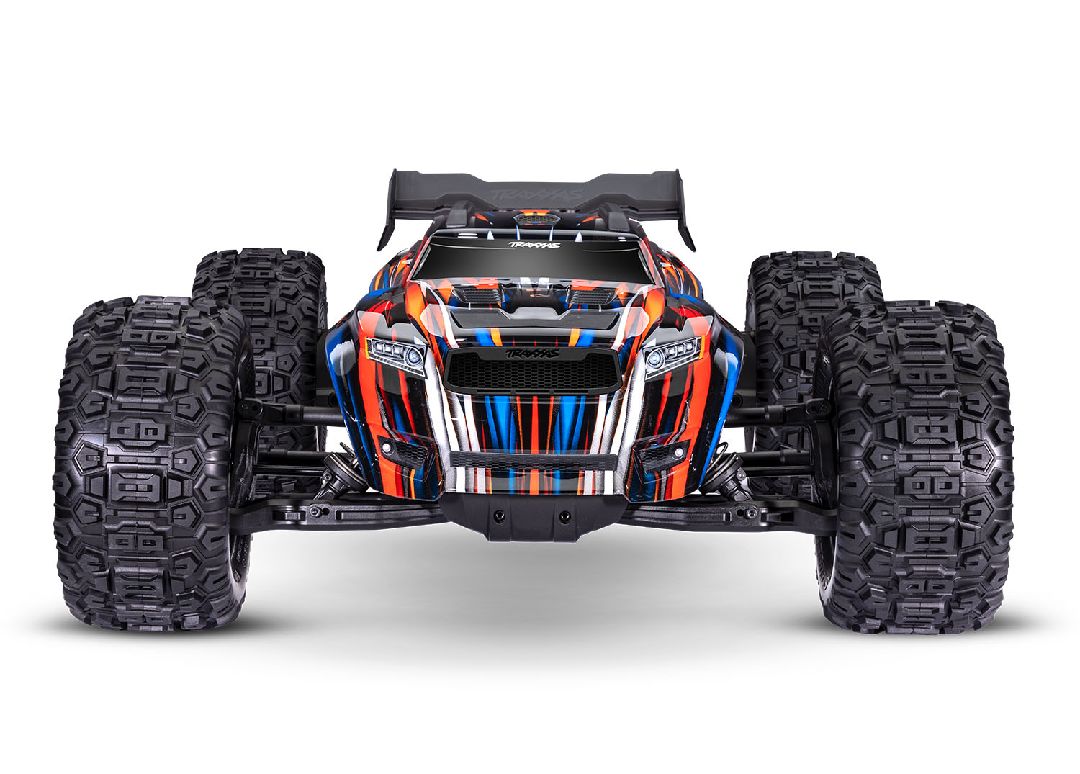

Traxxas Sledge: 1/8 Scale 4WD Brushless Monster Truck - Orange - TRA950964ORANGE

Price: CAD$1,189.99

Sale Price: CAD$1,159.99

Savings: CAD$30.00

Stock Status:Pre-Order

Item Number: TRA95096-4ORANGE

Qty:

Description

See The All-New Traxxas Sledge

Redefining 1/8 Scale Off-Road

Traxxas built Sledge™ with one goal: to redefine 1/8 scale off-road. Sledge is the result of thousands of real-world testing hours and hundreds of revisions. A massive steel drivetrain, ferocious 6s power, and race-inspired handling leave everything else in the dust.

MODEL SPECS

Name:	Sledge Belted
Type:	Monster Truck
Speed:	70+ mph with 6S LiPo battery and optional gearing
Skill Level:	4
Scale:	1/8
Weight:	12.74 lbs (5.77 kg)
Length:	23.78 inches (604 mm including wing)
Width:	18.10 inches (459 mm)
Front Track:	18.10 inches (459 mm)
Rear Track:	18.10 inches (459 mm)
Height:	8.43 inches (214 mm)

Wheelbase:	15.10 inches (384 mm)
Center Ground Clearance:	1.95 inches (50 mm)
Driveline:	Shaft-driven 4WD
Transmission:	Single speed
Differential Type:	Sealed, hardened steel bevel, limited slip
Gear Pitch:	1.0 metric pitch
Steering Servo:	2275 digital metal-gear waterproof (347 oz-in)
Radio System:	TQi™ 2.4 GHz 2-channel transmitter with TSM® receiver
Battery Compartment Specs:	181 mm X 54 mm X 45 mm

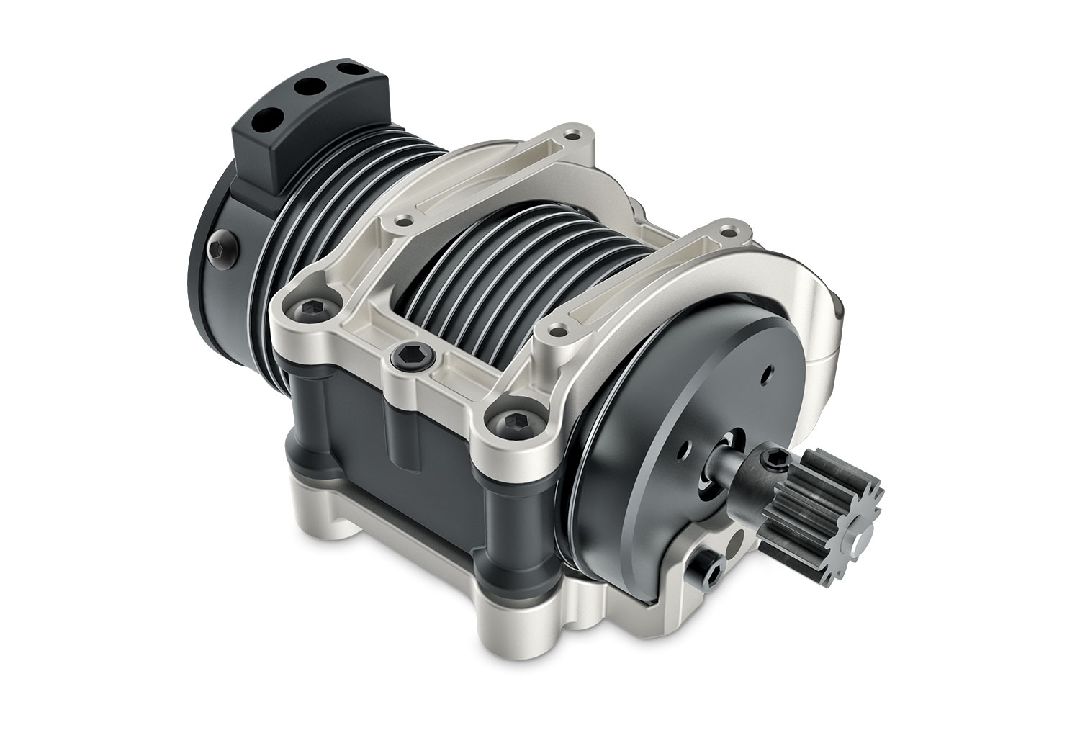

MOTOR SPECS

Name:	4-pole 2000 Kv
Type:	sensorless brushless
Weight:	14.32 oz (406 g)
Length:	2.97 inches (76 mm)
Diameter:	1.65 inches (42 mm)
Shaft Size:	5 mm
Connector Type:	Traxxas 6.5 mm bullet connectors

ESC SPECS

Name:	VXL-6s
Type:	Brushless
Case Size:	2.28” (58 mm) x 2.83” (72 mm) x 1.81” (46 mm)
Weight:	7.30 oz (207 g)
Motor Connectors:	6.5 mm bullet connectors
Battery Connectors:	Traxxas High-Current Connectors

MODEL 95096-4: Sledge 1/8 scale 4WD brushless monster truck. Fully assembled, Ready-To-Race®, with TQi™ 2.4 GHz radio system, VXL-6s brushless power system, belted Sledgehammer® tires, and ProGraphix® clipless body.

What’s In The Box:

Sledge, Ready-To-Race® monster truck with Traxxas 2000 Kv brushless motor
VXL-6s waterproof electronic speed control with integrated telemetry
TQi 2.4 GHz radio system
High quality maintenance tools
Jumper plug (for 4S battery use)

What You’ll Need:

LiPo Batteries

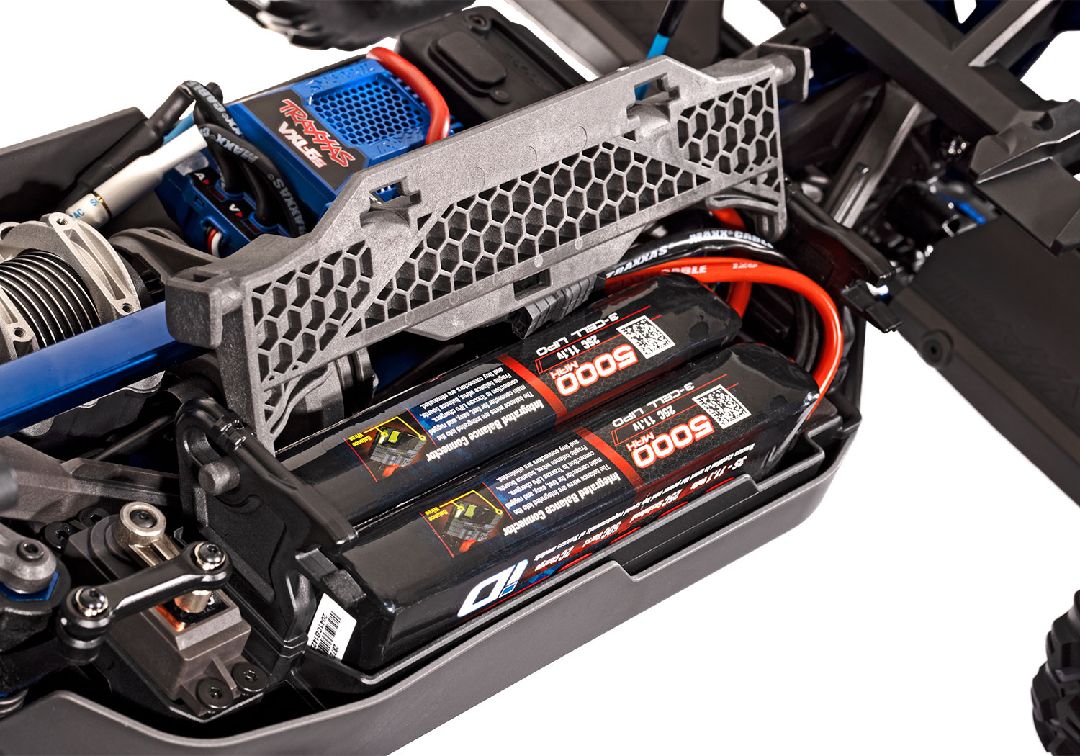

Traxxas recommends dual 5000 mAh 3-cell 11.1 V Power Cell LiPo batteries for maximum performance. Dual 7600 mAh 7.4 V LiPo batteries or a single 6700 mAh 14.8 V LiPo battery will operate the vehicle with reduced performance. NiMH batteries are not supported.
Charger
EZ Peak Live Dual 3S LiPo Charger with iD®
AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.

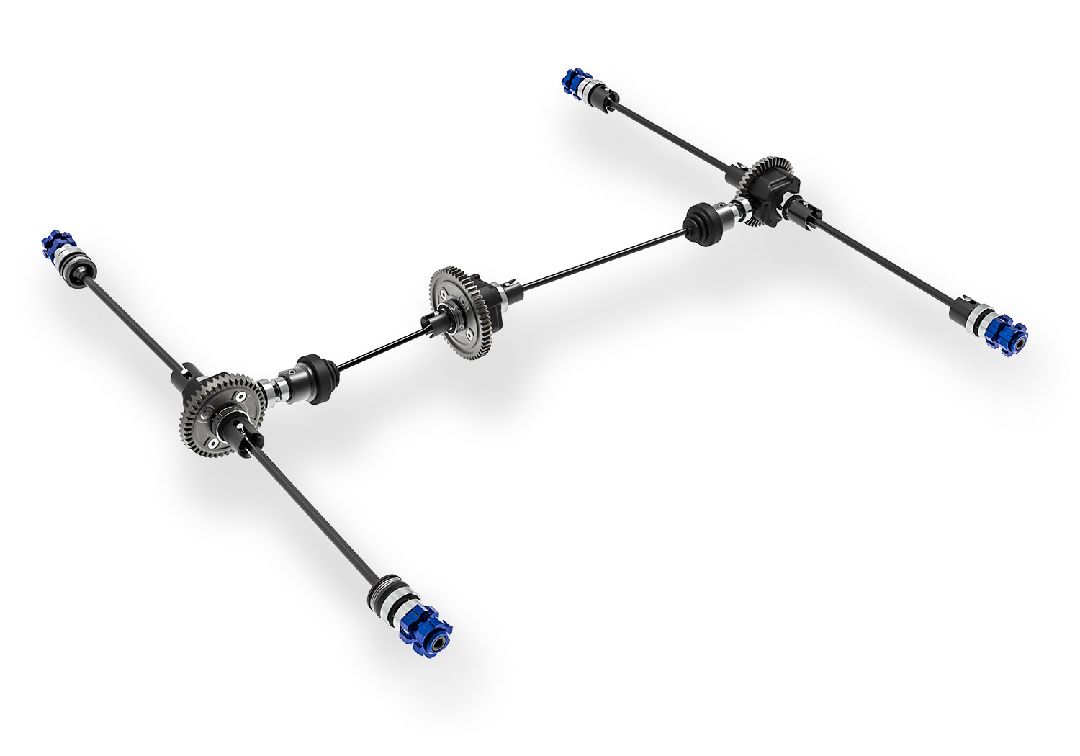

Sledge (95076-4, 95096-4) Driveshaft Assemblies - Center

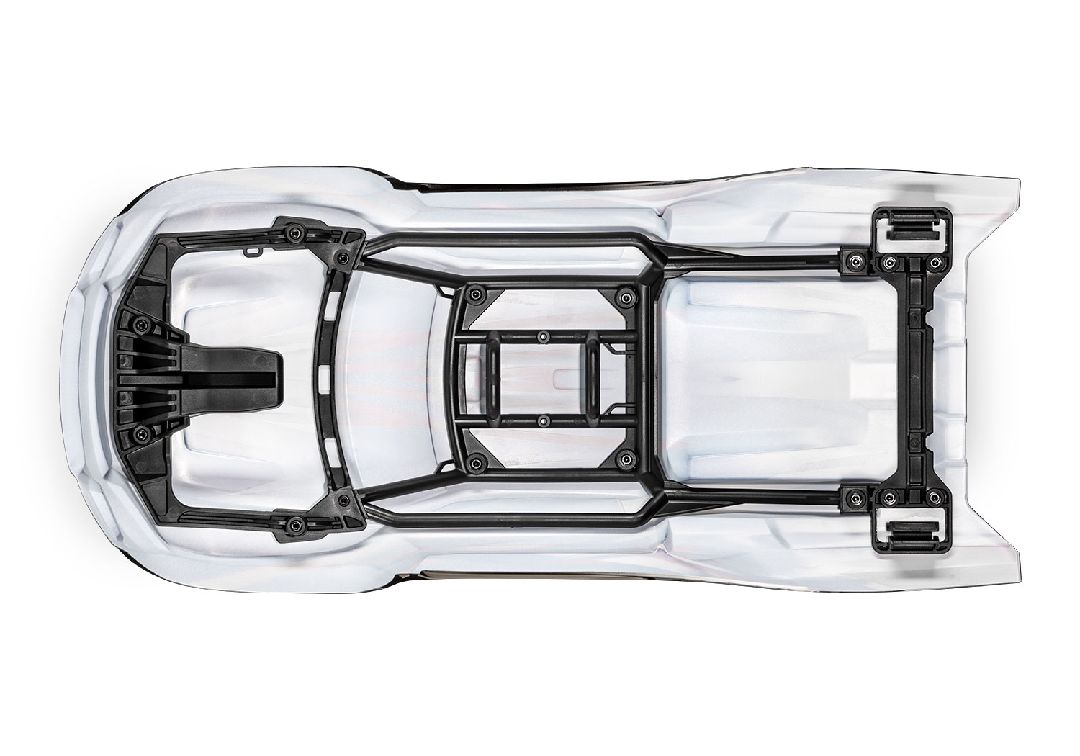

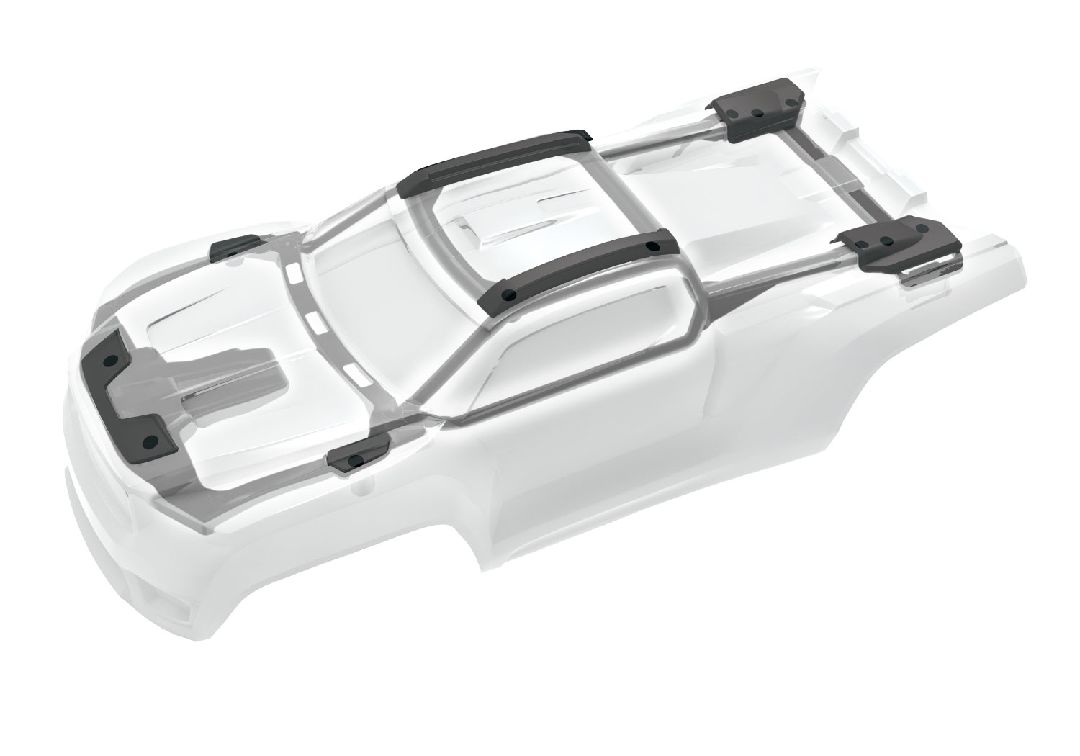

Sledge (95096-4) Body Assembly Exploded View

Sledge (95076-4, 95096-4) Driveshaft Assemblies - Front

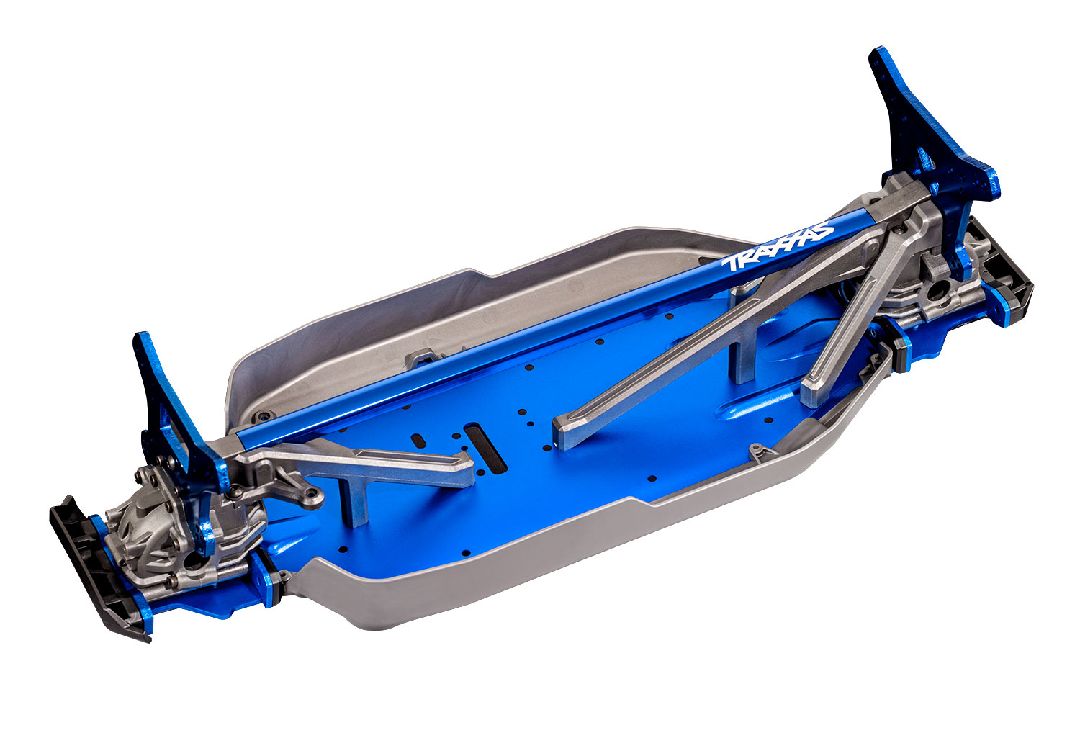

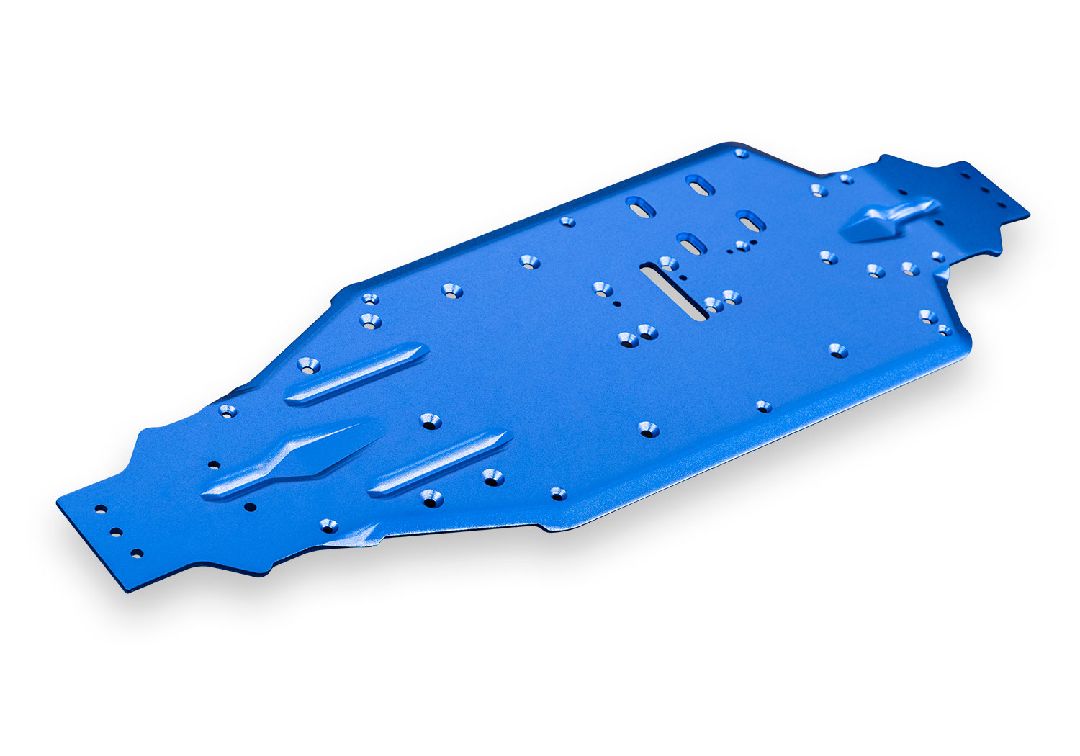

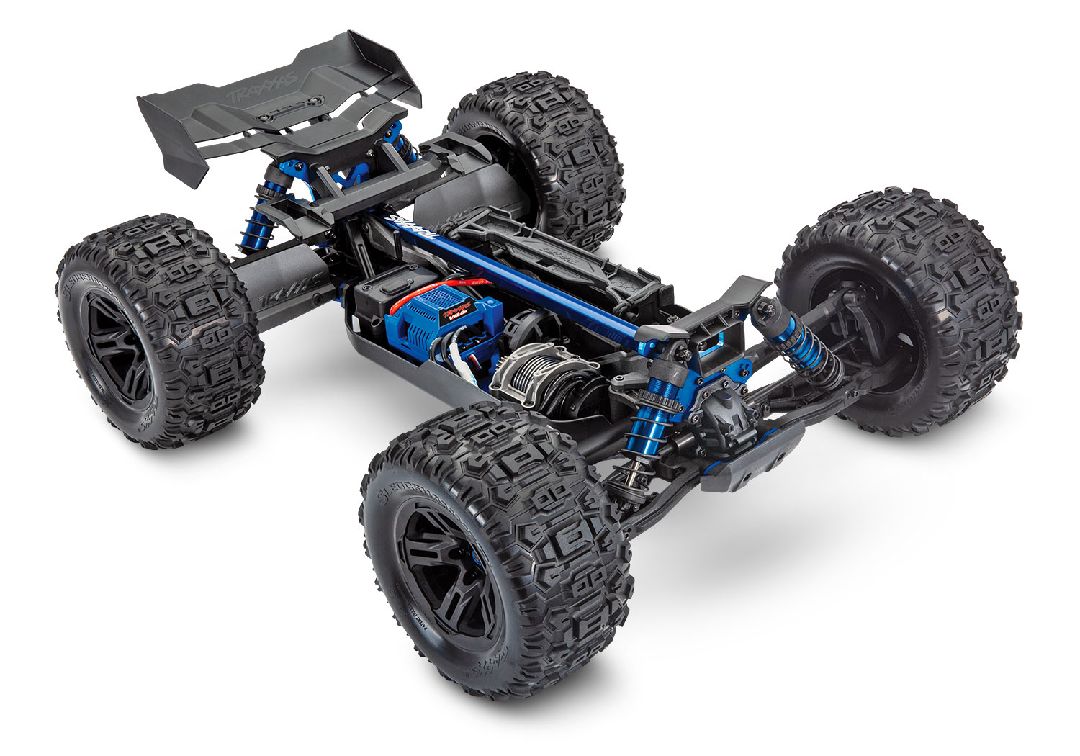

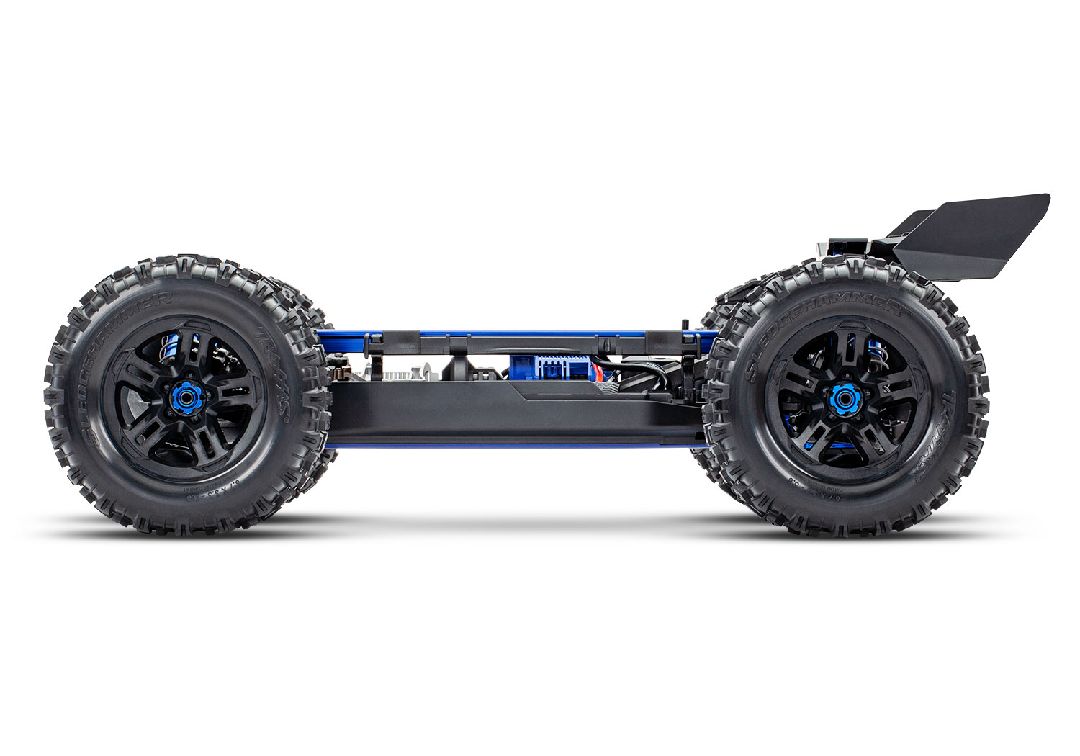

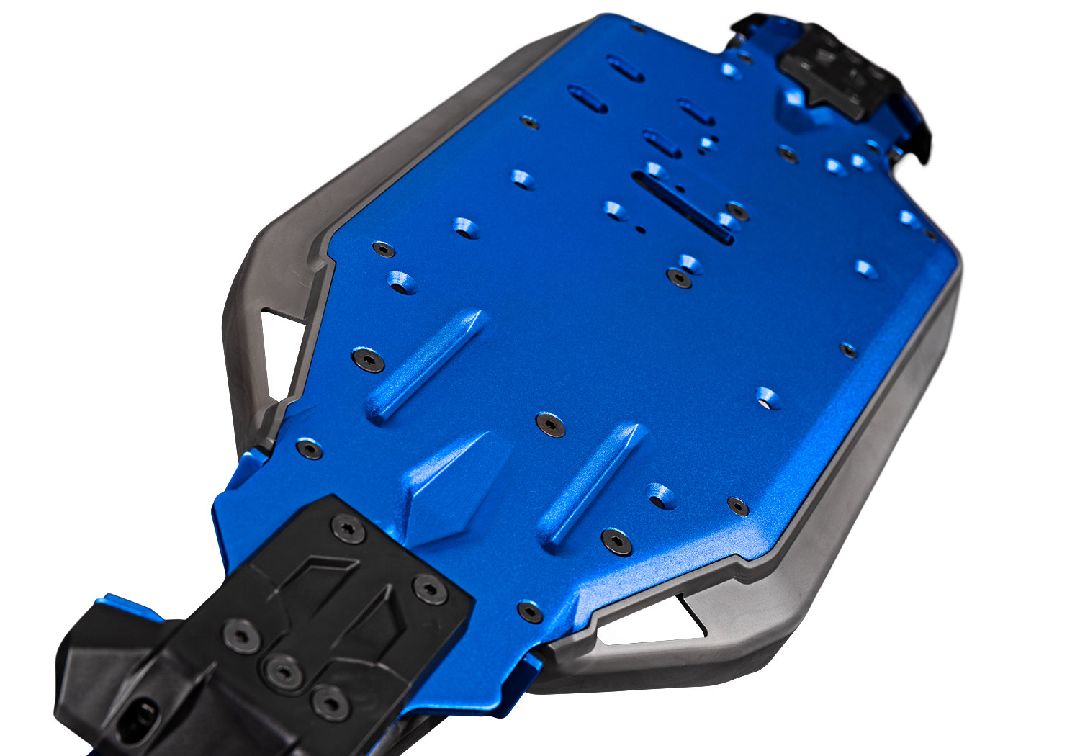

Sledge (95096-4) Chassis Assembly Exploded View

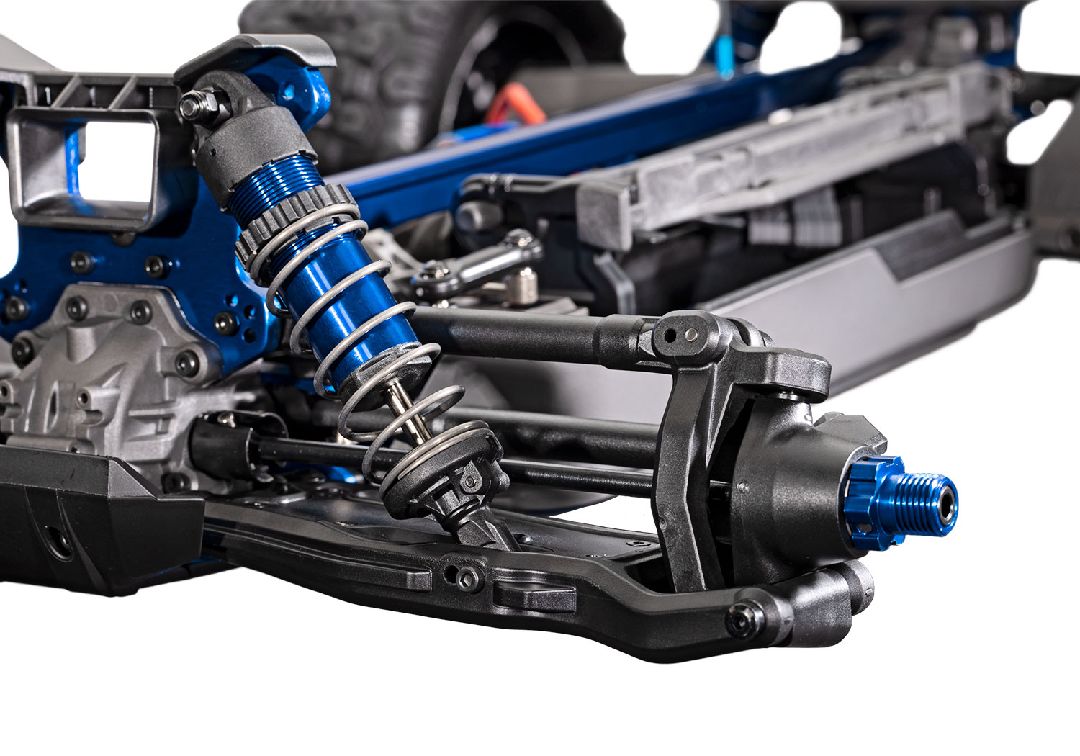

Sledge (95096-4) Front Assembly Exploded View

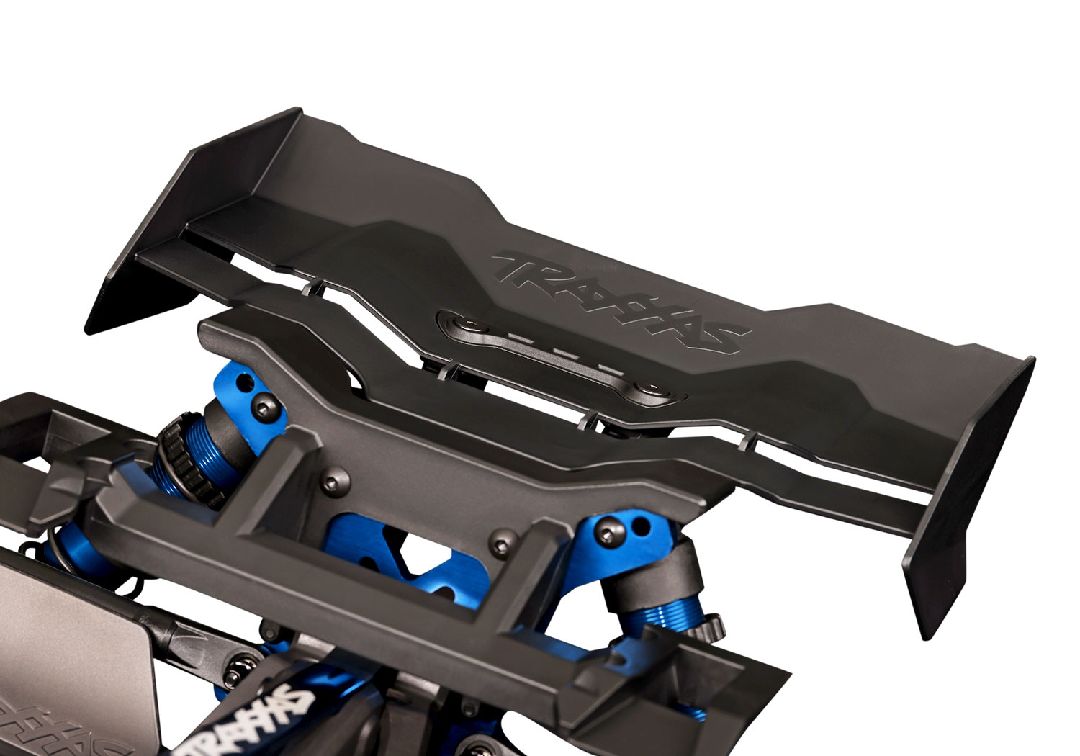

Sledge (95096-4) Rear Assembly Exploded View

Sledge (95076-4, 95096-4) Driveshaft Assemblies - Rear
