Traxxas Ford Fiesta ST 4x4 VXL Brushless 1/10 RTR AWD Rally Car (Orange) w/TQi 2.4GHz Radio & TSM

Home > Cars & Trucks > All Cars & Trucks >

Traxxas Ford Fiesta ST 4x4 VXL Brushless 1/10 RTR AWD Rally Car (Orange) w/TQi 2.4GHz Radio & TSM - TRA74276-4-ORNG

List Price: CAD$659.99

Price: CAD$629.99

Savings: CAD$30.00

Stock Status:Pre-Order

Item Number: TRA74276-4ORANGE

Qty:

Description

PARTS & Upgrades

MODEL SPECS

Name:	Ford Fiesta ST Rally VXL
Type:	On-Road Car
Skill Level:	2
Scale:	1/10
Weight:	6.11 pounds (2.77 kg)
Length:	21.0 inches (535 mm)
Width:	11.0 inches (281 mm)
Front Track:	11.0 inches (281 mm)
Rear Track:	11.0 inches (281 mm)
Height:	8.1 inches (206 mm)

Wheelbase:	12.8 inches (324 mm)
Center Ground Clearance:	0.82 inches (21 mm)
Driveline:	Shaft-driven 4WD
Differential Type:	Hardened steel bevel, sealed, limited slip
Gear Ratio (Internal):	19.69:1
Gear Pitch:	32 pitch
Steering Servo:	2075 high-torque waterproof
Radio System:	TQi™ 2.4 GHz 2-channel radio
Battery Compartment Specs:	165 mm X 50 mm X 23/26 mm

MOTOR SPECS

Name:	Velineon 3500 Kv
Motor Type:	sensorless brushless
Weight:	9.24 ounces (262 g)
Length:	2.20 inches (56 mm)
Diameter:	1.41 inches (36 mm)
Shaft Size:	3 mm
Connector Type:	3.5 mm bullet

ESC SPECS

Name:	Velineon VXL-3s
ESC Type:	Brushless
Case Size:	1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm)
Weight:	3.84 ounces (109 g)
Motor Connectors:	3.5 mm bullet
Battery Connectors:	Traxxas High-Current Connector
Power Wire:	12 gauge Maxx® Cable

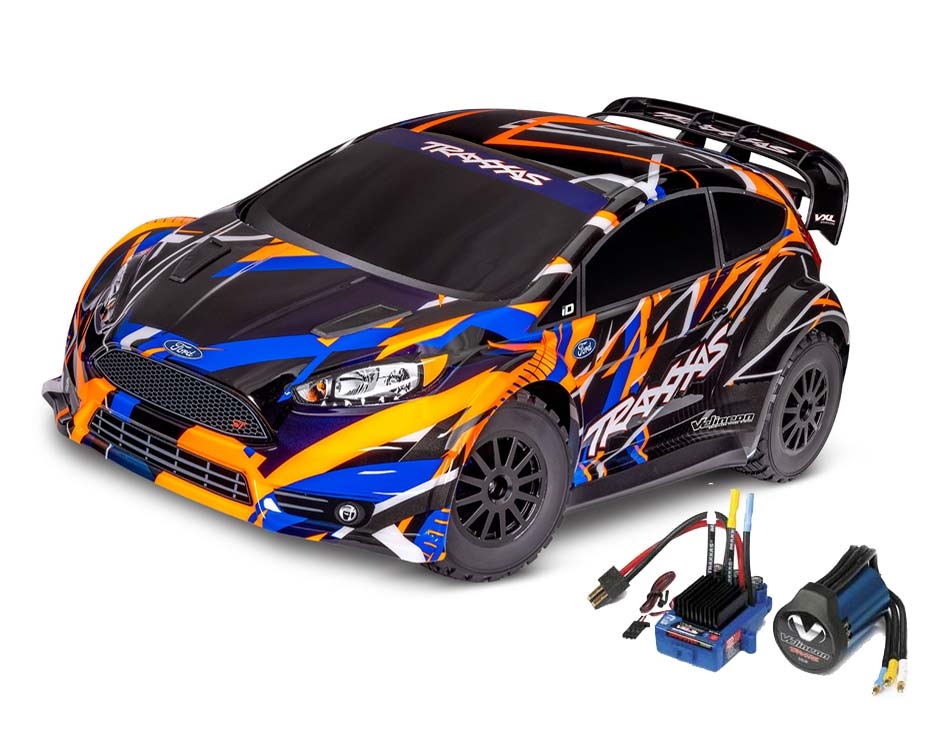

MODEL 74276-4: Ford® Fiesta® ST Rally VXL: 1/10 scale AWD rally car, fully-assembled, waterproof electronics, Ready-To-Race®, with TQi™ 2.4 GHz 2-channel radio system, Velineon® brushless power system, and clipless painted body. Requires: battery and charger.

What’s In The Box:

Fiesta ST Rally with VXL-3s ESC and 3500 Kv motor
Quick Start Guide
TQi 2.4 GHz radio system
High quality maintenance tools
Optional speed gear

What You’ll Need:

Batteries
Fiesta ST Rally accepts a wide variety of NiMH (6–7 cell) and LiPo (2s–3s) batteries
Charger
The Traxxas EZ-Peak® charger 2970 is recommended for easy and fast charging performance.
AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.

Ford Fiesta ST Rally VXL (74276-4) Transmission Assembly Exploded View

Ford Fiesta ST Rally VXL (74276-4) Chassis Assembly Exploded View

Ford Fiesta ST Rally VXL (74276-4) Driveshafts Assembly Exploded View

Ford Fiesta ST Rally VXL (74276-4) Front Assembly Exploded View

Ford Fiesta ST Rally VXL (74276-4) Rear Assembly Exploded View

Ford Fiesta ST Rally VXL (74276-4) Body Assembly Exploded View
